Component Inspection

P0336 Crankshaft Position Sensor \'A\' Circuit Range/Performance

Inspection/Repair - Component Inspection

Component Inspection

Check CMPS, CKPS
1. IG KEY "OFF".

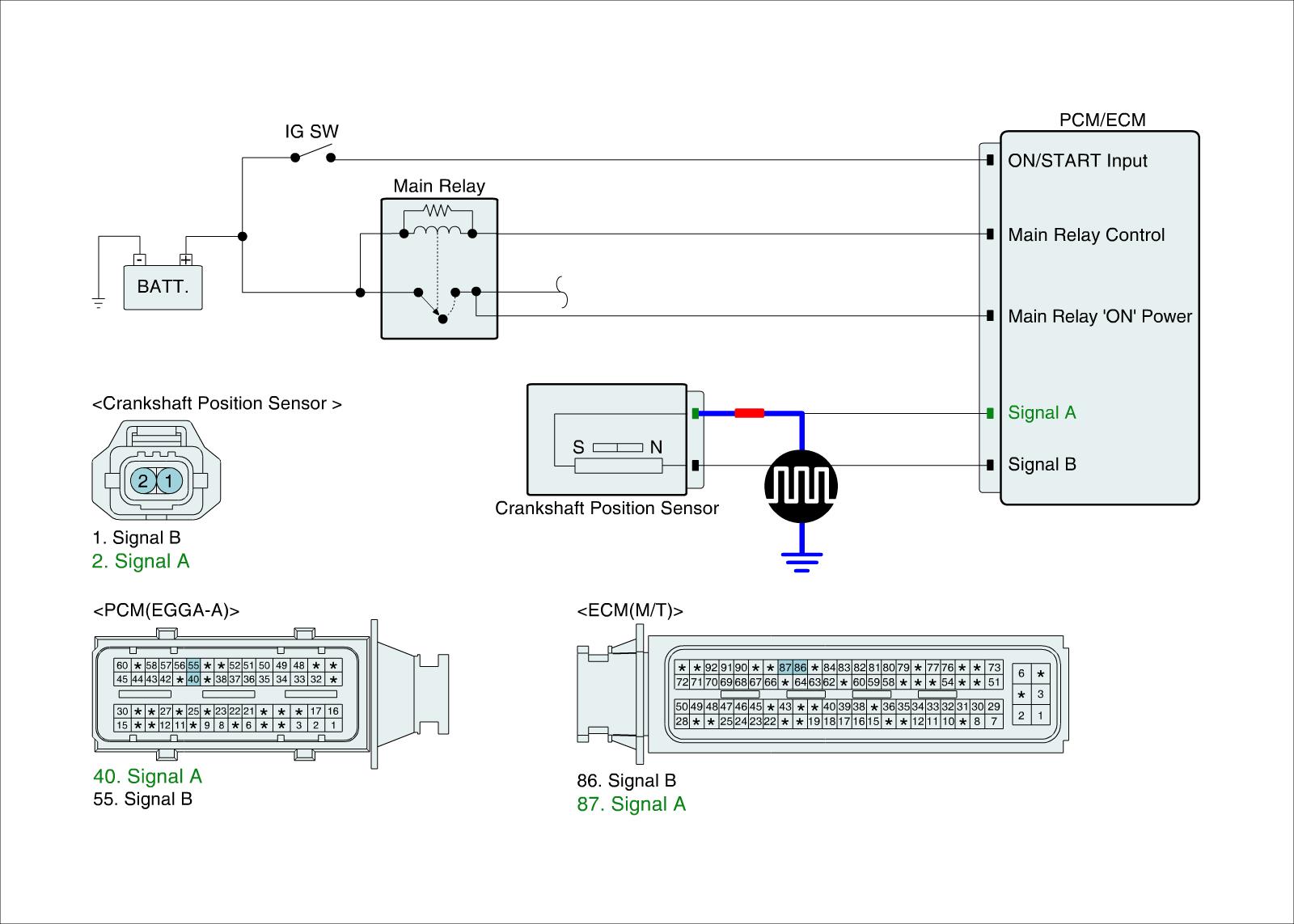

2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with signal terminal of CKPS harness connector.
3. Engine start. And check the signal waveforms.

Specification : Refer to Signal Waveform & Data

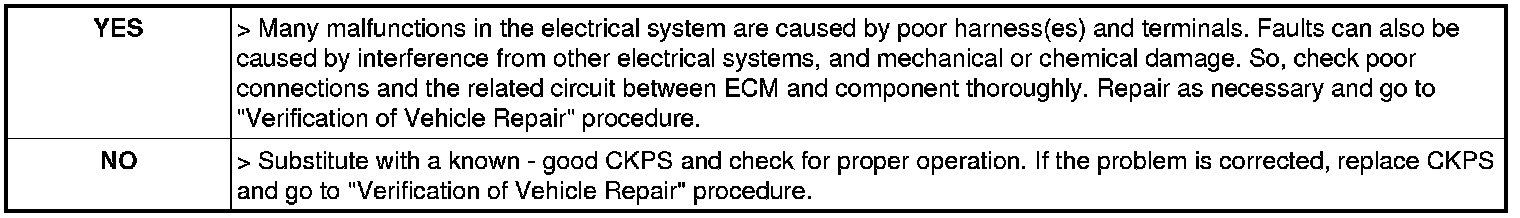

4. Is the measured signal waveforms of CKPS normal?
