Scantool Diagnostics

P0123 Throttle Position Sensor 1 Signal Circuit High Input

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC)
2. Warm up the engine to normal operating temperature.
3. Monitor the "TPS" parameters on the GDS.

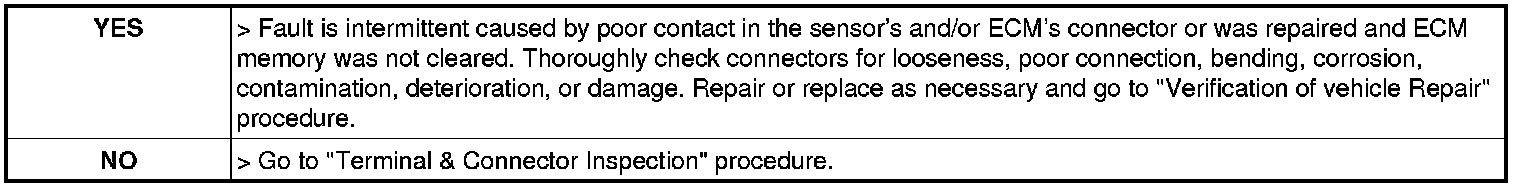

4. Are the parameters displayed correctly?
