Component Inspection





P0118 Engine Coolant Temperature Circuit High Input

Inspection/Repair - Component Inspection

Component Inspection

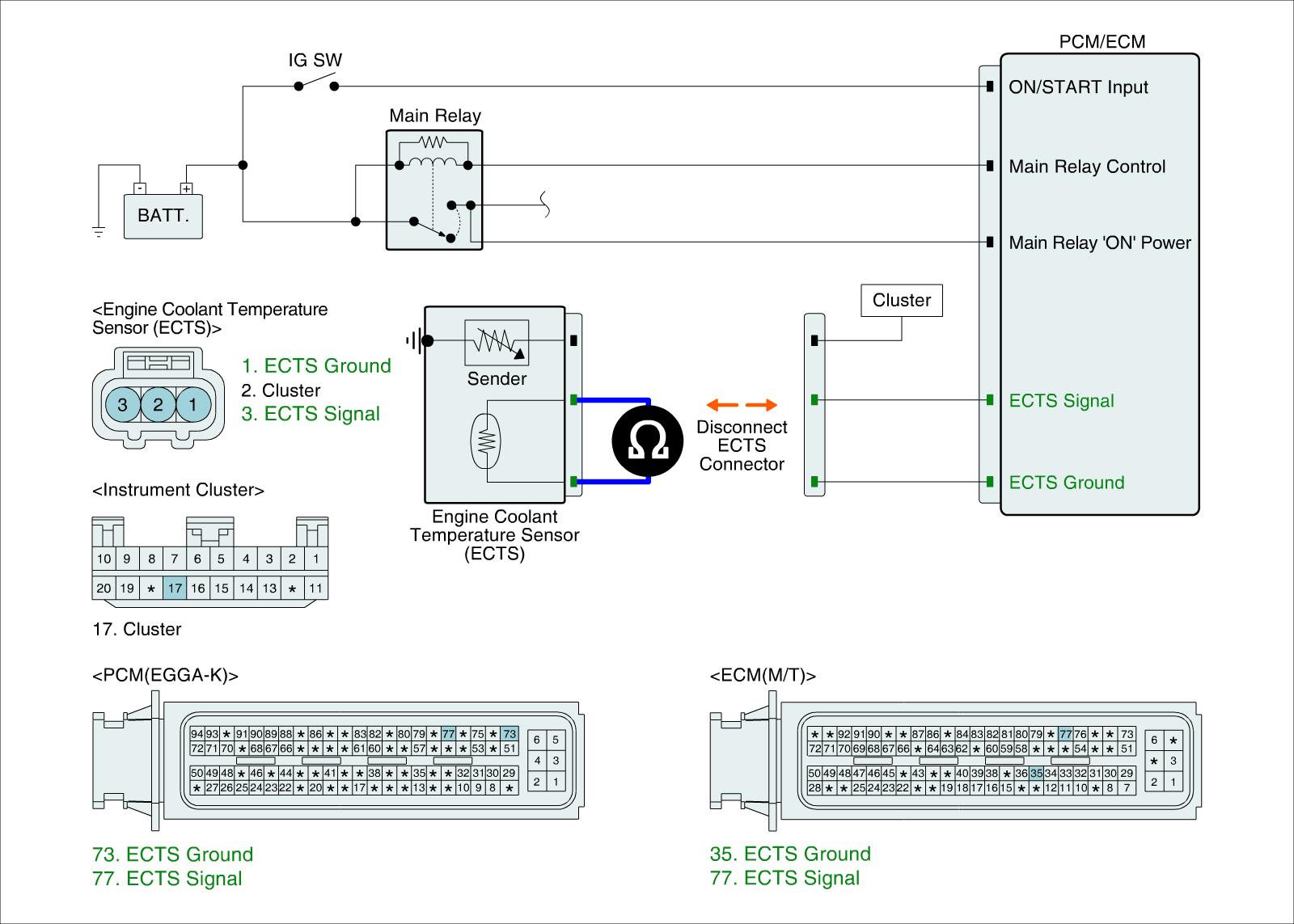

Check ECTS resistance
1. IG KEY "OFF".
2. Disconnect ECTS connector.
3. Measure resistance between signal and ground terminal of ECTS connector (Component Side)

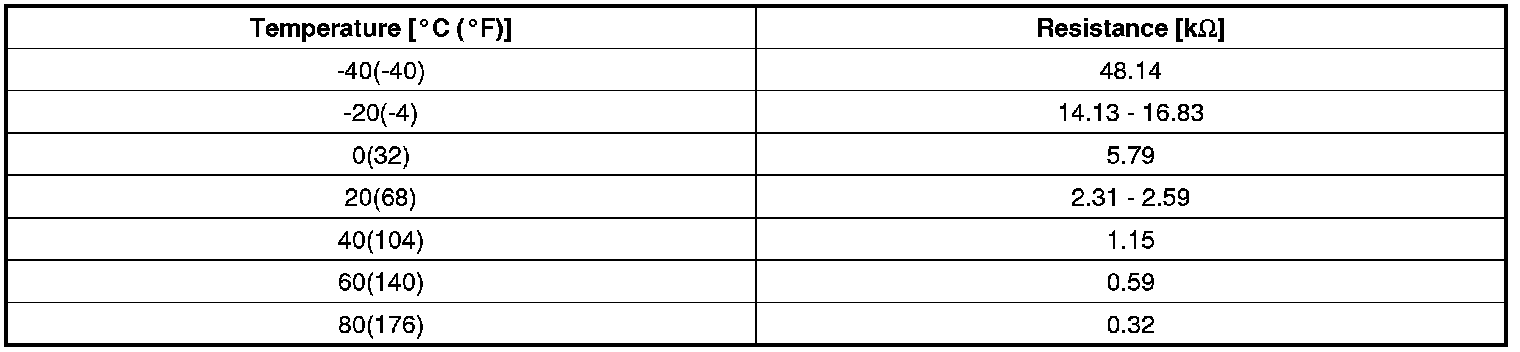

Specification :

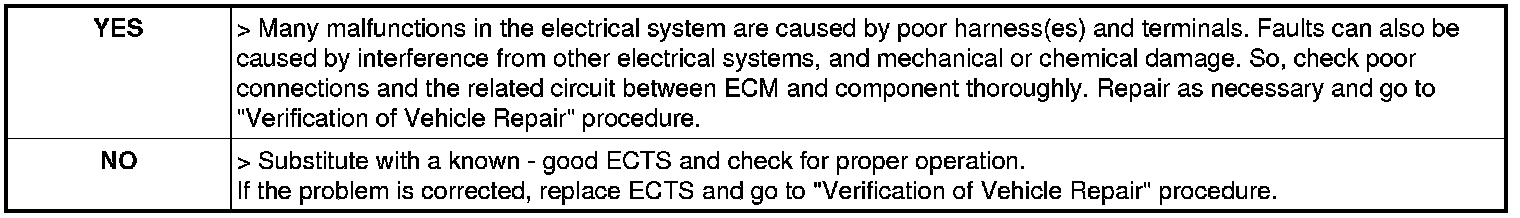

4. Is the measured resistance within specification?
