Scantool Diagnostics

P0113 Intake Air Temperature Sensor 1 Circuit High Input

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC)
2. IG KEY "ON" & ENG "OFF"

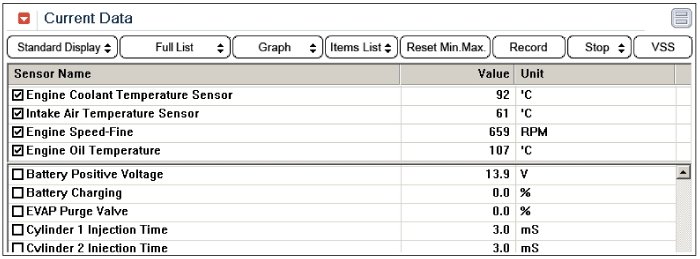

3. Monitor the "IATS" parameters on the GDS.

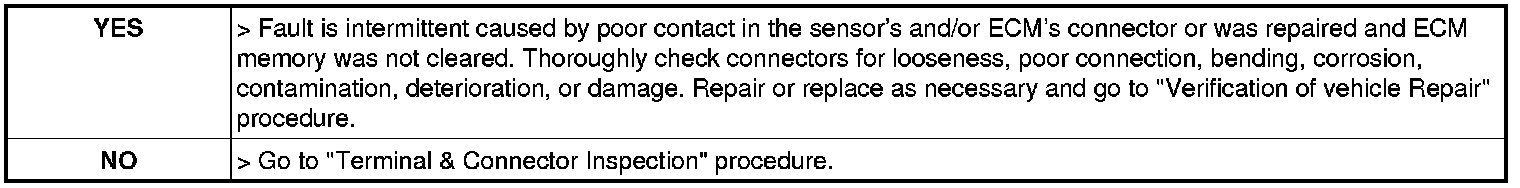

4. Is the "IATS" parameter displayed correctly?
