W/Harness Inspection

P0107 Manifold Absolute Pressure/Barometric Pressure Circuit Low Input

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

Check Open or Short in power circuit
1. IG KEY "OFF".
2. Disconnect MAPS connector.
3. IG KEY "ON" & ENG "OFF"

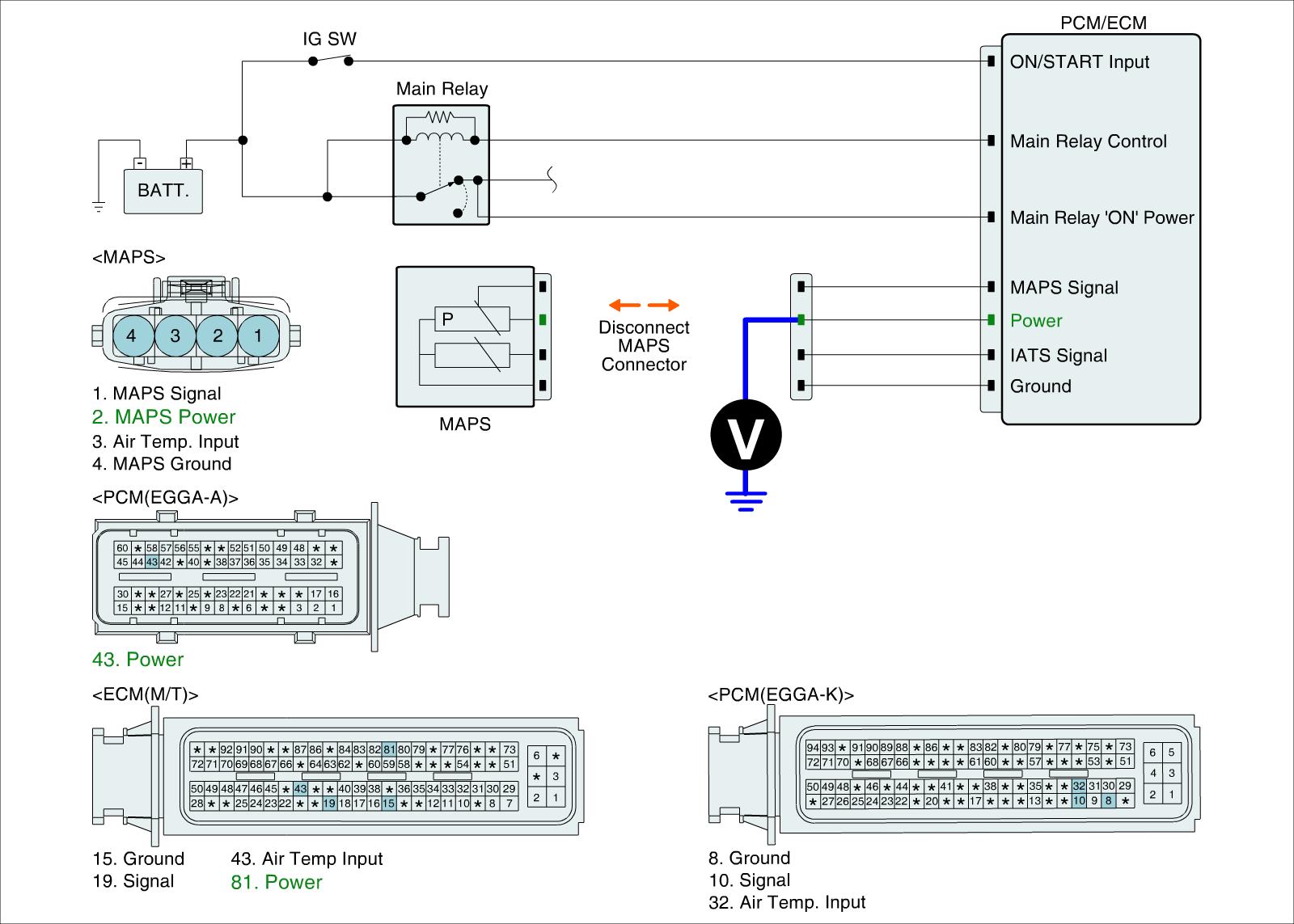

4. Measure the voltage between power terminal of MAPS harness connector and chassis ground.

Specification : Approx 5 V




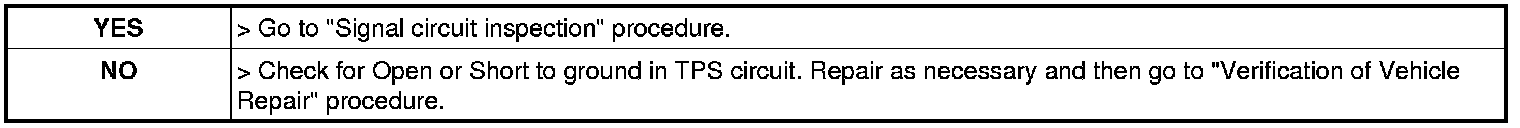

5. Is the measured voltage within specification?






Signal Circuit Inspection

Check Short in signal circuit
1. IG KEY "OFF".
2. Disconnect MAPS connector.
3. IG KEY "ON" & ENG "OFF"

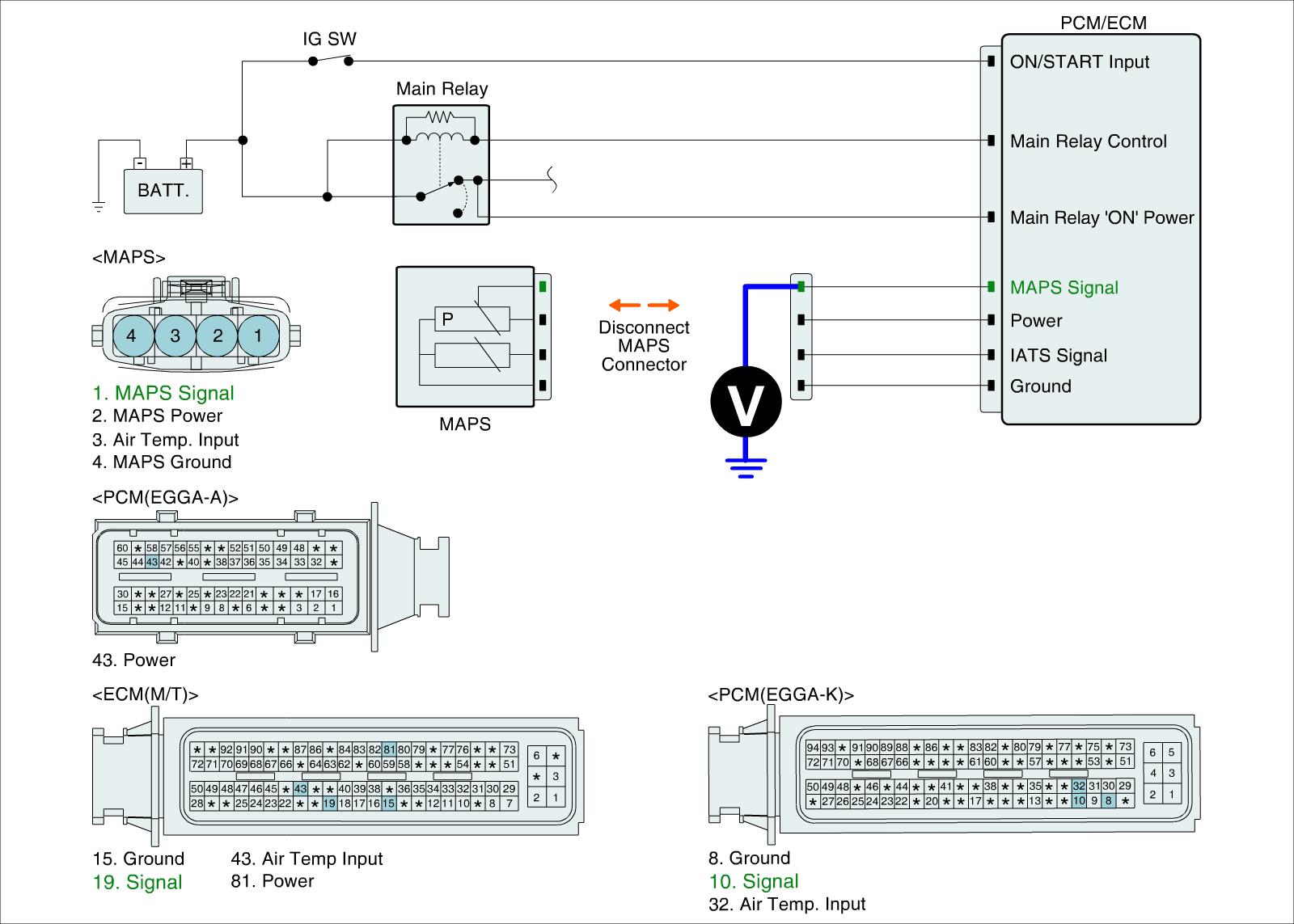

4. Measure the voltage between signal terminal of MAPS harness connector and chassis ground.

Specification : Approx 5 V




5. Is the measured voltage within specification?
