Scantool Diagnostics

P0107 Manifold Absolute Pressure/Barometric Pressure Circuit Low Input

Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to DLC (Data Link Cable).
2. Warm up the engine to normal operating temperature.
3. Monitor "MAPS" parameter on GDS

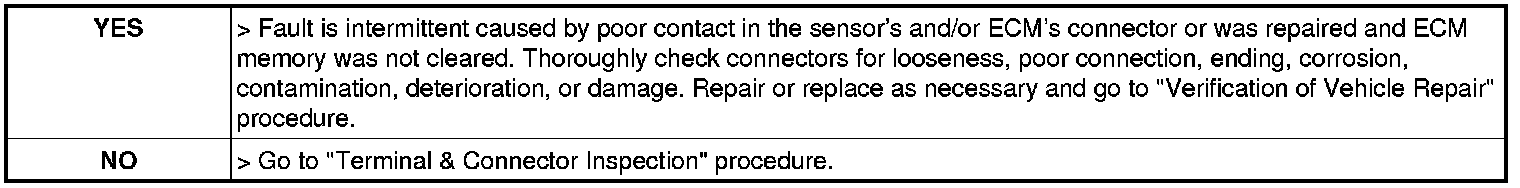

4. Is the "MAPS" parameter displayed correctly?
