Component Inspection

P0077 Intake Valve Control Solenoid Circuit-High (Bank 1)

Inspection/Repair - Component Inspection

Component Inspection

Check OCV resistance
1. IG "OFF".
2. Disconnect OCV connector.
3. Measure resitance between terminal 1 and 2 of OCV connector. (Component Side)
Specification :

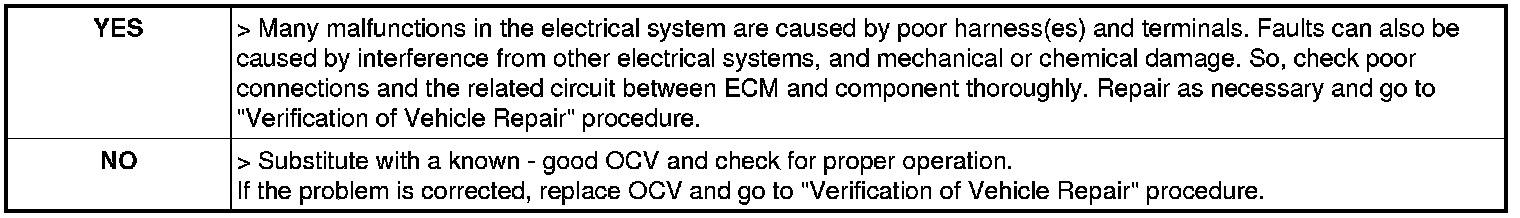

4. Is the measured resistance within specification?
