Component Inspection

P0016 Crankshaft Position-Camshaft Position Correlation (Bank 1 Sensor A)

Inspection/Repair - Component Inspection

Component Inspection

Check CMPS, CKPS.
1. IG "OFF".

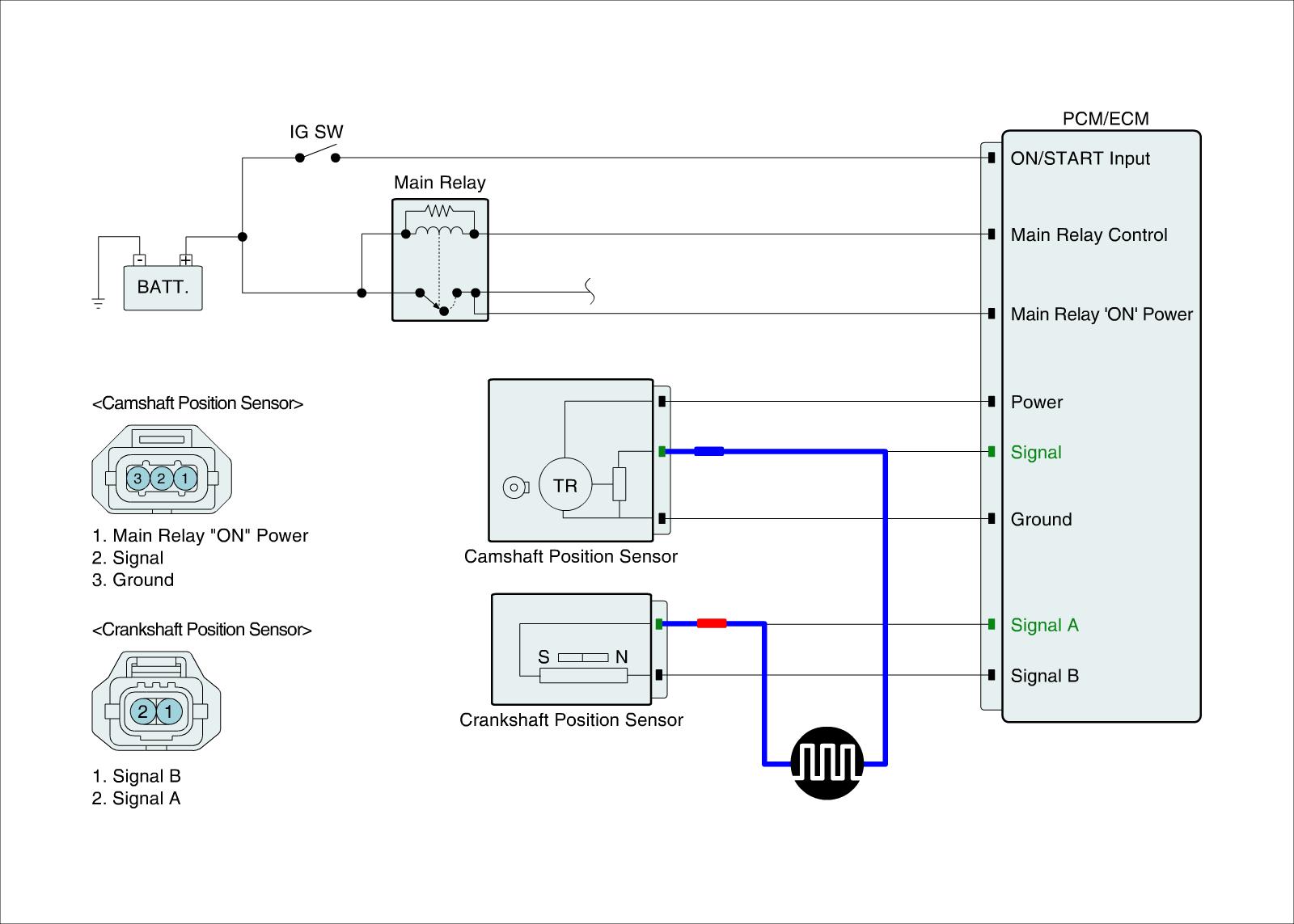

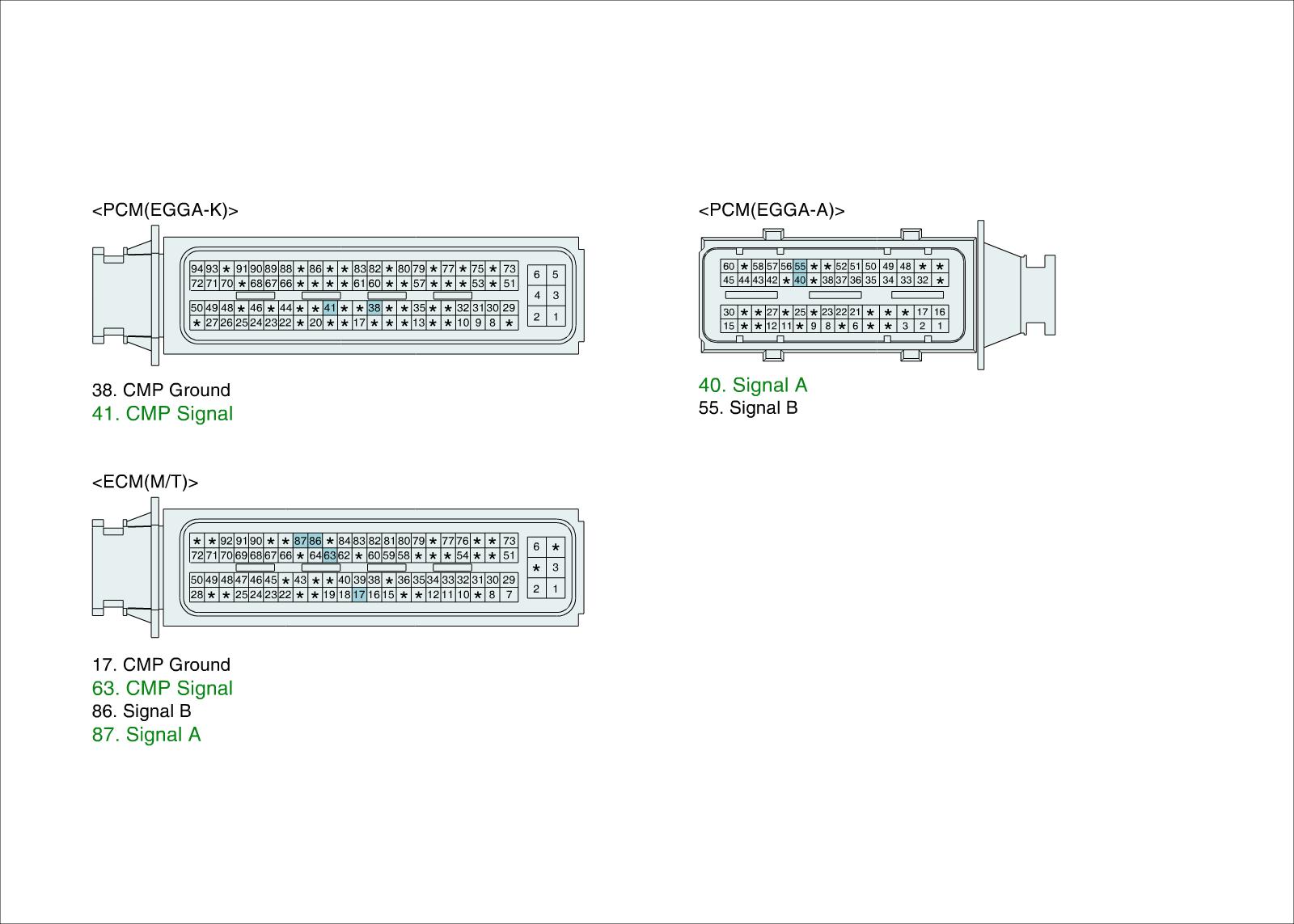

2. Select "vehicle scopemeter" in the menu, and connect channel A of GDS with signal terminal of CKPS harness connector.
3. Connect Channel B of GDS with power or signal terminal of CMPS harness connector.
4. Engine start. And check the signal waveforms.

Specification : Refer to Signal Waveform & Data








5. Is the measured signal waveforms of CKPS/CMPS normal?





Check timing mark
1. IG "OFF".
2. Check timing mark.

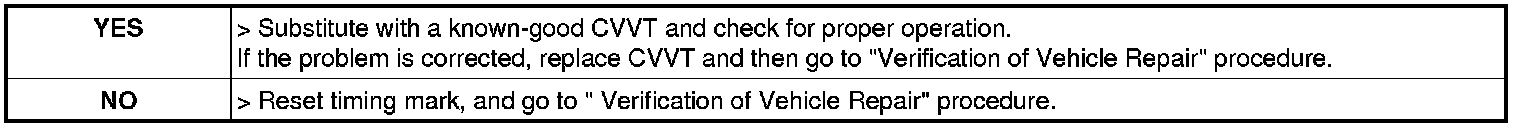

3. Is timing mark normal?
