W/Harness Inspection

C2511 Diagnostic (TPMS) Lamp Circuit Failure

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminal condition.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
3. Has a problem been found?






Control Circuit Inspection

[Check Short to battery]
1. Ignition "OFF"
2. Disconnect instrument cluster connector and TPMS receiver connector.
3. Ignition "ON".
4. Measure voltage between TPMS check lamp control terminal of TPMS receiver harness connector and chassis ground.

Specification : Approx. 0 Ohms

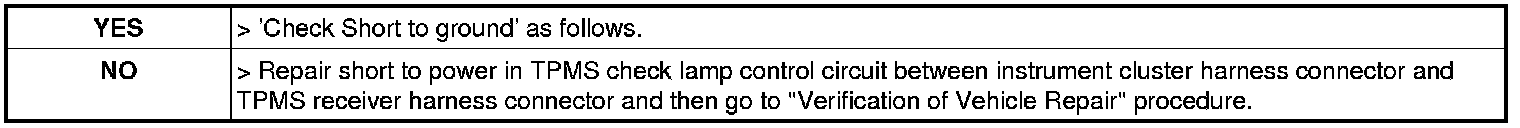

5. Is the measured voltage within specifications?





[Check Short to ground]
1. Ignition "OFF"
2. Disconnect instrument cluster connector and TPMS receiver connector.

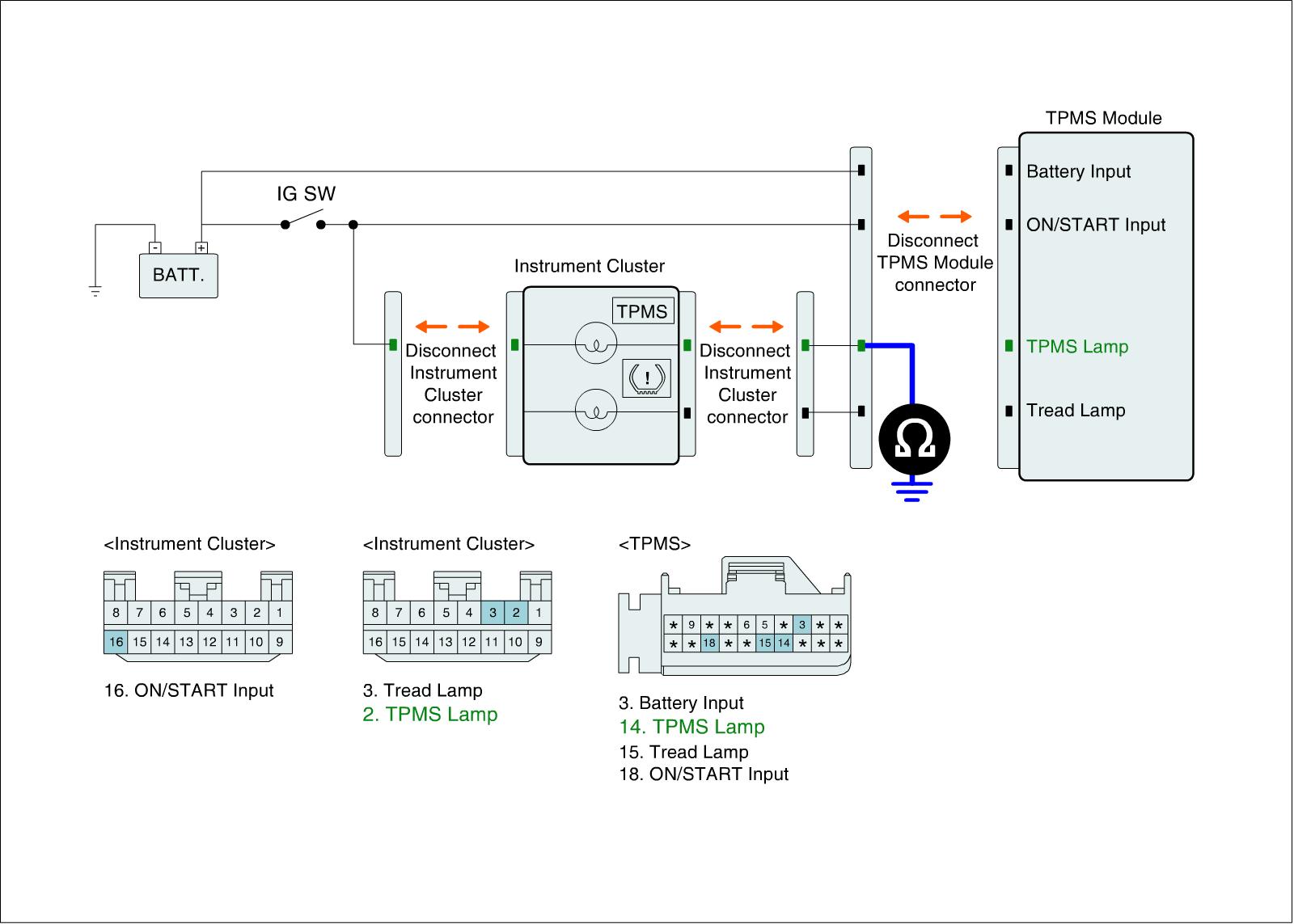

3. Measure resistance between TPMS check lamp control terminal of TPMS receiver harness connector and chassis ground.

Specification : Infinity

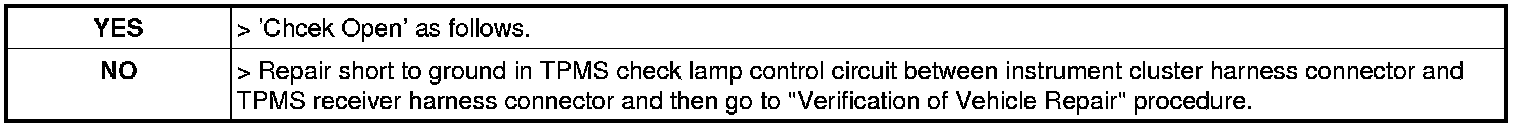

4. Is the measured resistance within specifications?





[Check Open]
1. Ignition "OFF"
2. Disconnect instrument cluster connector and TPMS receiver connector.

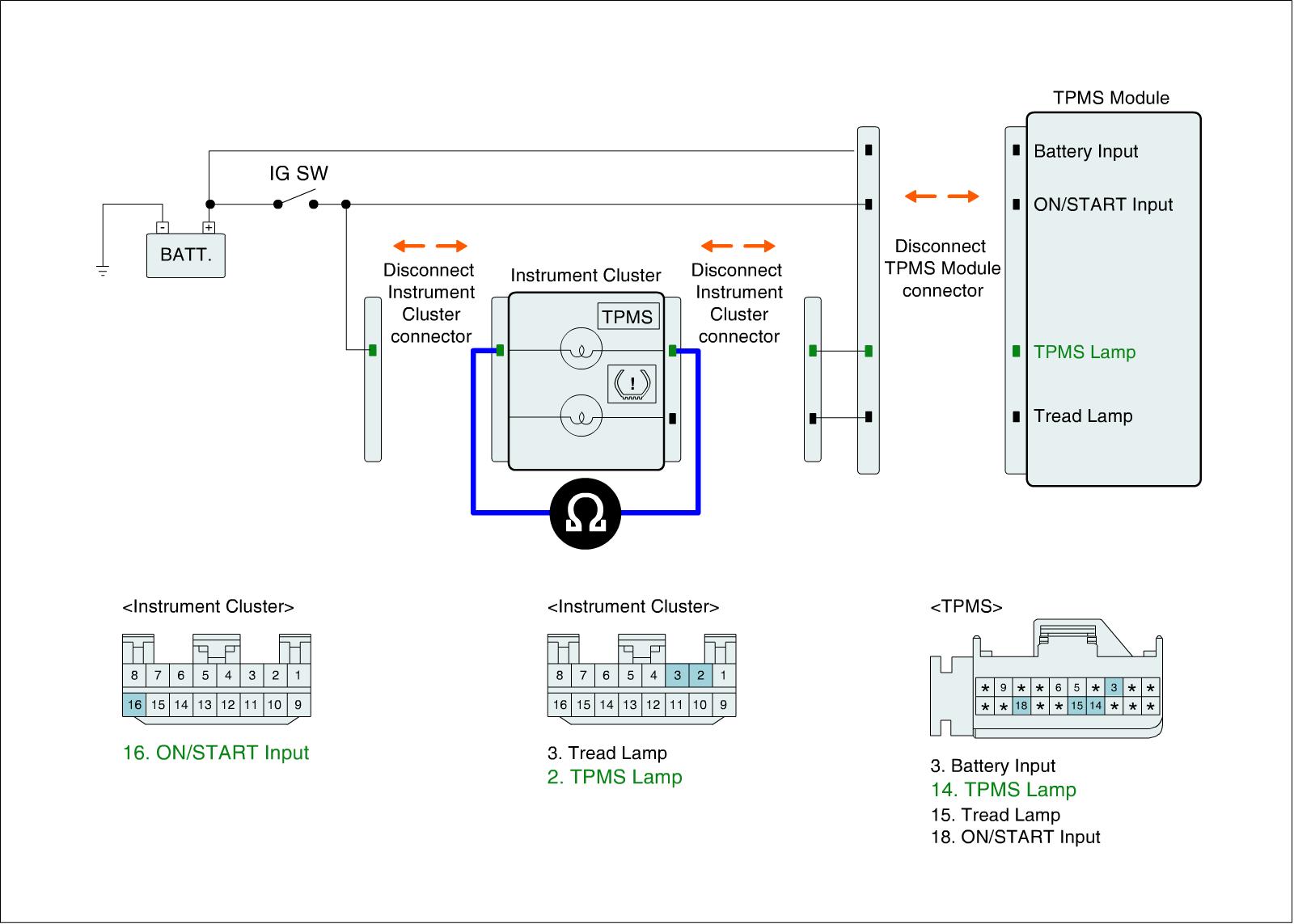

3. Measure resistance between TPMS check lamp control terminal of TPMS receiver harness connector and TPMS check lamp control terminal of instrument cluster harness connector.

Specification : Approx. 0 Ohms

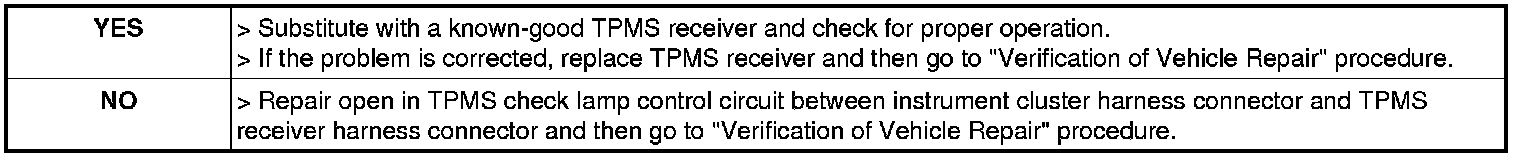

4. Is the resistance measured within specifications?
