General Information

C1611 CAN Time-out ECM

General Information

Component Location





General Description

EPS provides a different assist force according to vehicle speed when engine ON. EPS CM receives engine condition and vehicle speed from ECM as EMS1 signal.

DTC Description

EPS CM sets this code if EMS1 message is not received within predefined time.

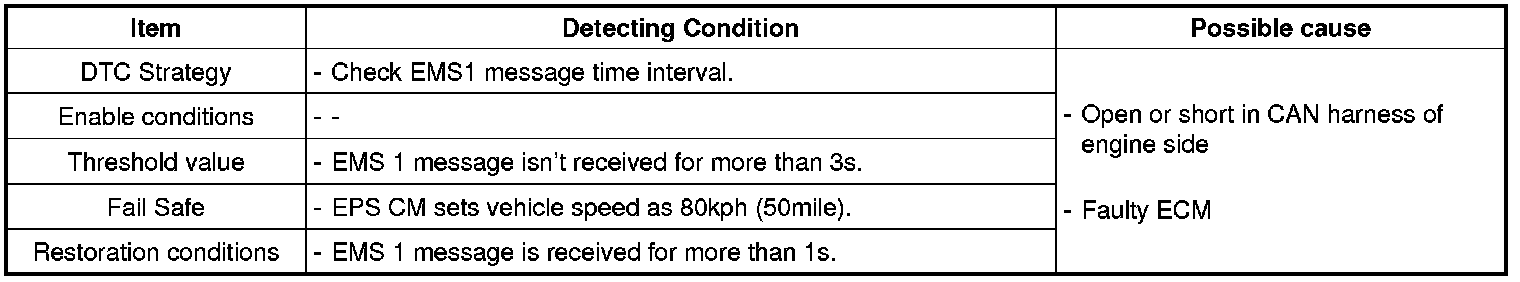

DTC Detecting Condition





Diagnostic Circuit Diagram
