Scantool Diagnostics

C1112 Sensor source voltage

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Ignition "ON" & Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.

Specification : BATTERY VOLTAGE (Approx. 10 V ~ 16 V)

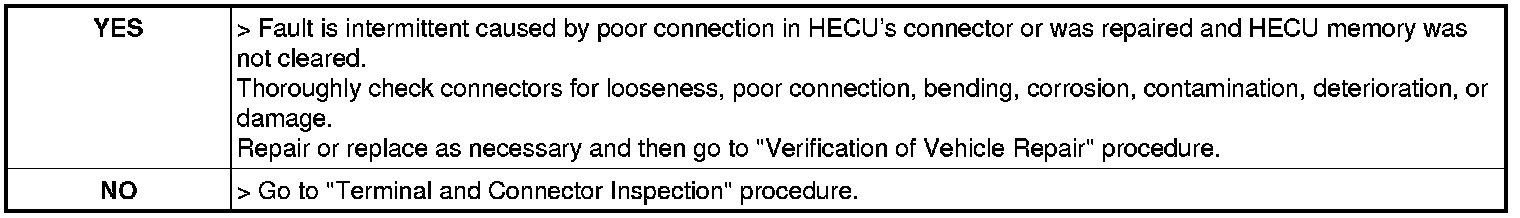

4. Is parameter displayed within specifications?
