B2406 Air Mix Motor-Driver

General Information

Component Location





General Description

The Air Mix actuator contains a motor that changes temp door position and a potentiometer that monitors position of temp door. The Air mix actuator (Temperature actuator) regulates the temperature by operating temp door motor. The potentiometer delivers temp door position to the A/C ECU.

DTC Description

The Air conditioner Control Module sets DTC B2406 if Driver air mix actuator has not been moved to the mode, where air condition control module controls, within 20 seconds.

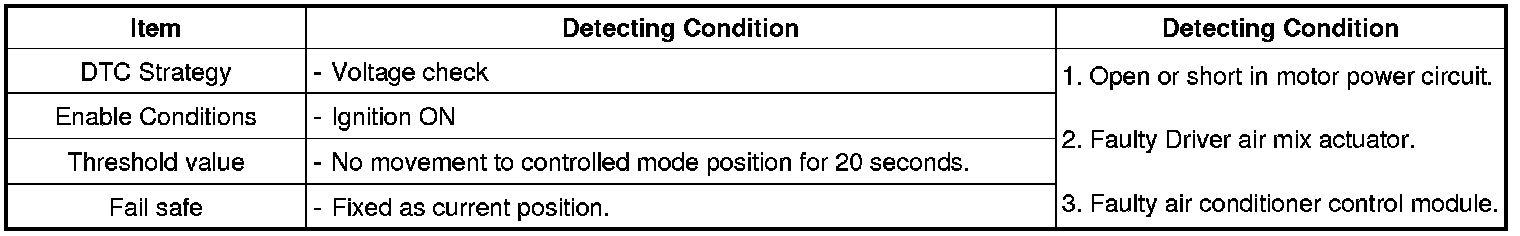

DTC Detecting Condition





Specification

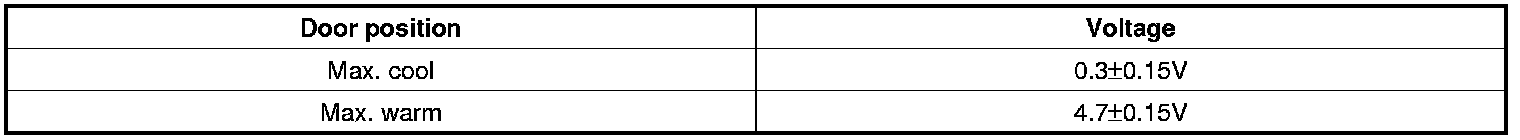

** Voltage value of Air Mix potentiometer as a function of temp door position.






Diagnostic Circuit Diagram
