Scantool Diagnostics

B1352 Passenger Airbag Resistance too High (1st Stage)

Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
3. Monitor the "Passenger airbag (1st stage) resistance" parameter on the Scantool.

Specification : 1.6 Ohms < Resistance of Passenger airbag (1st stage) < 6.0 Ohms

Reference :In a case of an open in the Passenger airbag (1st stage) circuit : FAIL
In a case of a short to battery in the Passenger airbag (1st stage) circuit: FAIL
In a case of a short to ground in the Passenger airbag (1st stage) circuit : FAIL




Fig.1) Normal Data

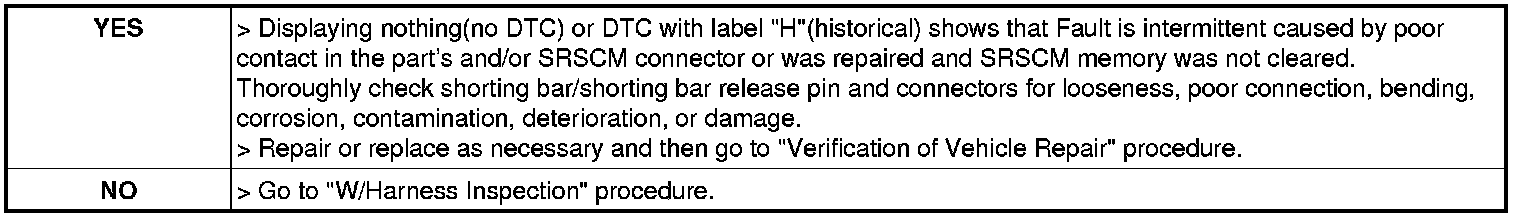

4. Is parameter displayed within specifications?
