General Information

B1234 In-Car Temperature Sensor Open (High)

General Information

Component Location





General Description

The In-Car Temperature Sensor measures the temperature of the passenger compartment. The voltage signal is delivered to the HVAC control unit. This information is used to control the vent output temperature.

DTC Description

DTC B1234 sets if In-Car temperature sensor signal is at or over 4.9 V for 0.3 seconds.

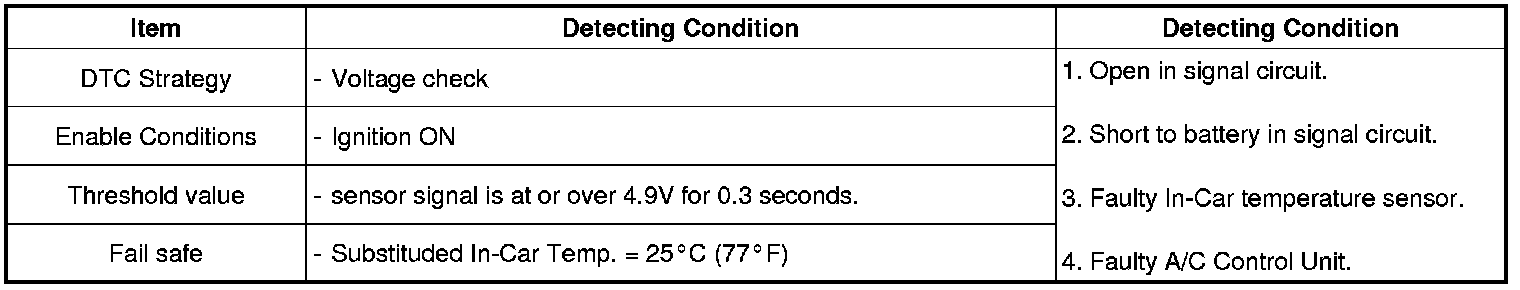

DTC Detecting Condition





Specification

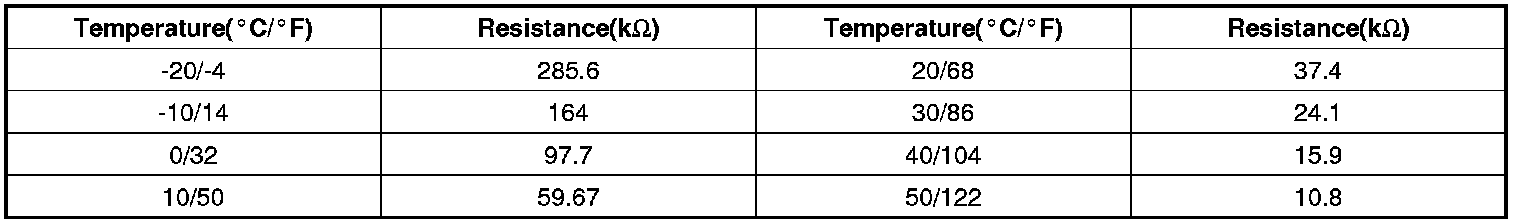

** Resistance value of incar temp sensor as a function of temperature.






Diagnostic Circuit Diagram
