FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Kia
>>
2011
>>
Rondo (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Coolant Temperature Sensor/Switch (For Computer)
>>
Fuel System
Fuel System
Specifications
Sensors

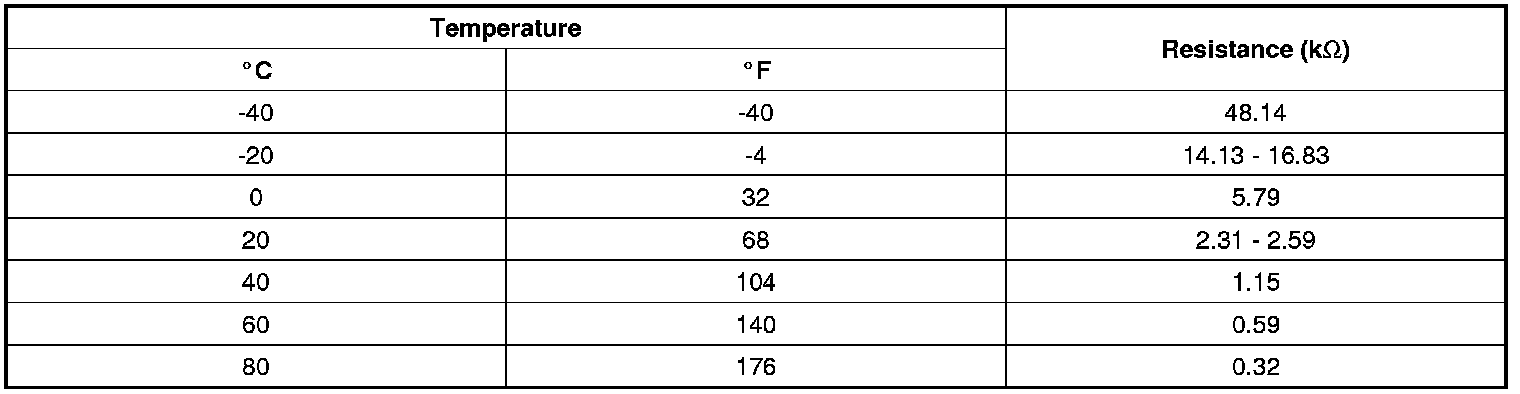

Engine Coolant Temperature Sensor (ECTS)
- Type: Thermistor type
- Specification
