Home
>>
Kia
>>
2011
>>
Rondo (CANADA) V6-2.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Sensors and Switches - Computers and Control Systems
>>
Fuel Tank Pressure Sensor
>>
Specifications
>>
Fuel System
Fuel System
Specifications
Sensors
Fuel Tank Pressure Sonsor (FTPS)
- Type: Piezo - Resistivity type

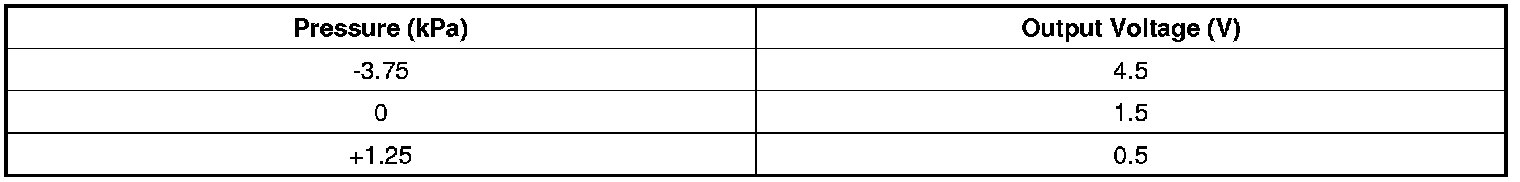

- Specification
