Components and Components Location (F4A42)

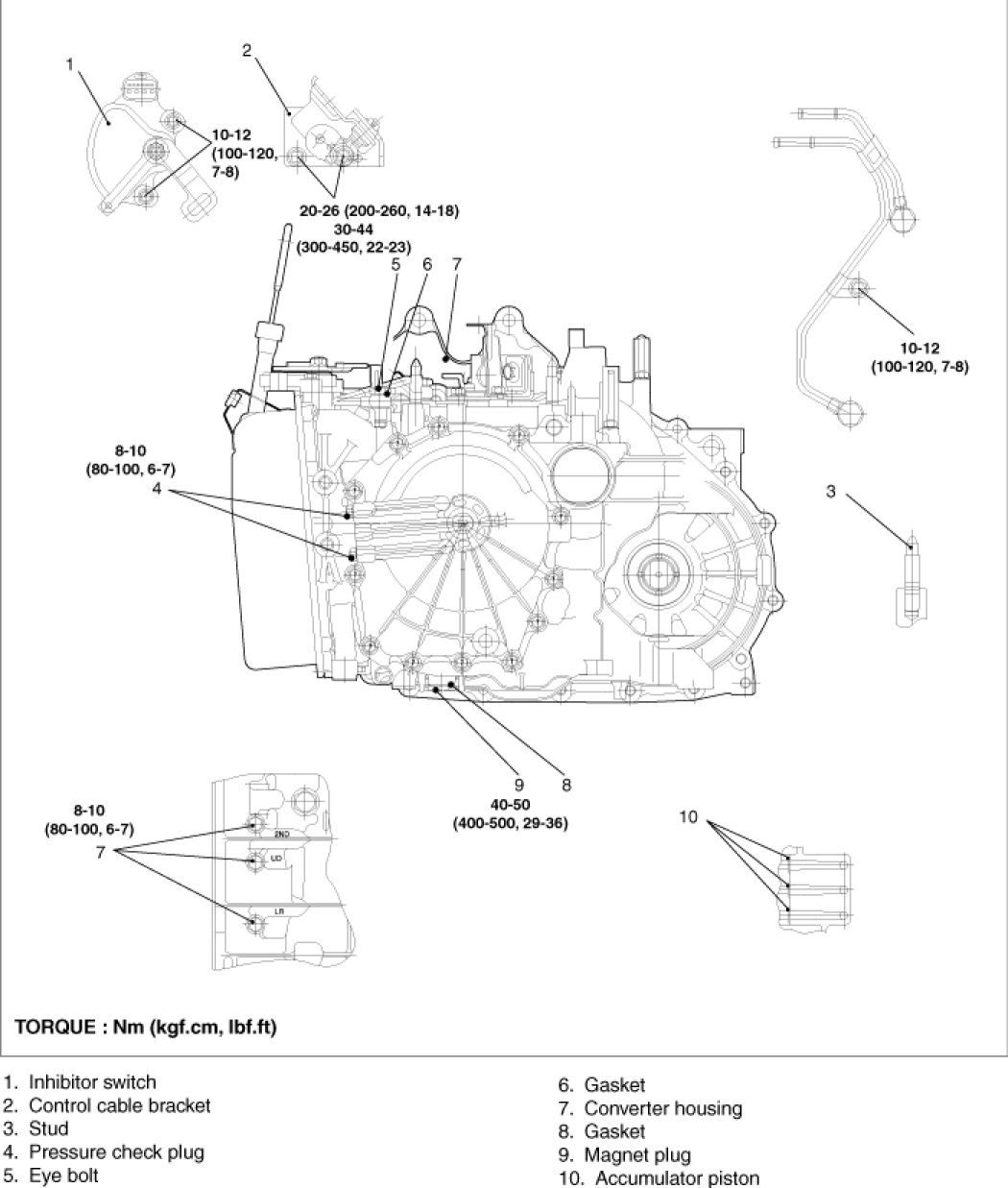

COMPONENTS (1)

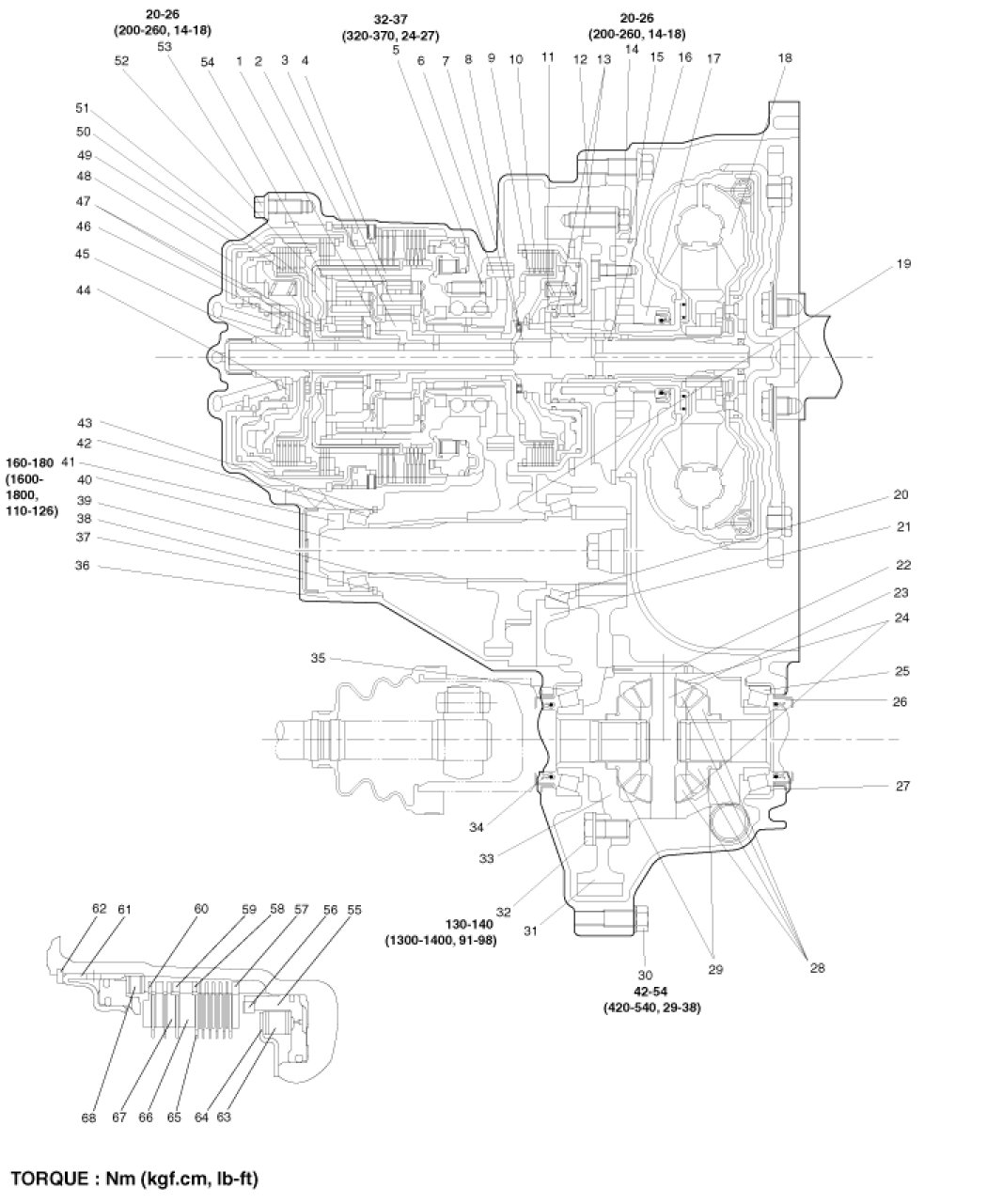

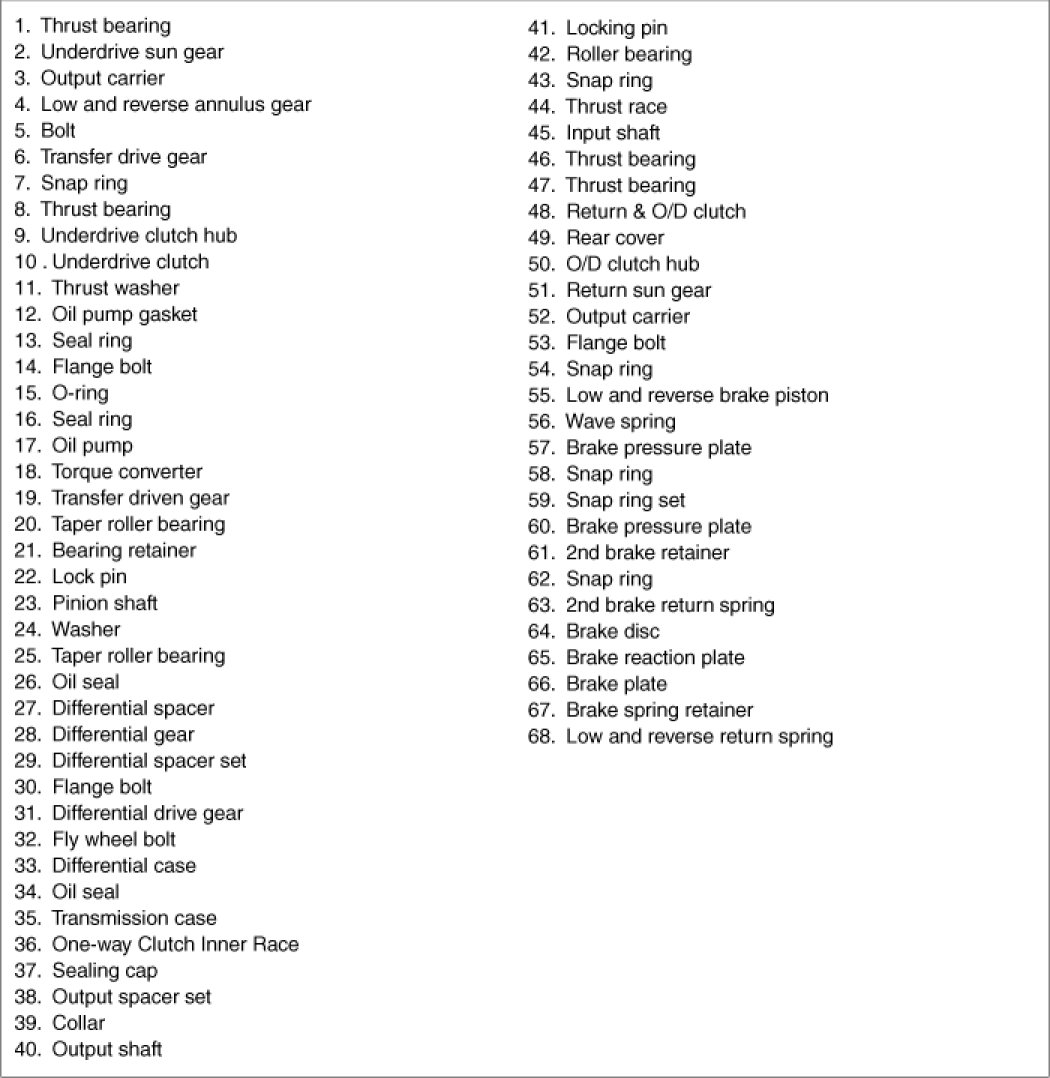

COMPONENTS (2)

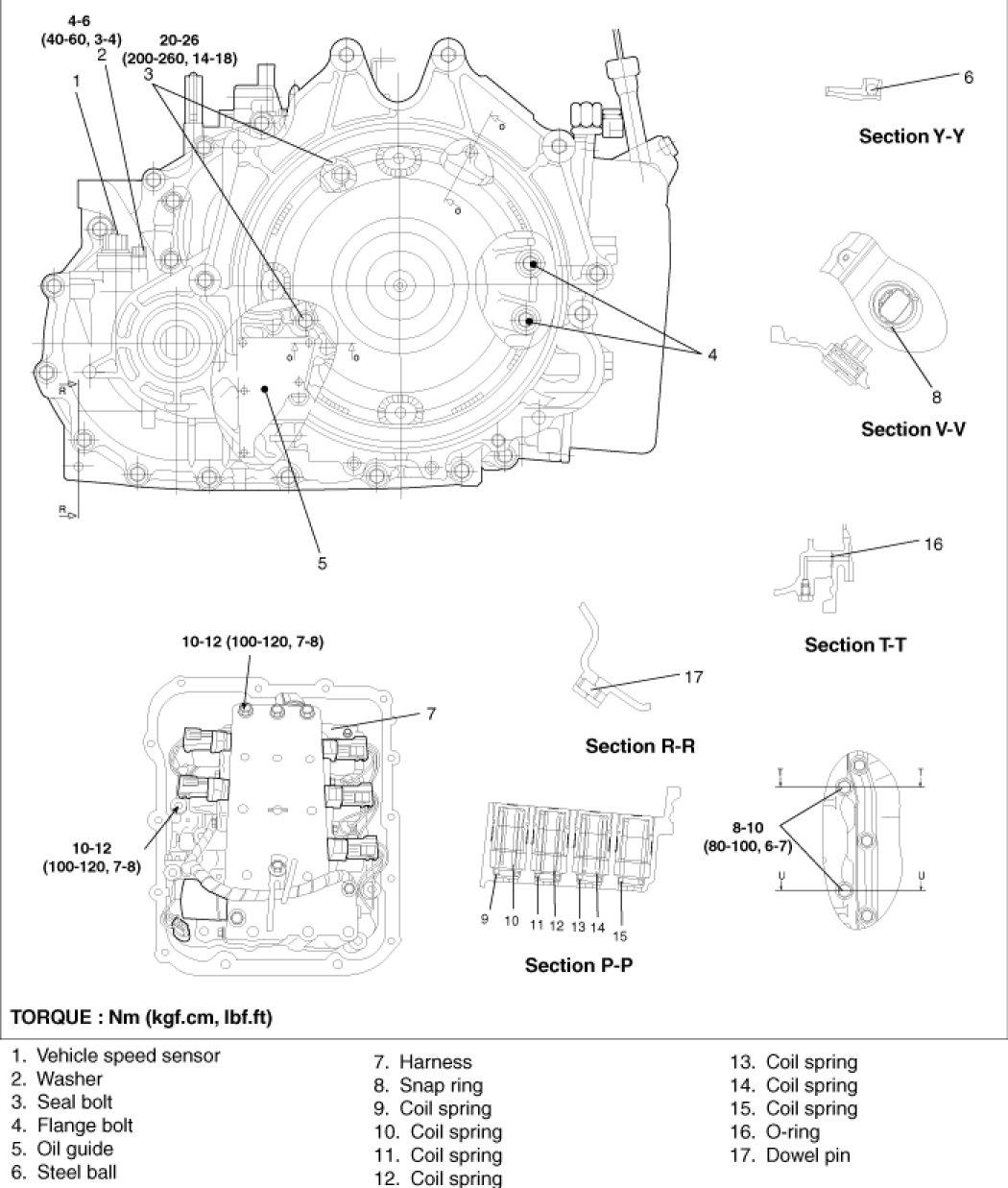

COMPONENTS (3)

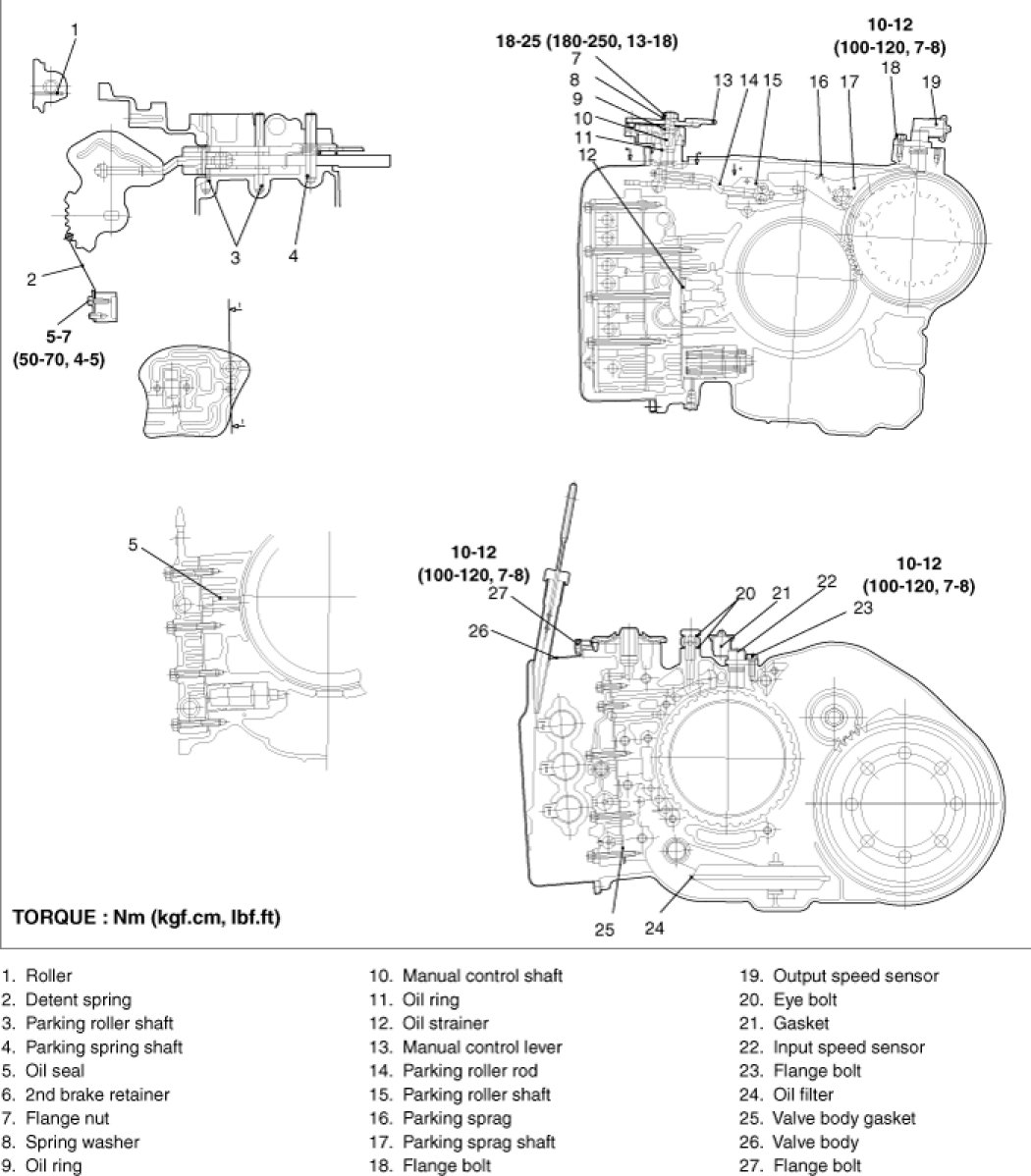

COMPONENTS (4)
