Disassembly

DISASSEMBLY

1. Remove the feed tubes (A) from the steering gear box.




2. Loosen the lock nut (A) and then unscrew the toe-rod end (B) and lock nut from the tie-rod.




3. Remove the bellows clip (A) and band (B) and then pull the bellows (C) away from the end of the tie-rod.




4. Unscrew the tie-rod (B) from the rack bar (A).




5. Remove the lock nut (A) and yoke plug (B) and then pull out the yoke spring (C) and support yoke (D).




6. Remove the dust packing (A) and cap (B).




7. Remove the snap ring (A) from the pinion housing.




8. Remove the pinion plug (A) and lock nut (B).




9. Pull the pinion assembly (A) out of the pinion housing.

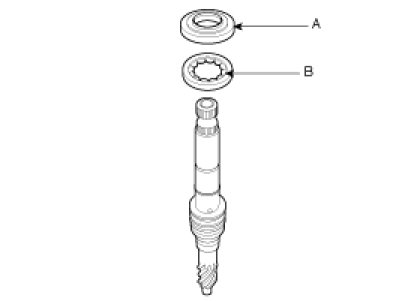

10. Remove the oil seal (A) and bearing (B) from the valve assembly.

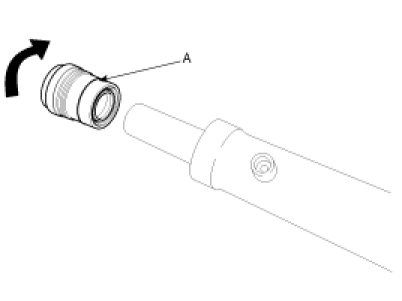

11. Unscrew the rack bush (A) from the rack housing.




12. Pull the rack bar (A) out of the rack housing.
