Air Temperature Sensor ( Ambient / Intake )
>>
Specifications
>>
Fuel System
Fuel System
Specifications
Sensors

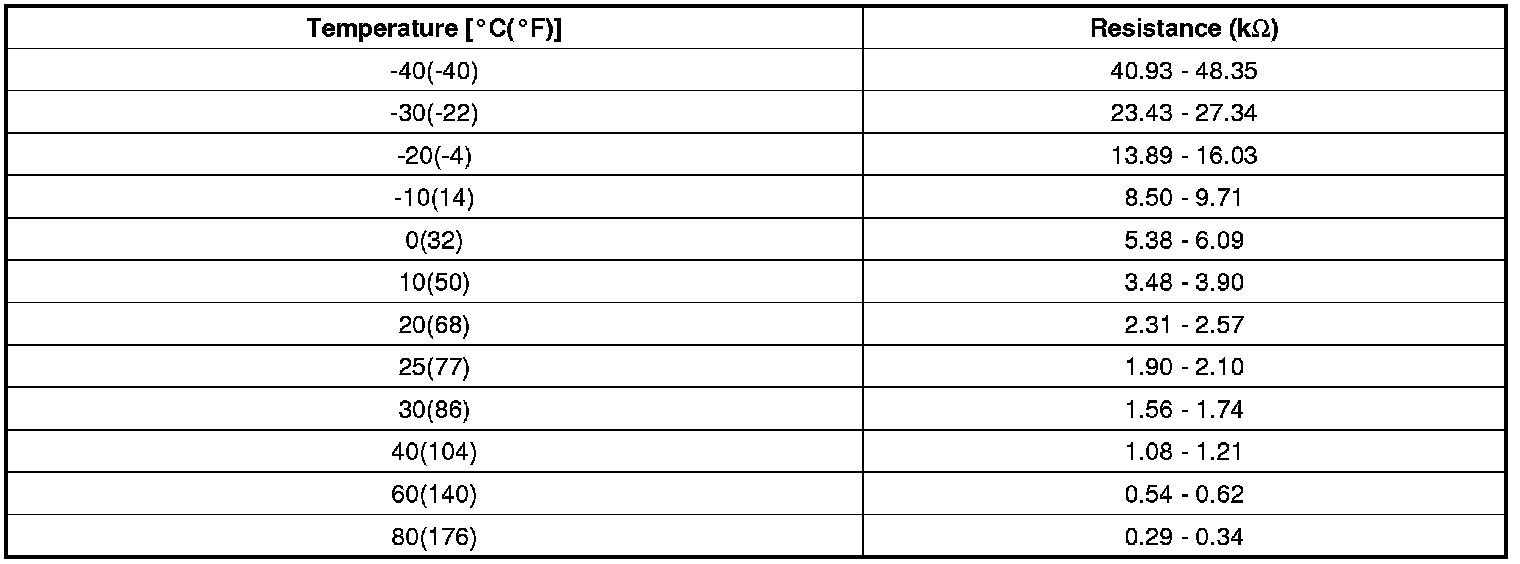

Intake Air Temperature Sensor (IATS)
- Type: Thermistor type
- Specification
