Home >> Kia >> 2011 >> Rondo (CANADA) L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Traction Control Switch >> Testing and Inspection

Traction Control Switch: Testing and Inspection





INSPECTION

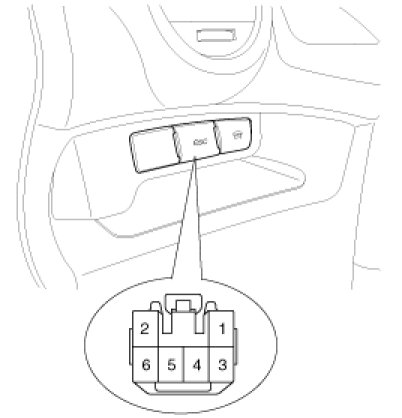

1. Remove the ESC OFF switch from the switch panel.

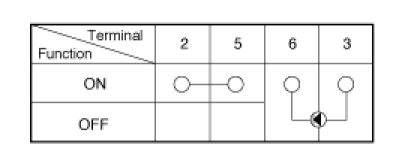

2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
