Solenoid Valve (F4A42)

INSPECTION

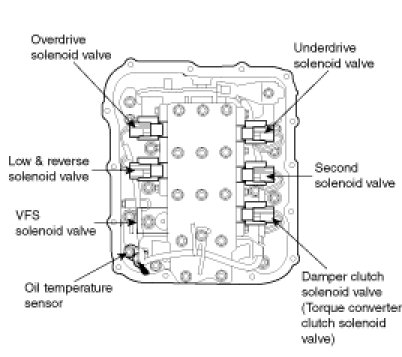

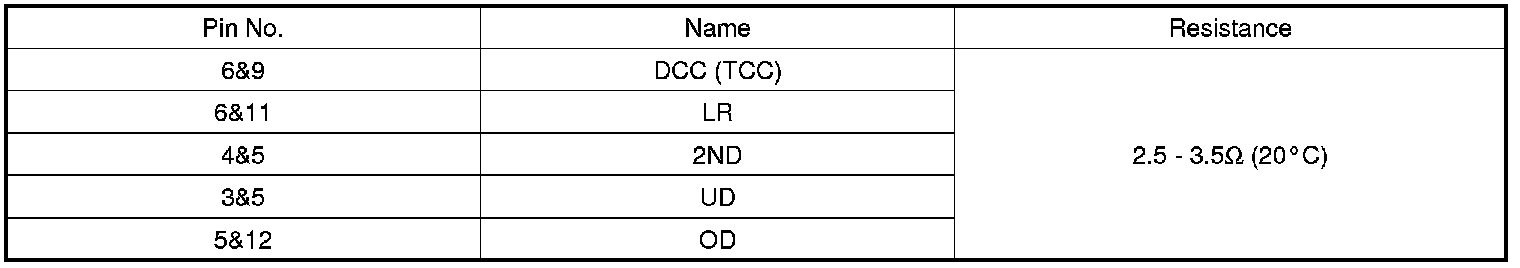

1. If the value is out of specification according to the chart below, remove the valve body cover.

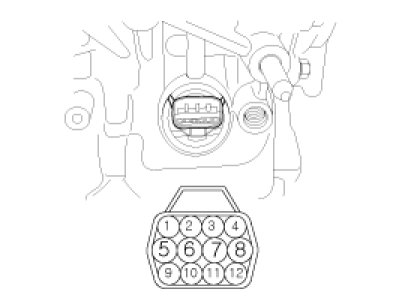

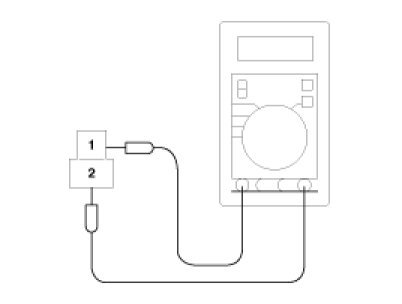

2. Measure the resistance again after disconnecting solenoid valve connector.

Specification (20°C):
2.5 - 3.5 Ohms (LR, 2ND, UD, OD, TCC)





3. If the value is out of specification replace the solenoid valve.
