Fuel Pump: Service and Repair

Removal (Including Fuel Filter And Fuel Pressure Regulator)

1. Preparation
(1) Remove the 3rd seat .
(2) Open the service cover (A).




(3) Disconnect the fuel pump connector (A).




(4) Start the engine and wait until fuel in fuel line is exhausted.
(5) After engine stalls, turn the ignition switch to OFF position.

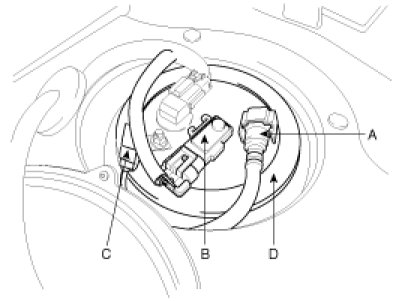

2. Disconnect the fuel feed tube quick-connector (A), the fuel tank pressure sensor connector (B), and the canister close valve connector (C).




3. Remove the rubber cover (D).

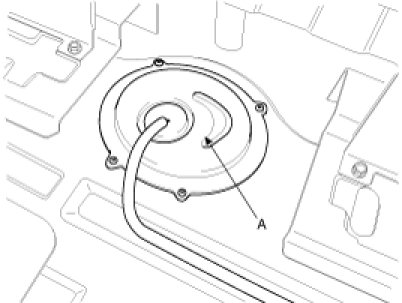

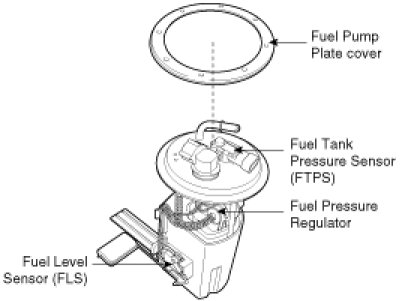

4. Unscrew the fuel pump plate cover (A) with the special service tool (SST No.: 09310-2B200) and remove the fuel pump assembly.










Installation

Installation is reverse of removal.

Fuel Pump Plate Cover Tightening :
78.5 - 98.1N.m (8.0 - 10.0 kgf.m, 57.9 - 72.4 lb-ft)
