Home >> Kia >> 2011 >> Rondo (CANADA) L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Catalytic Converter >> Locations

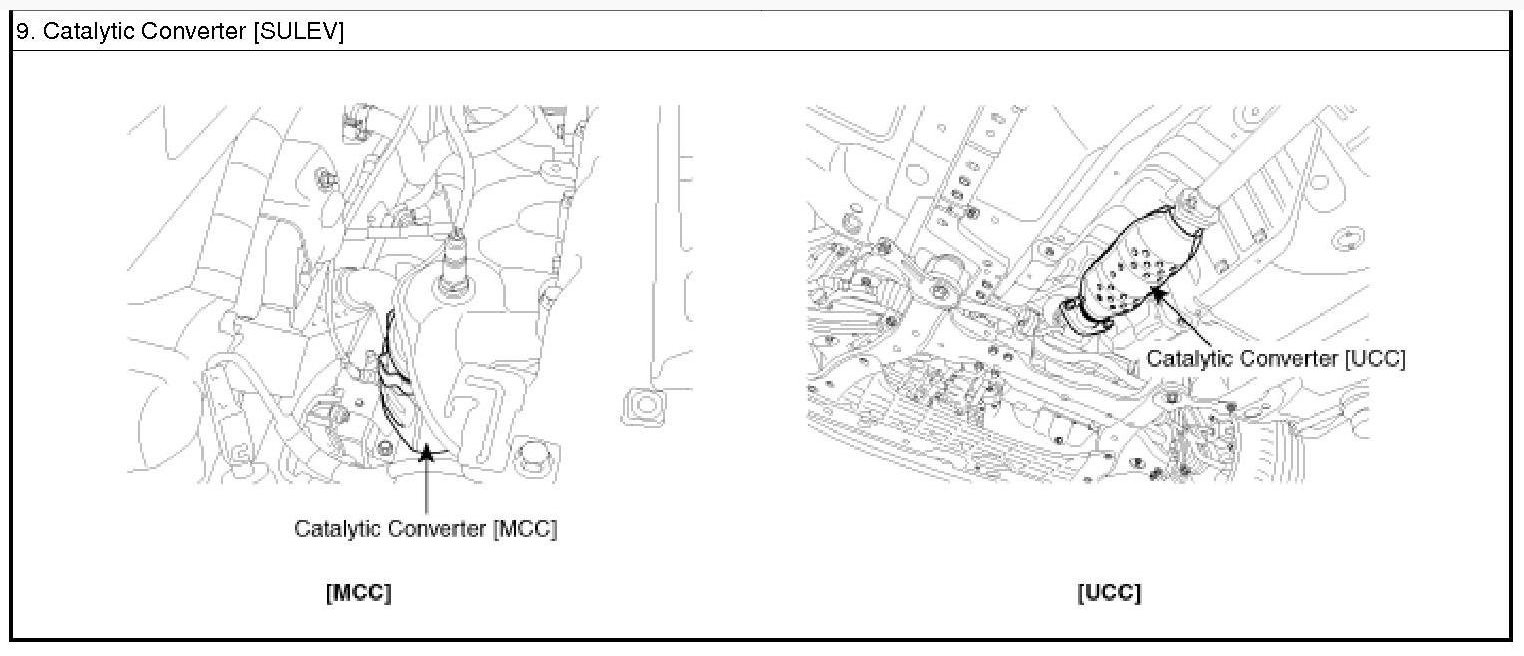

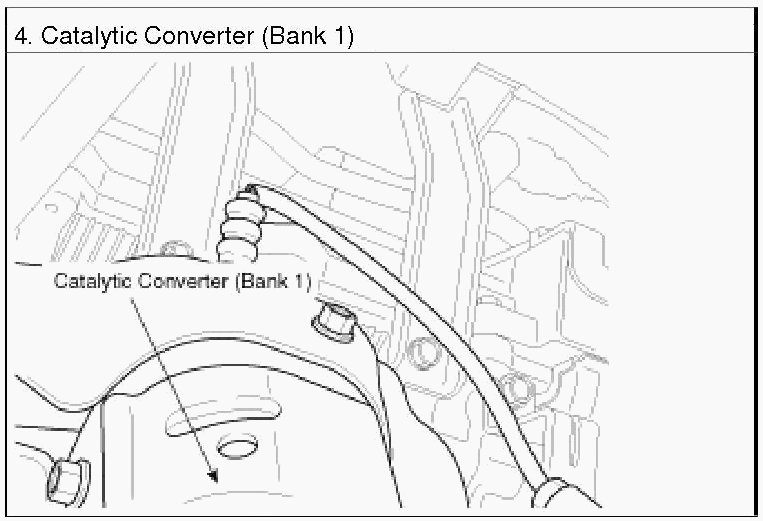

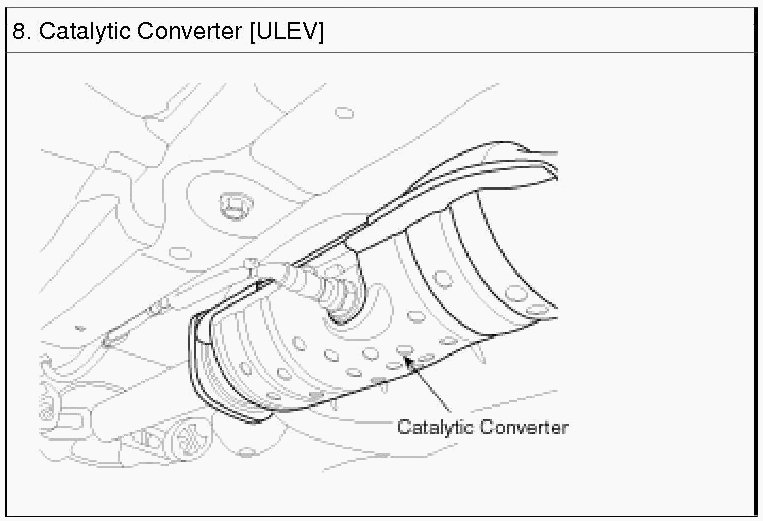

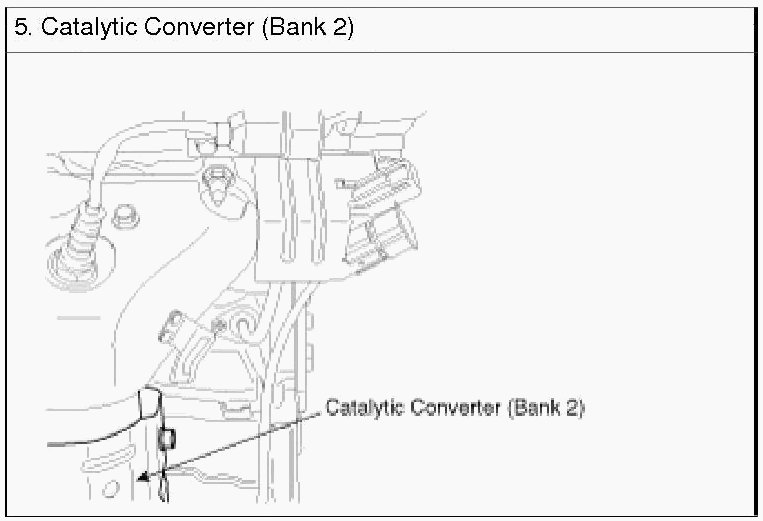

Catalytic Converter: Locations





Components Location

[2.4 DOHC]


















[2.7 V6]
