Repair Procedures

REPLACEMENT

FLOOR CONSOLE REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

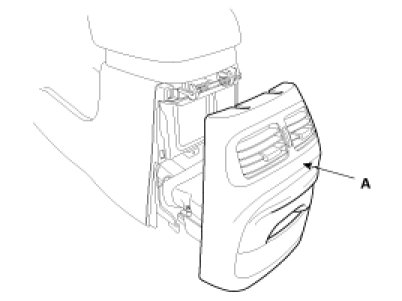

1. Remove the console rear cover (A).

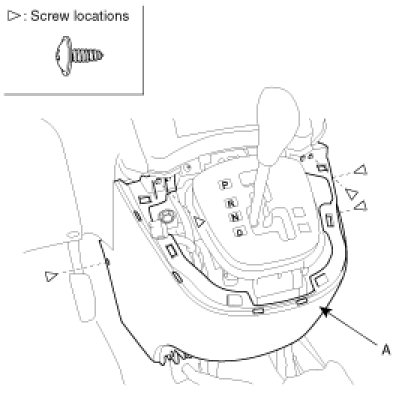

2. Remove the under cover (A).




3. Disconnect the connector.

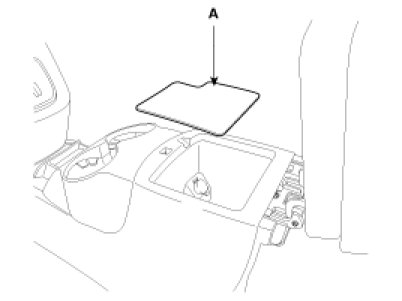

4. Remove the console storage box cover (A).




5. After loosening the console mounting screws, then remove the floor console assembly (A).




6. Disconnect the connector.
7. After loosening the console mounting screws, then remove the front console (A).




8. Installation is the reverse of removal.
