Trunk / Liftgate: Adjustments

ADJUSTMENT

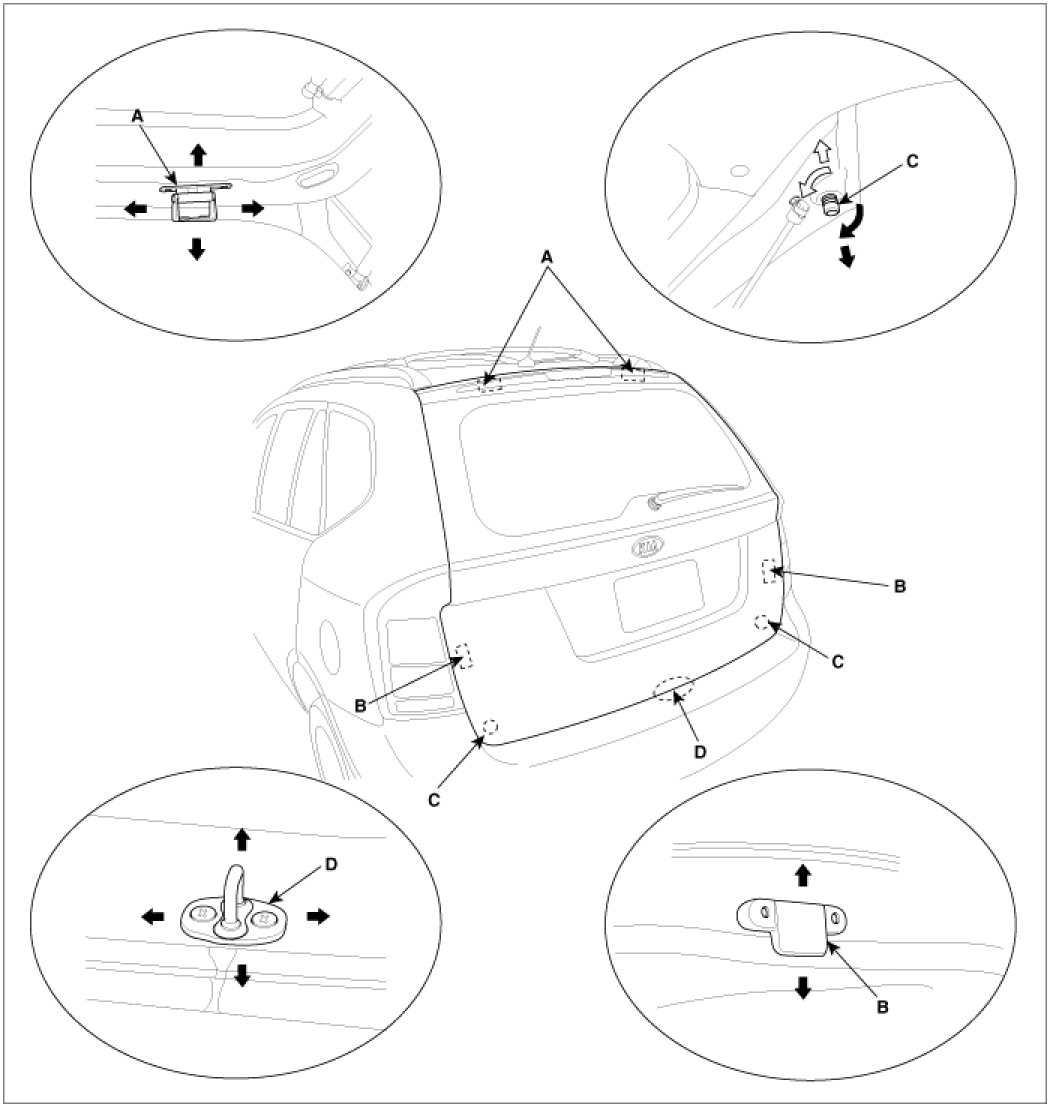

1. After loosening the tailgate hinge (A) mounting bolt, adjust the tailgate by moving it up or down, or right or left.
2. Adjust the tailgate fit by turning the tailgate overslam bumper (C) and side bumper (B).
3. Adjust the striker (D) by moving it up or down, or right or left.
