Keyless Entry: Description and Operation
DESCRIPTION
BURGLAR ALARM SYSTEM
The burglar alarm system is armed automatically after the doors, hood, and tailgate are closed and locked.
The system is set off when any of these things occur :
- A door is forced open.
- The tailgate is opened without using the key.
- The hood is opened.
When the system is set off, the alarm sounds and the hazard lamp flash for about 30 seconds or until the system is disarmed by unlocking the transmitter.
For the system to arm, the ignition switch must be off and the key removed. Then, the body control module must receive signals that the doors, hood, and tailgate are closed and locked. When everything is closed and locked, none of the control unit inputs are grounded.
If anything is opened after the system is armed, the body control module gets a ground signal from that switch, and the system is set off.
If one of the switches is misadjusted or there is a short in the system, the system will not arm. As long as the body control module continues to get a ground signal, it thinks the vehicle is not closed and locked and will not arm.
KEYLESS ENTRY SYSTEM
The burglar alarm system is integrated with the keyless entry system. The keyless entry system allows you to lock and unlock the vehicle with the remote transmitter. When you push the LOCK/UNLOCK button, all doors lock. When you push the LOCK/UNLOCK button again, all doors unlock.
The room lamp, if its switch is in the center position, will come on when you press the UNLOCK button. If you do not open a door, the light will go off in about 30 seconds, the doors will automatically relock, and the burglar alarm system will rearm. If you relock the doors with the remote transmitter within 30 seconds, the light will go off immediately.
You cannot lock or unlock the doors with the remote transmitter if the key is in the ignition switch.
The system will signal you when the doors lock and unlock by flashing the hazard lamp once when they lock, and twice when they unlock.
FUNCTION
REMOTE KEYLESS ENTRY CONTROL
Operate LOCK / UNLOCK of DOOR and T/GATE RELEASE, PANIC by REMOCON
1. Operate in state of KEY IN SW OUT & ACC SW OFF & IGN1 SW OFF & IGN2 SW OFF
2. By receiving LOCK, UNLOCK, T/GATE RELEASE, PANIC signal from transmitter, output LOCK / UNLOCK of DOOR and T/GATE RELEASE, PANIC.

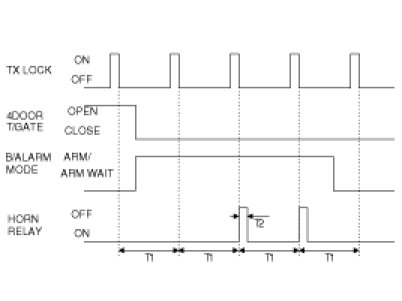

HORN ANSWER BACK
1. If the ARM WAIT state is maintained by the TX within 4s after entered into the ARM WAIT state by the TLOCK the HORN OUPUT shall be gone side by side when the HAZARD alarm is operated.
2. If the ARM state is maintained by the TLOCK within 4s after the TLOCK input in the ARM state, the HORN OUPUT shall be gone side by side when the HAZARD alarm is operated.
3. If the ARMWAIT or ARM mode is canceled for T1, the HORN AND HAZARD shall not be output.
4. Even if other registered TLOCK during T1 operating is received, the HORN AND HAZARD shall be output.
T1 : Within 4 sec, T2 : 0.09 ± 0.01 sec.
* TX : Transmitter

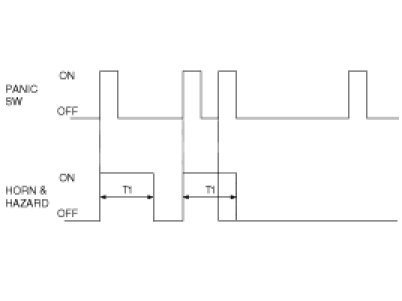

PANIC ALARM
1. When receiving TPANIC signal, Panic alarm is ON by using HORN and HAZARD for T1.
2. During PANIC alarm, when receiving (TLOCK / TUNLOCK /TPANIC / TT/GATE GLASS OPEN / KEY IN / DRIVER KEY UNLOCK, DRIVER KEY LOCK) signal, PANIC Alarm is OFF.
3. During PANIC alarm, even if receiving the other TX registered, regard it as the same TX.
4. HORN and HAZARD running for B/ALARM is prior to PANIC ALARM, and HORN is not performed for 10 sec. free time of B/ALARM running.
T1 : 30 ± 3s (0.9s Period DUTY 50%)
BURGLAR ALARM SYSTEM

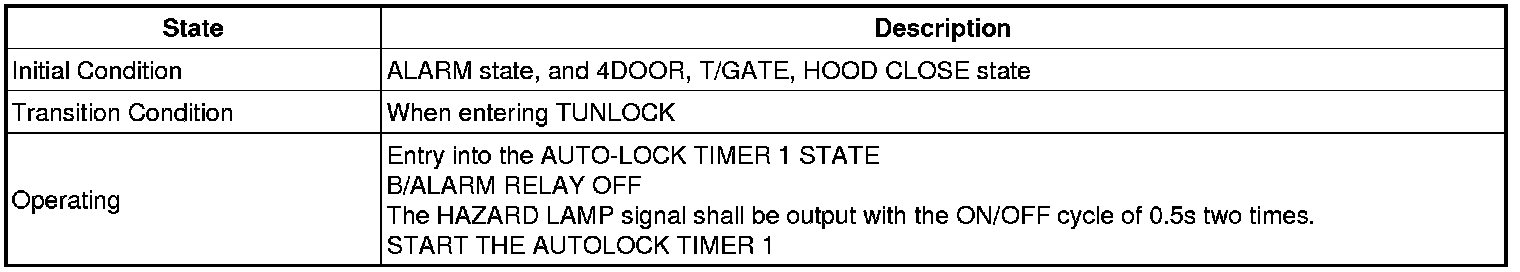

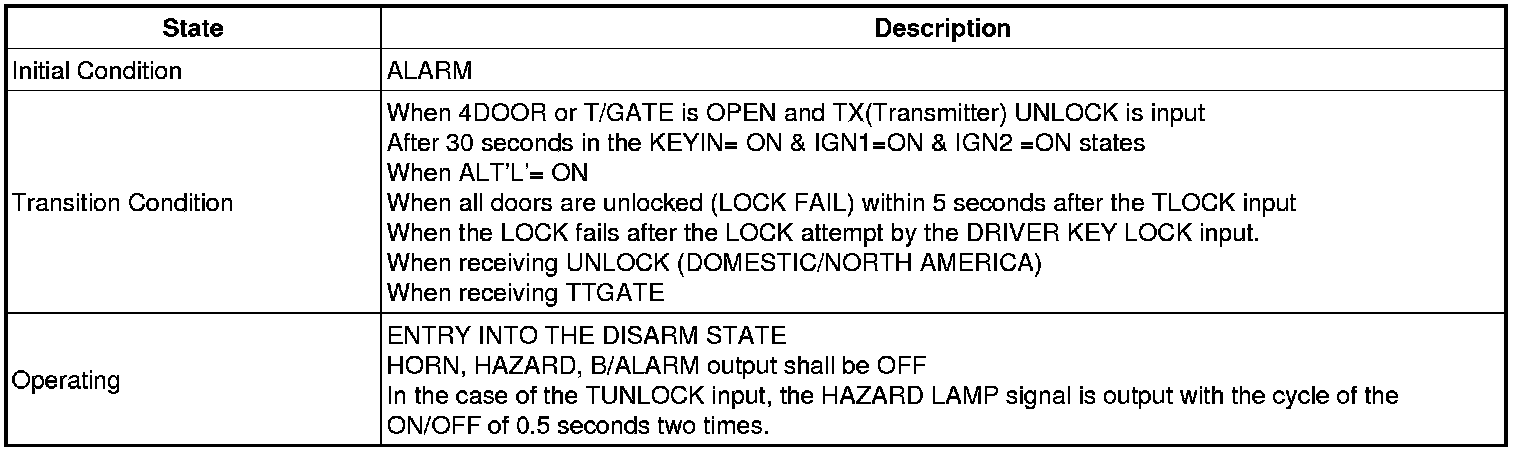

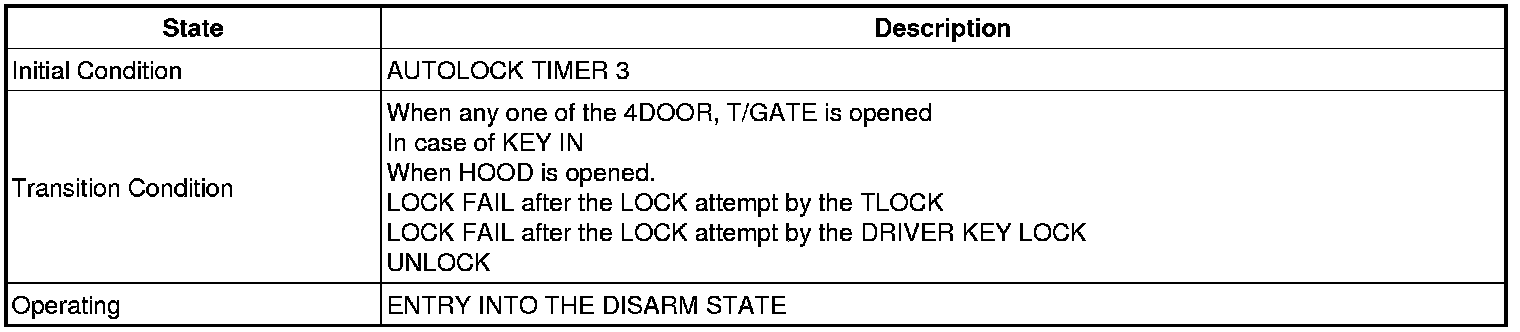

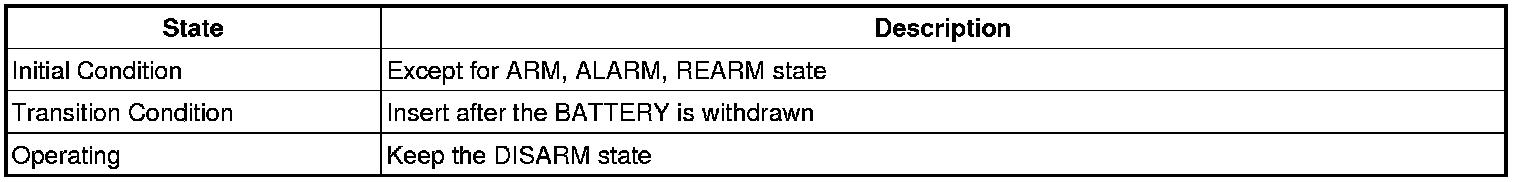

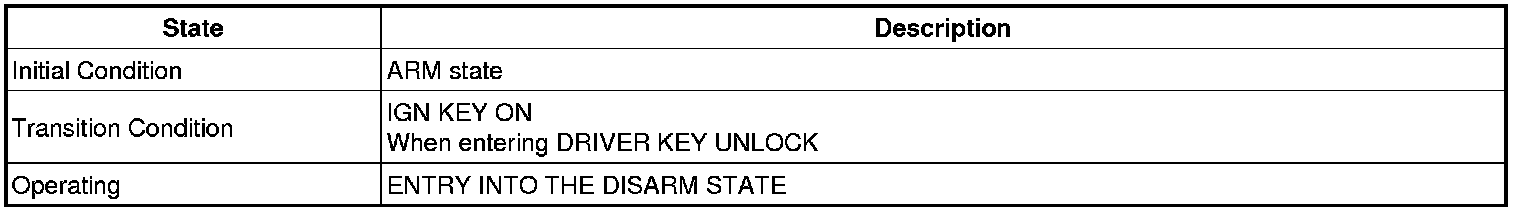

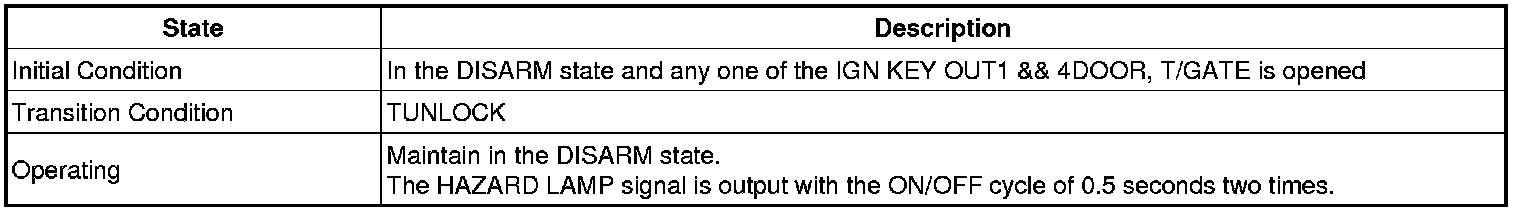

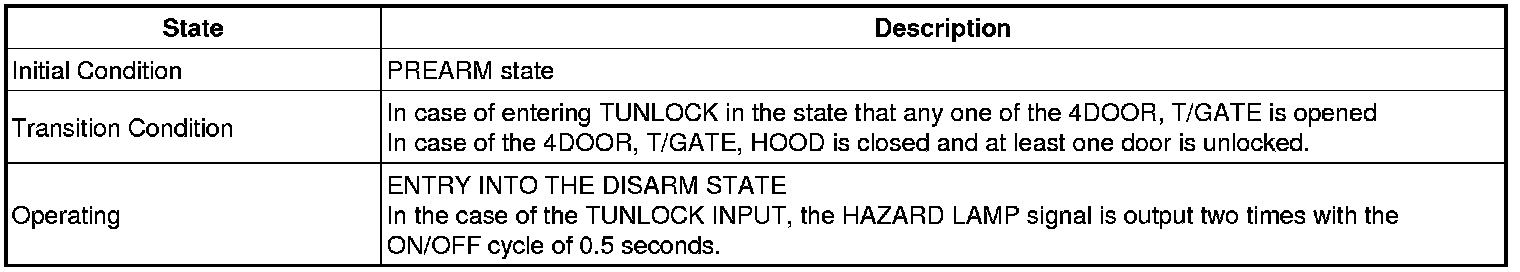

DISARM

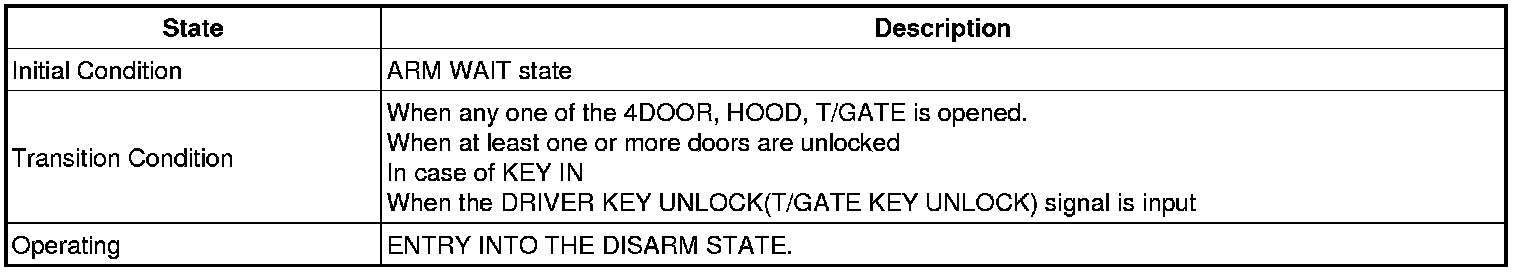

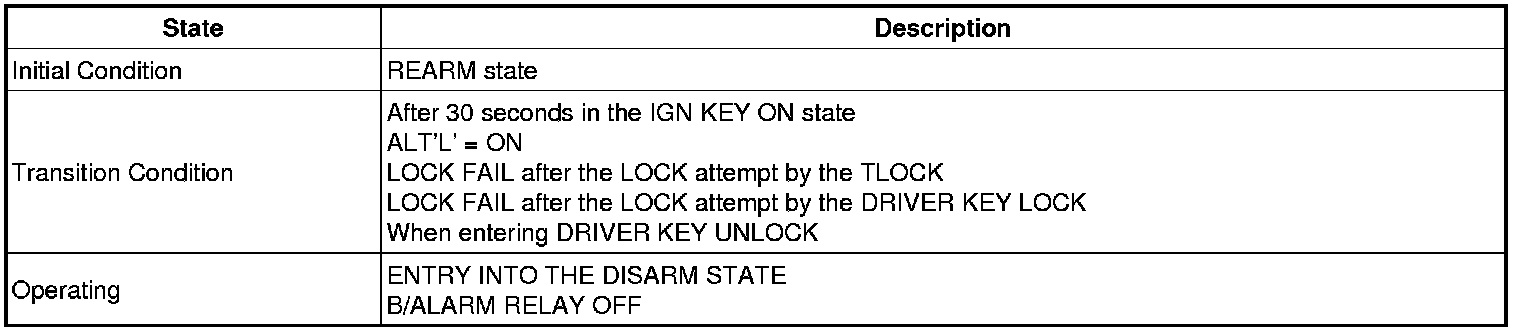

Condition 1
Condition 2
Condition 3
Condition 4
Condition 5
Condition 6
Condition 7
Condition 8
Condition 9

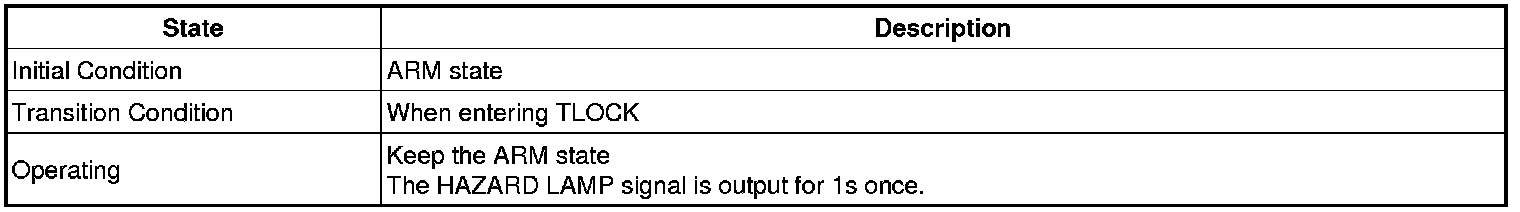

ARM

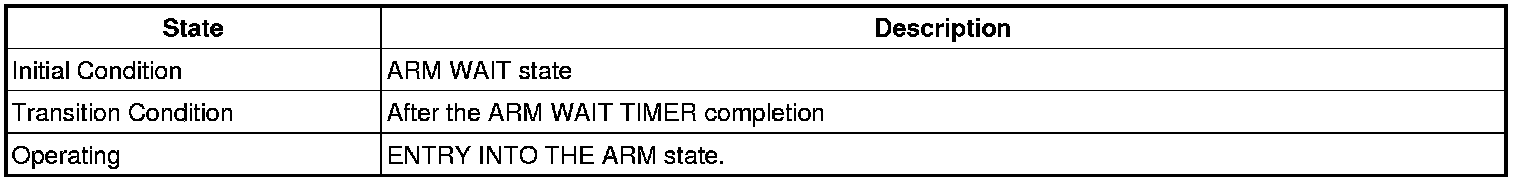

Condition 1
Condition 2

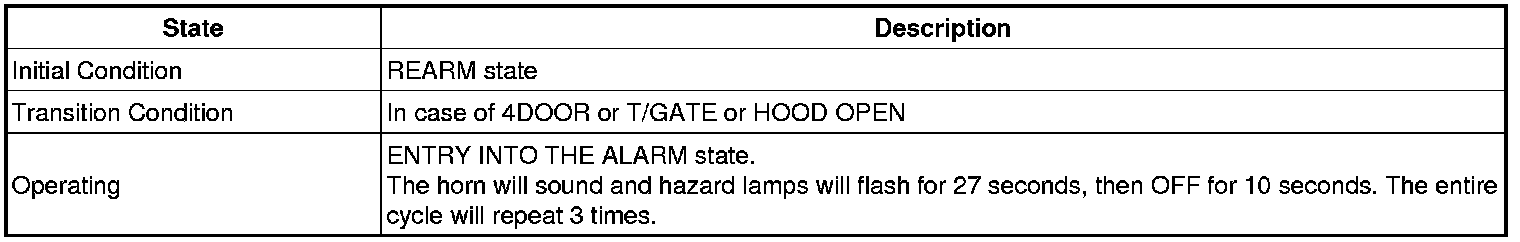

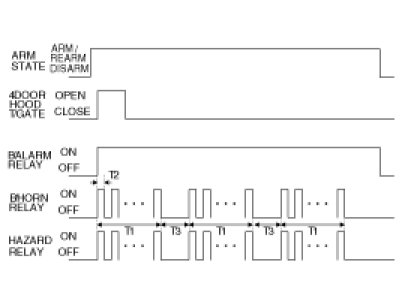

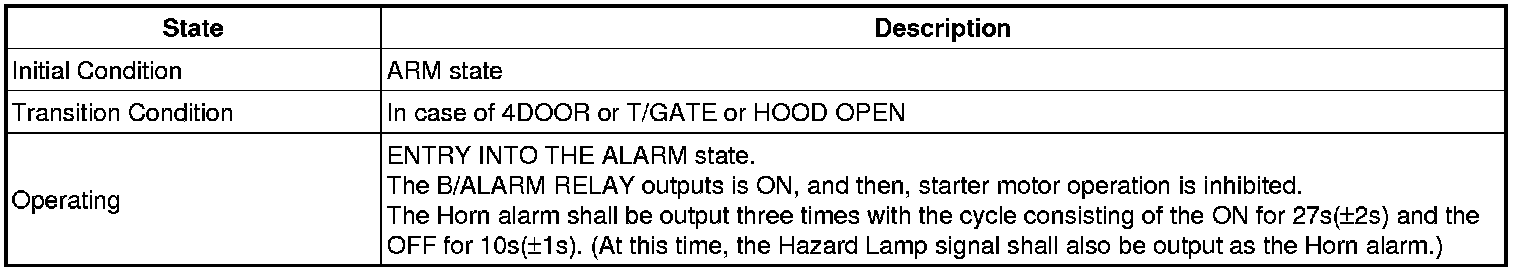

ALARM
Condition 1
Condition 2
T1 : 27 ± 2s, T2 : 0.4 - 0.5s
T3 : 10 ± 1s

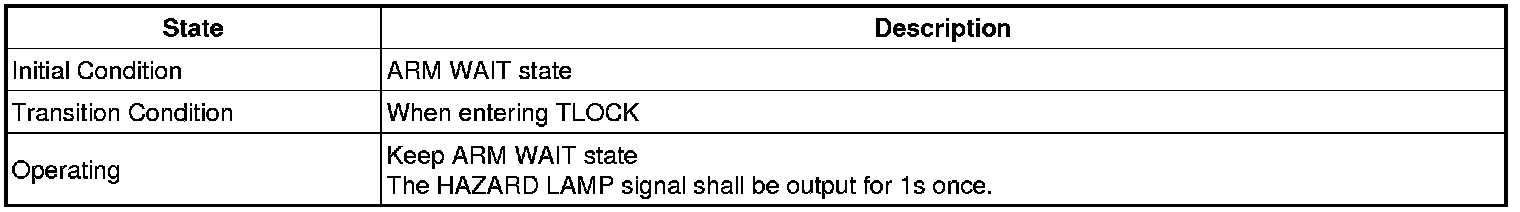

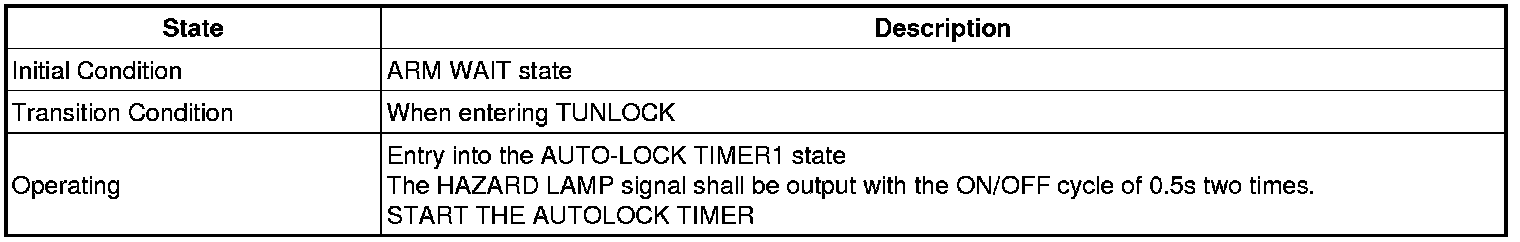

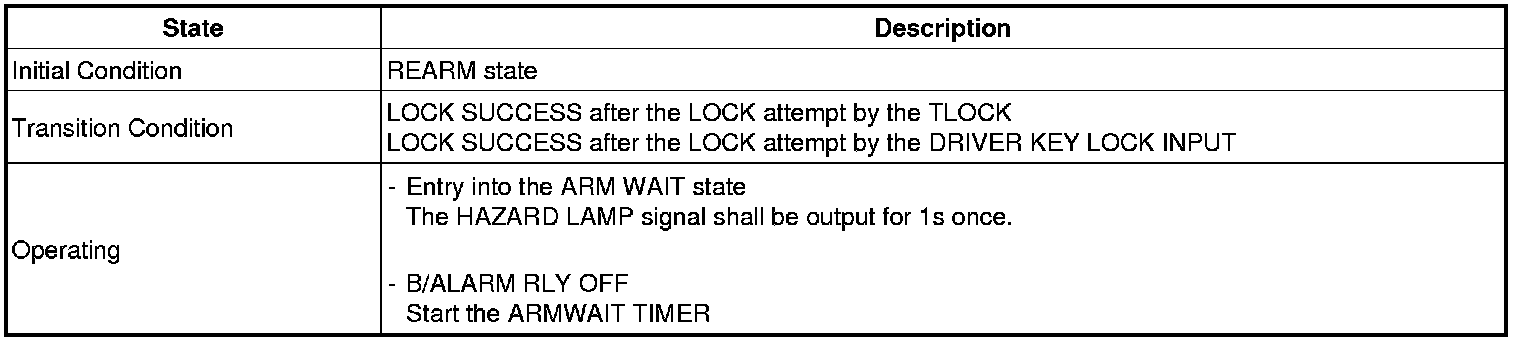

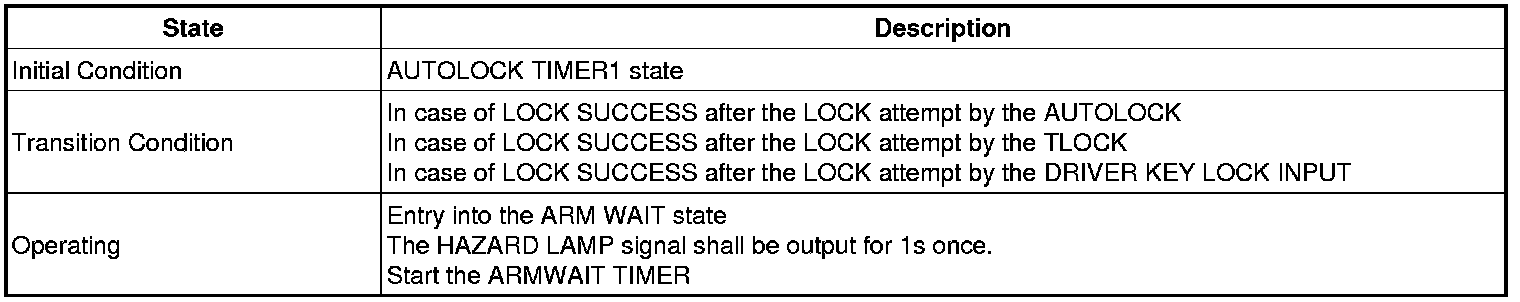

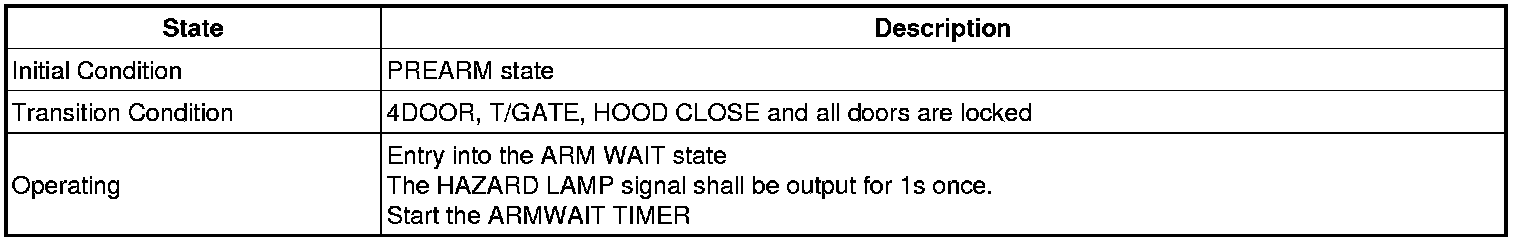

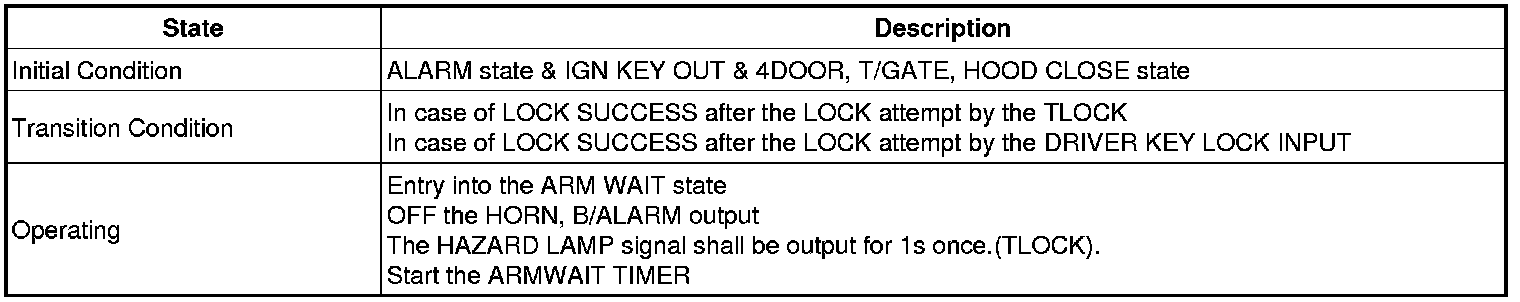

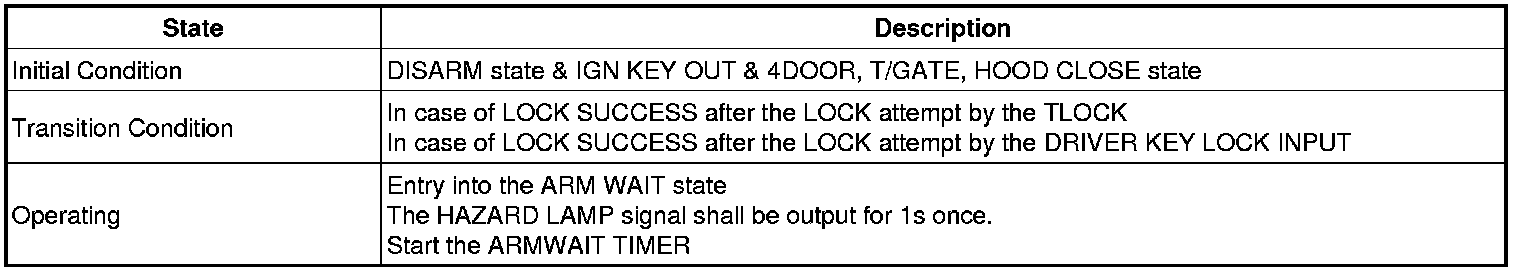

ARM WAIT

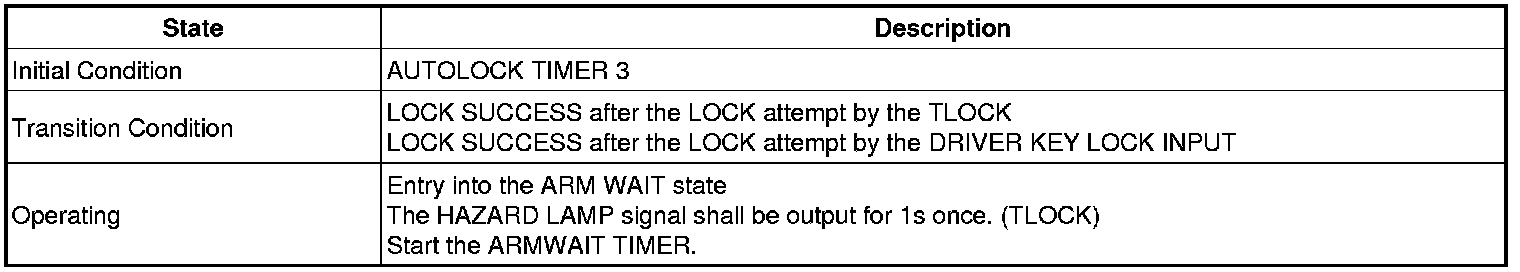

Condition 1
Condition 2
Condition 3
Condition 4
Condition 5
Condition 6
Condition 7
-> In state of all door close, When enter the state of ARMWAIT by Door Key Lock input, Hazard Lamp output does not performed
But, after Door Key Lock input, When there is Key Unlock, TLock, TUnlock, Key In, ACC, IGN1, IGN2 input , follow the Anti-theft Hazard action
REARM
Condition 1

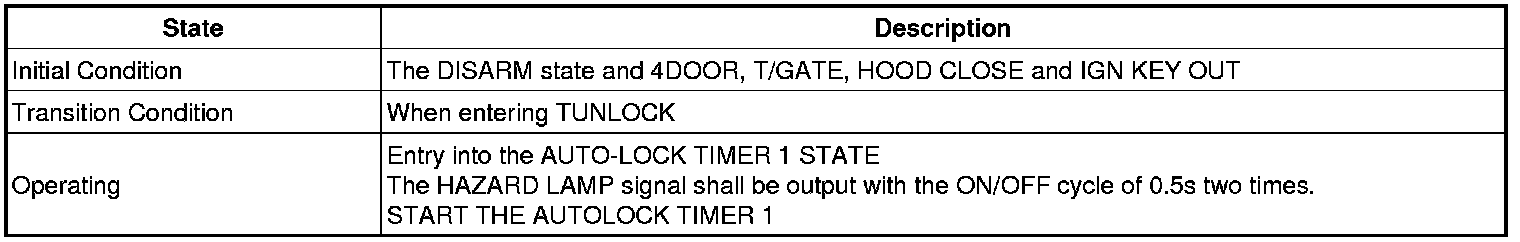

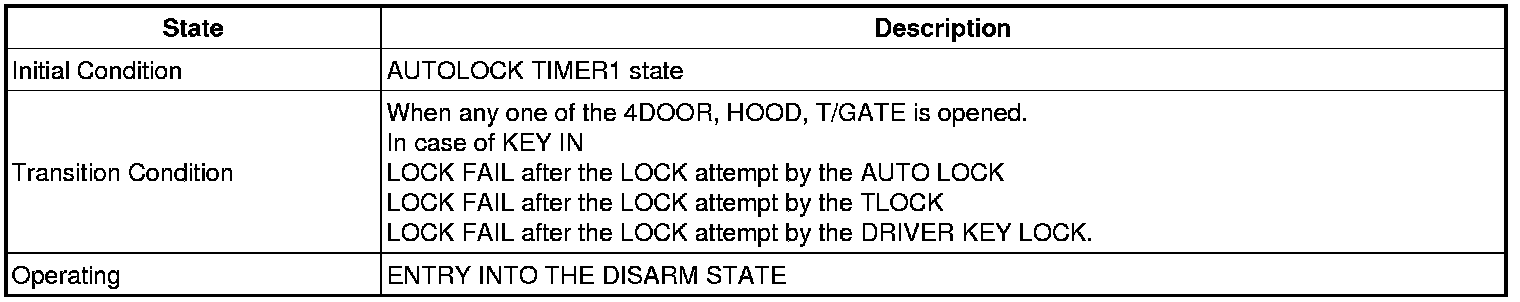

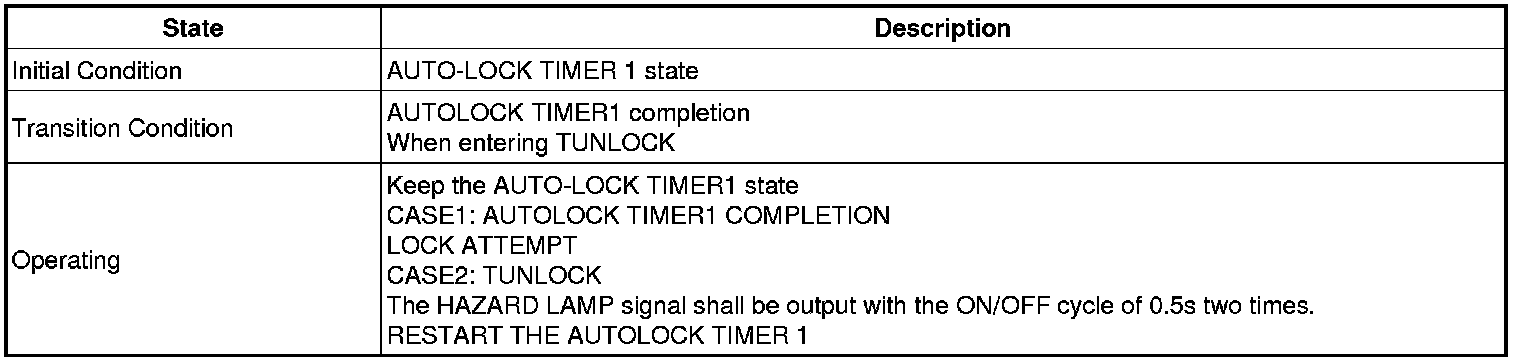

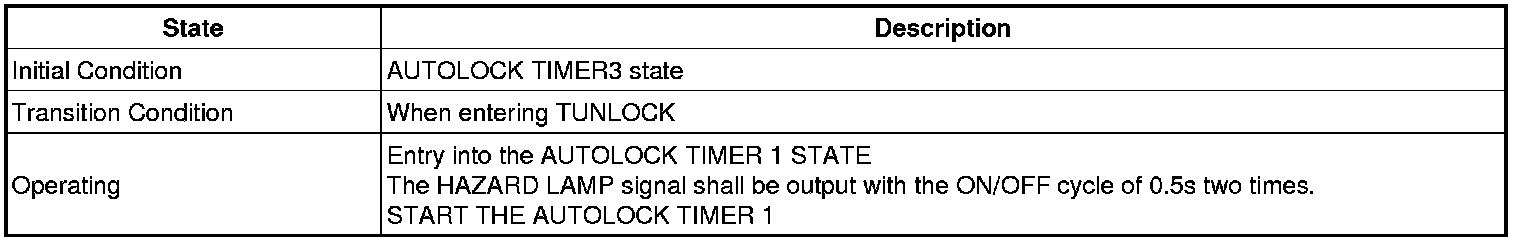

AUTO-LOCK TIMER 1

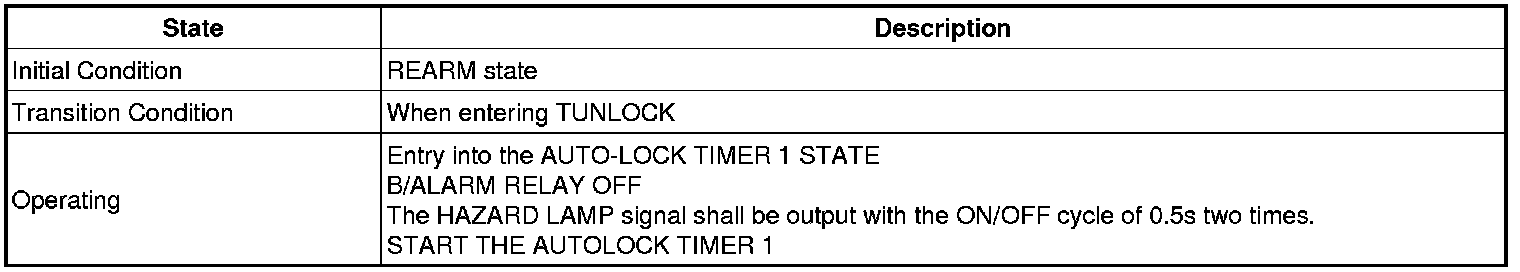

Condition 1
Condition 2
Condition 3
Condition 4
Condition 5
Condition 6
Condition 7

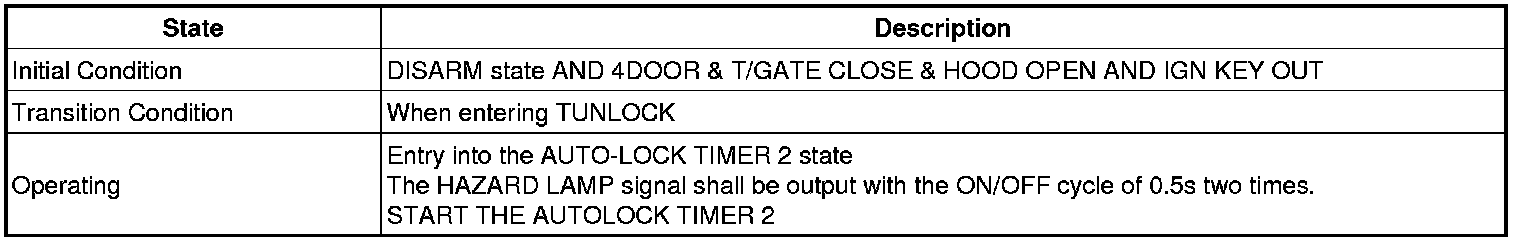

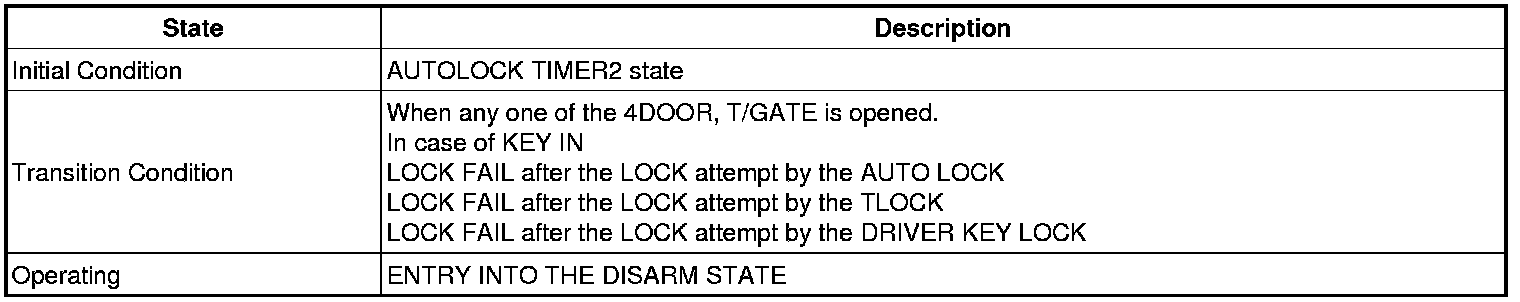

AUTO-LOCK TIMER 2
Condition 1
Condition 2
Condition 3
Condition 4

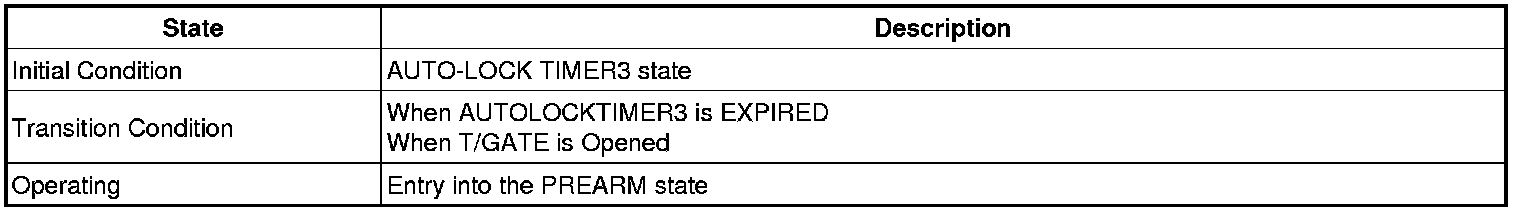

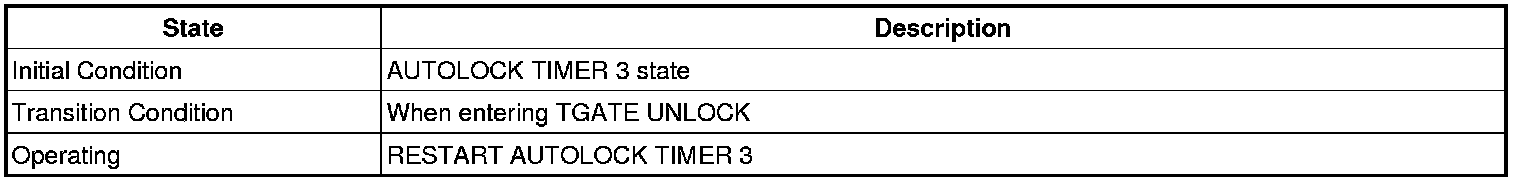

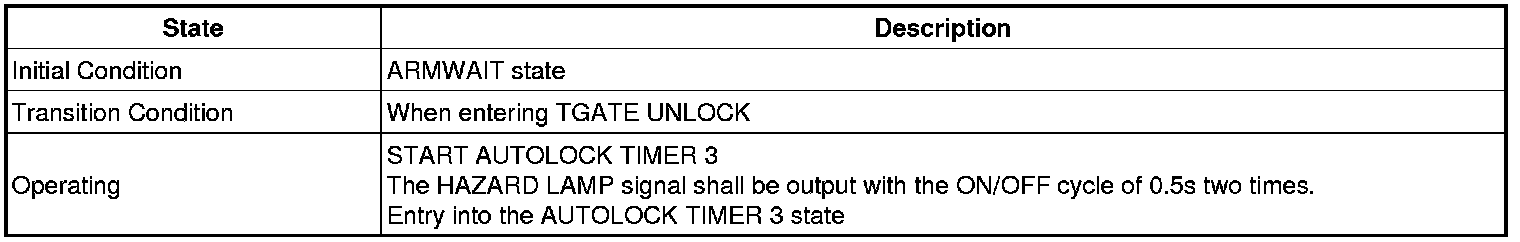

AUTOLOCK TIMER 3
Condition 1
Condition 2
Condition 3
-> In state of ARM and ARMWAIT, When entering AUTOLOCK TIMER3 by T/GATE, if HAZARD LAMP output come into conflict with "T/GATE RELEASE FUNCTION", then HAZARD LAMP output control by T/GATE RELEASE function has priority

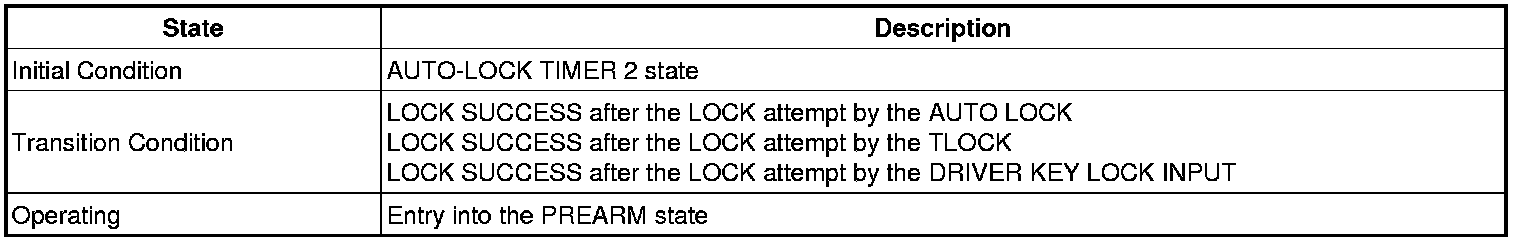

PREARM
Condition 1
Condition 2
Condition 3
Condition 4

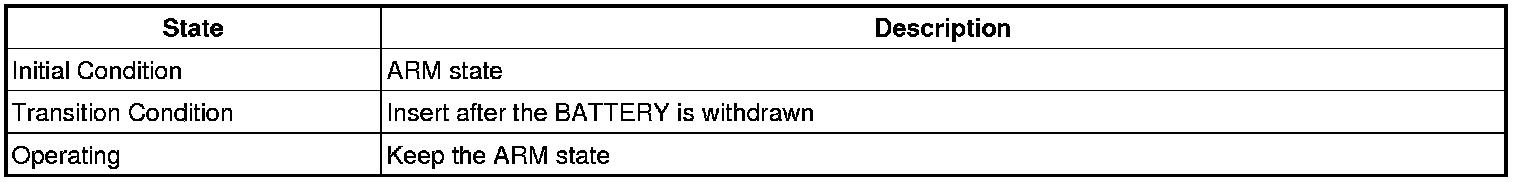

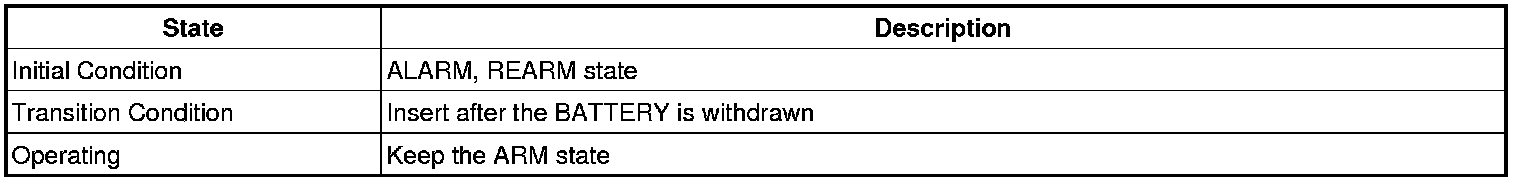

RESET
Condition 1
Condition 2
Condition 3
