Windows: Testing and Inspection
TROUBLESHOOTING

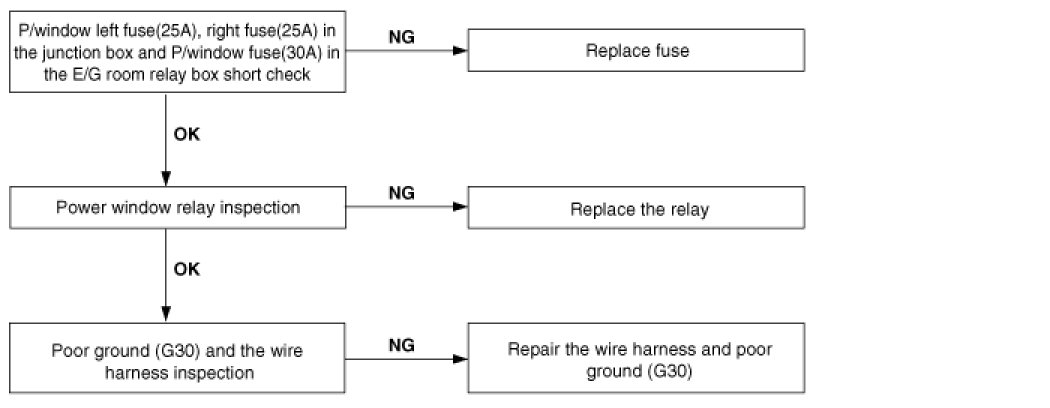

1.
No
windows
operate from the main switch on the driver door.

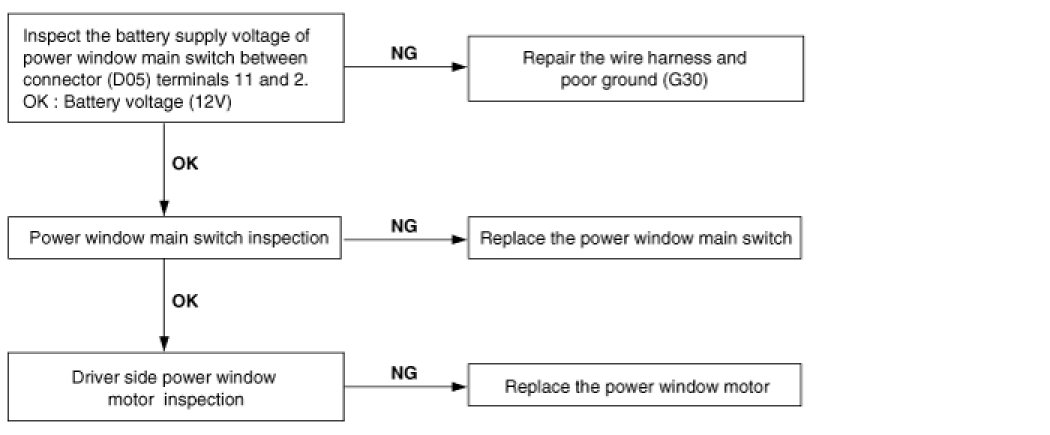

2.
Driver side window does not operate.

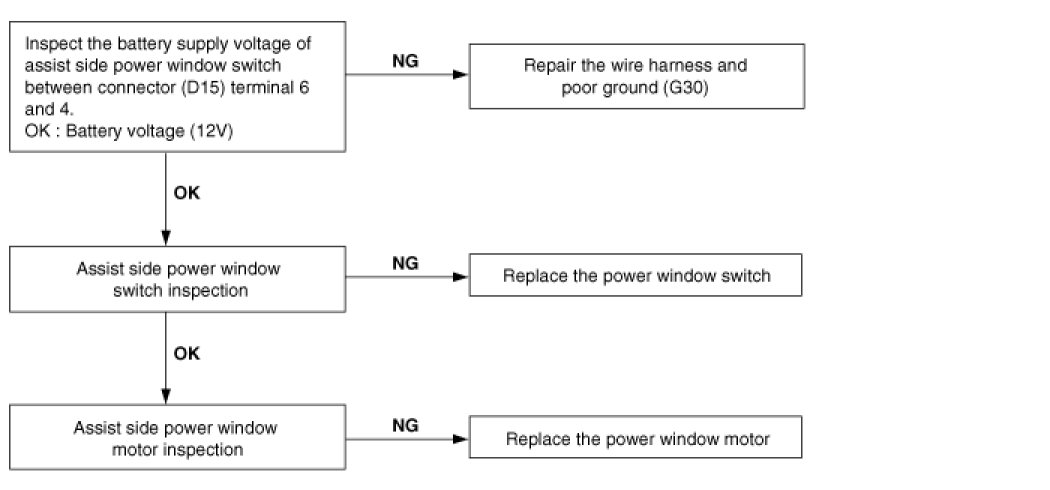

3.
Assist side window does not operate.
