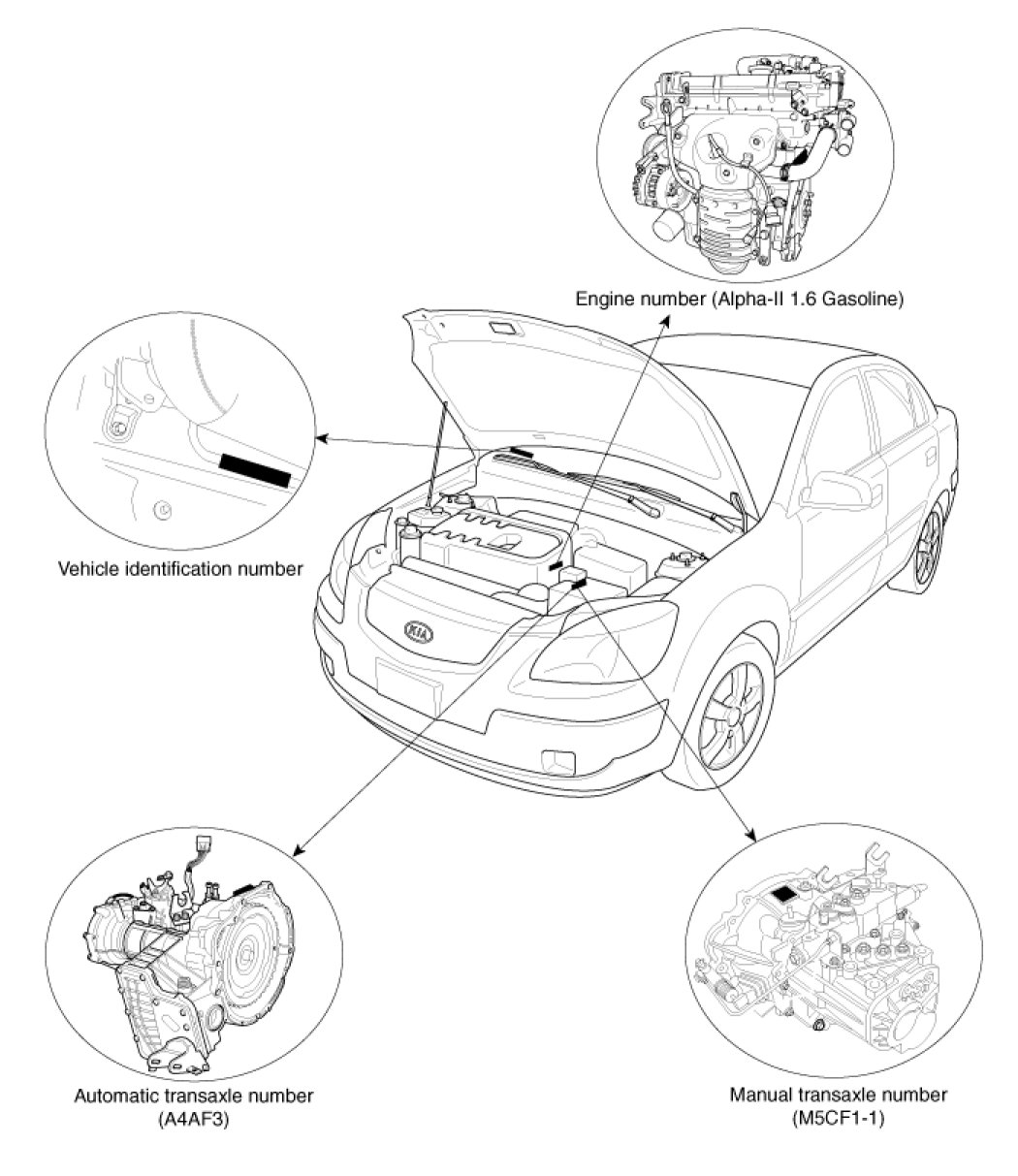

Manual Transmission/Transaxle: Application and ID

Manual

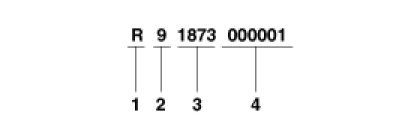

1. Model
- R = M5CF1
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio(Tooth number)
Differential drive gear tooth number / Output shaft gear tooth number
- 1873 = 73/18 = 4.056
4. Transaxle production sequence number
- 000001 - 999999
