Components and Components Location (A4AF3)

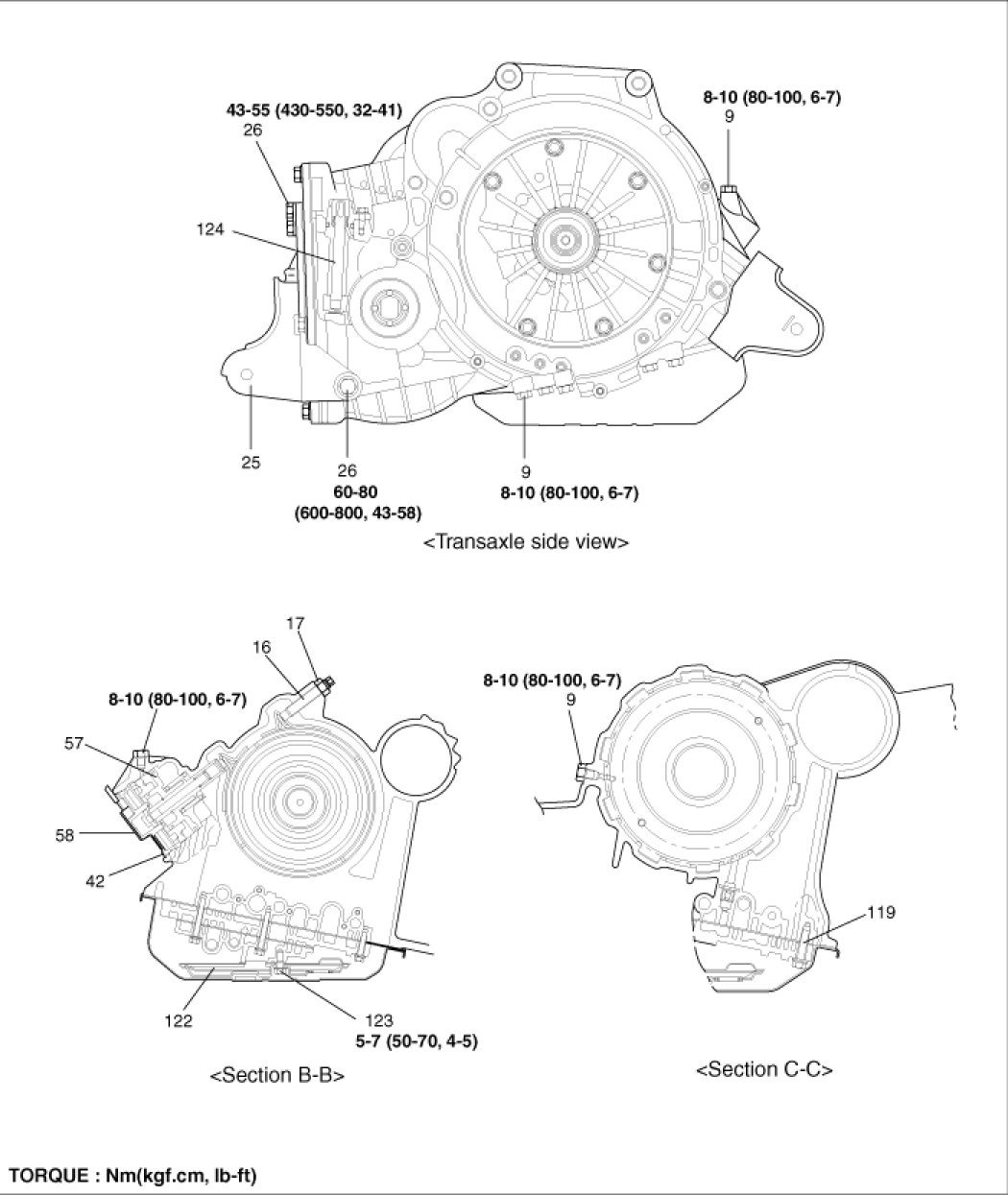

COMPONENT(1)

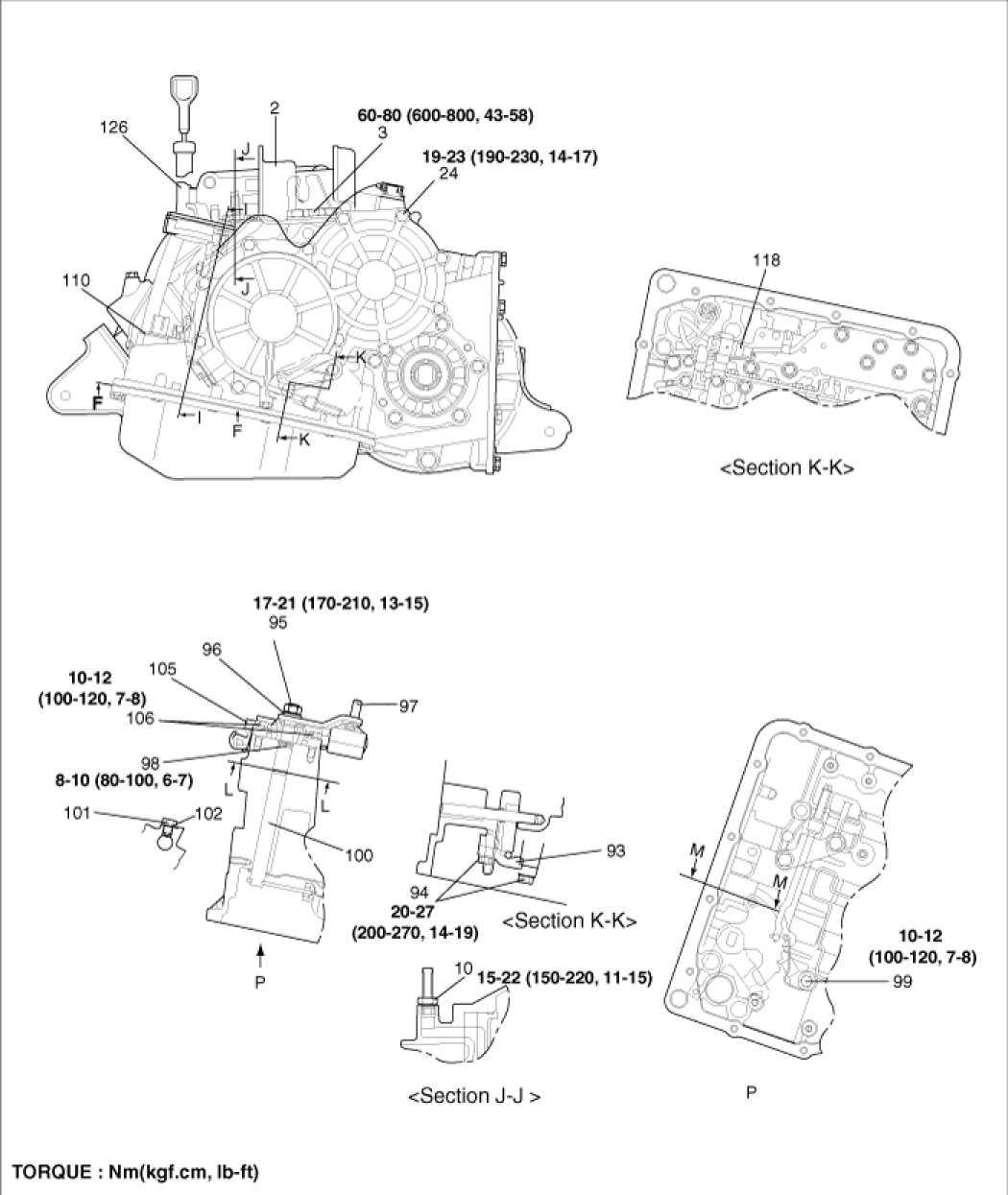

COMPONENT(2)

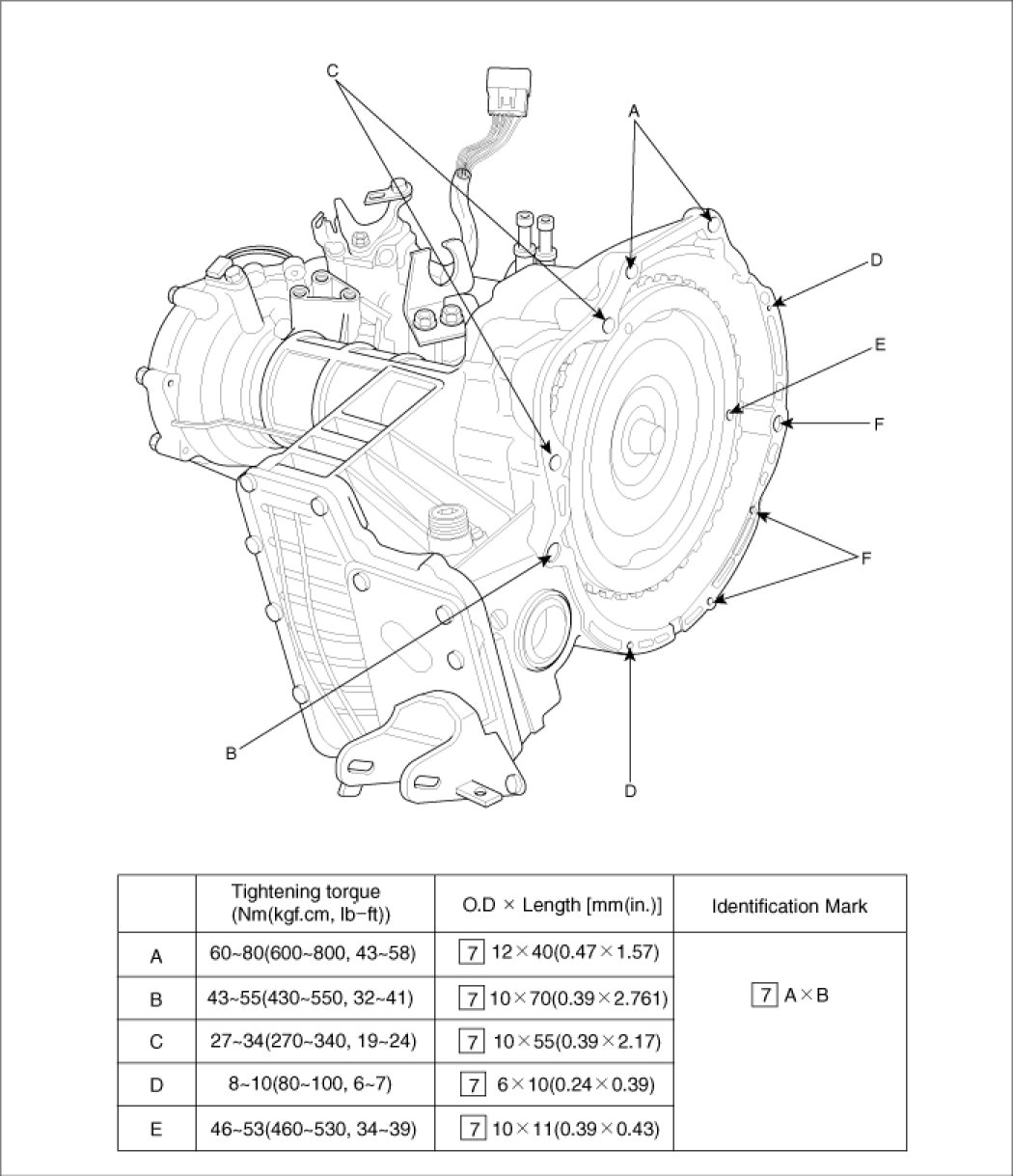

COMPONENT(3)

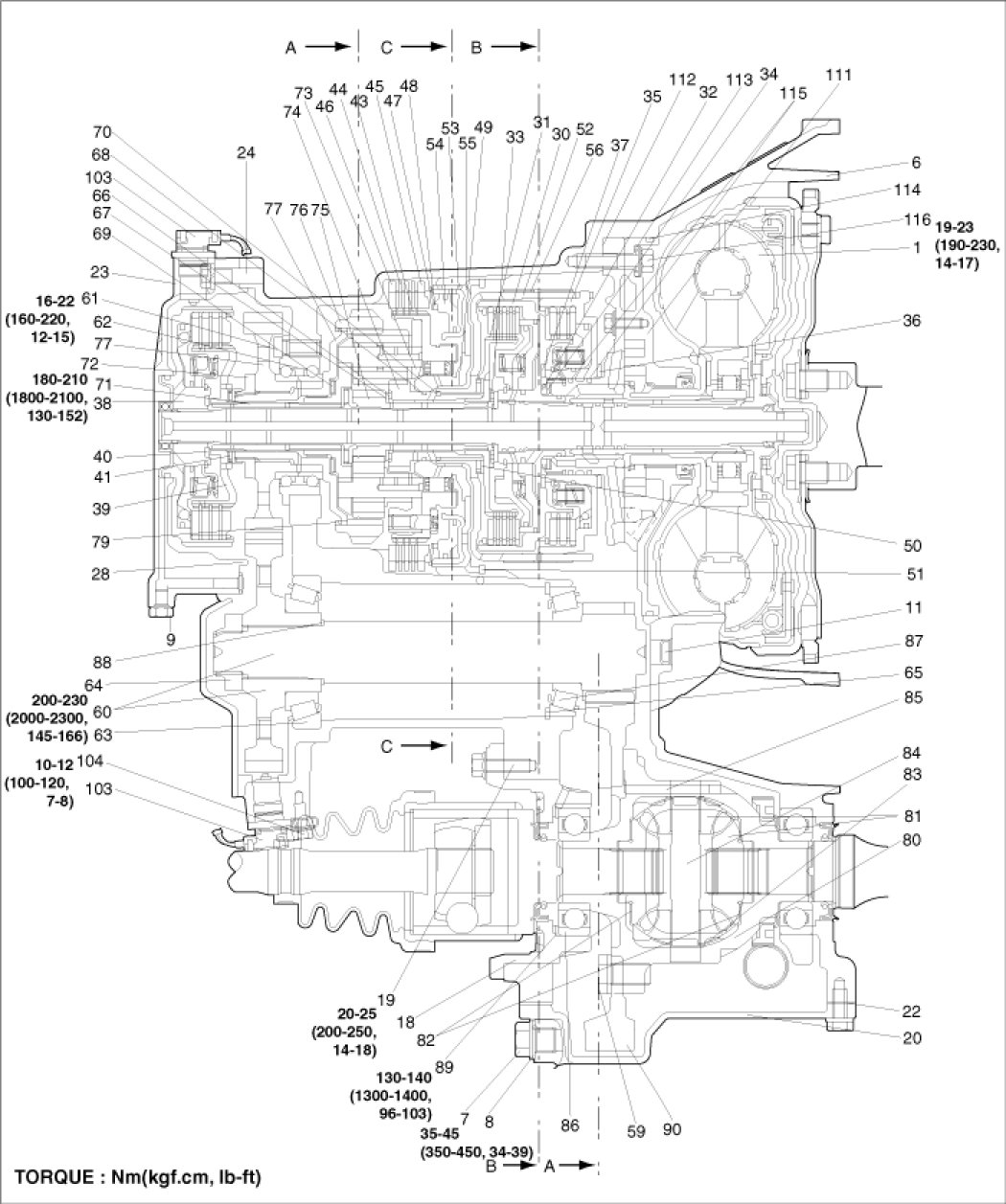

COMPONENT(4)

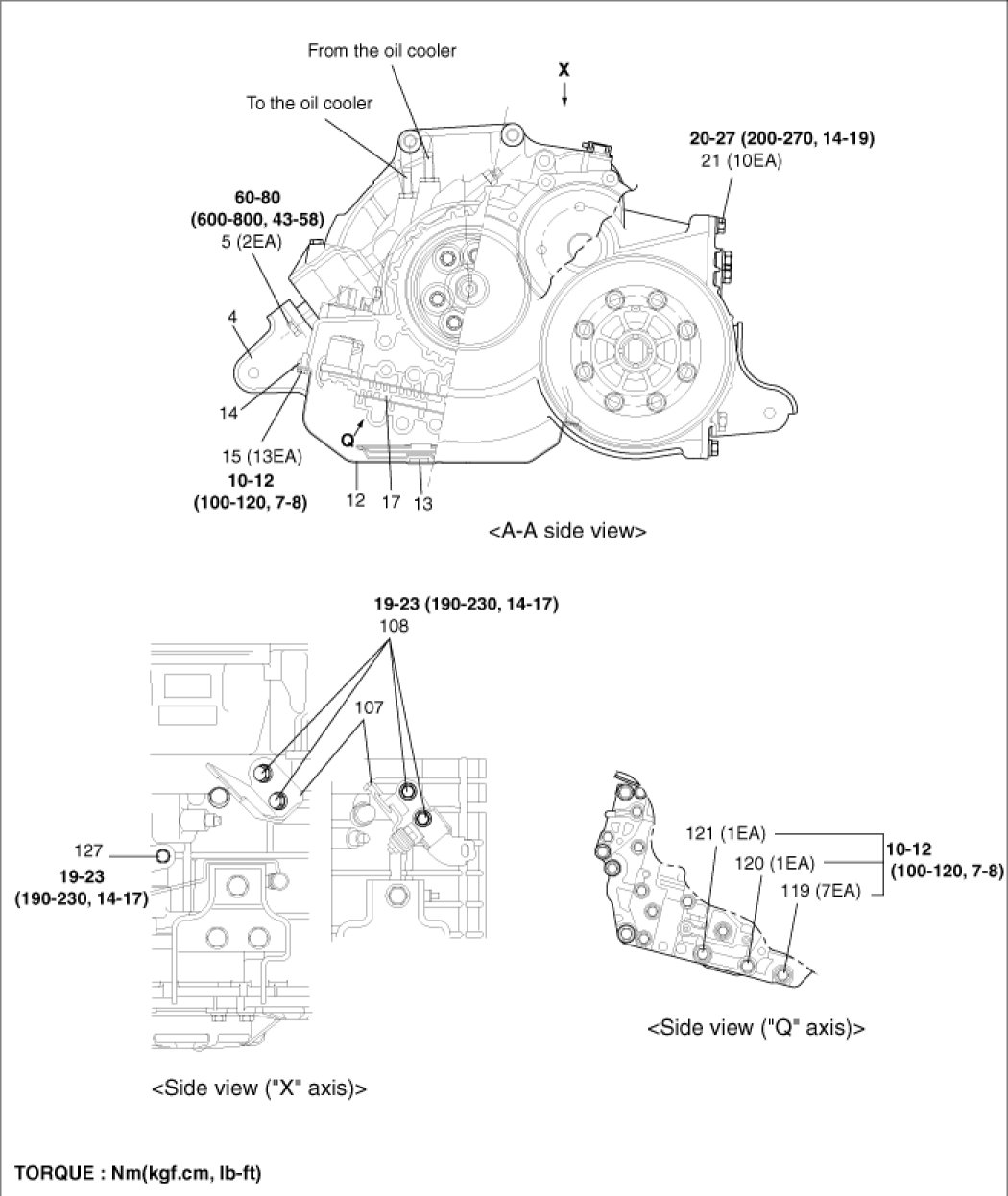

COMPONENT(5)

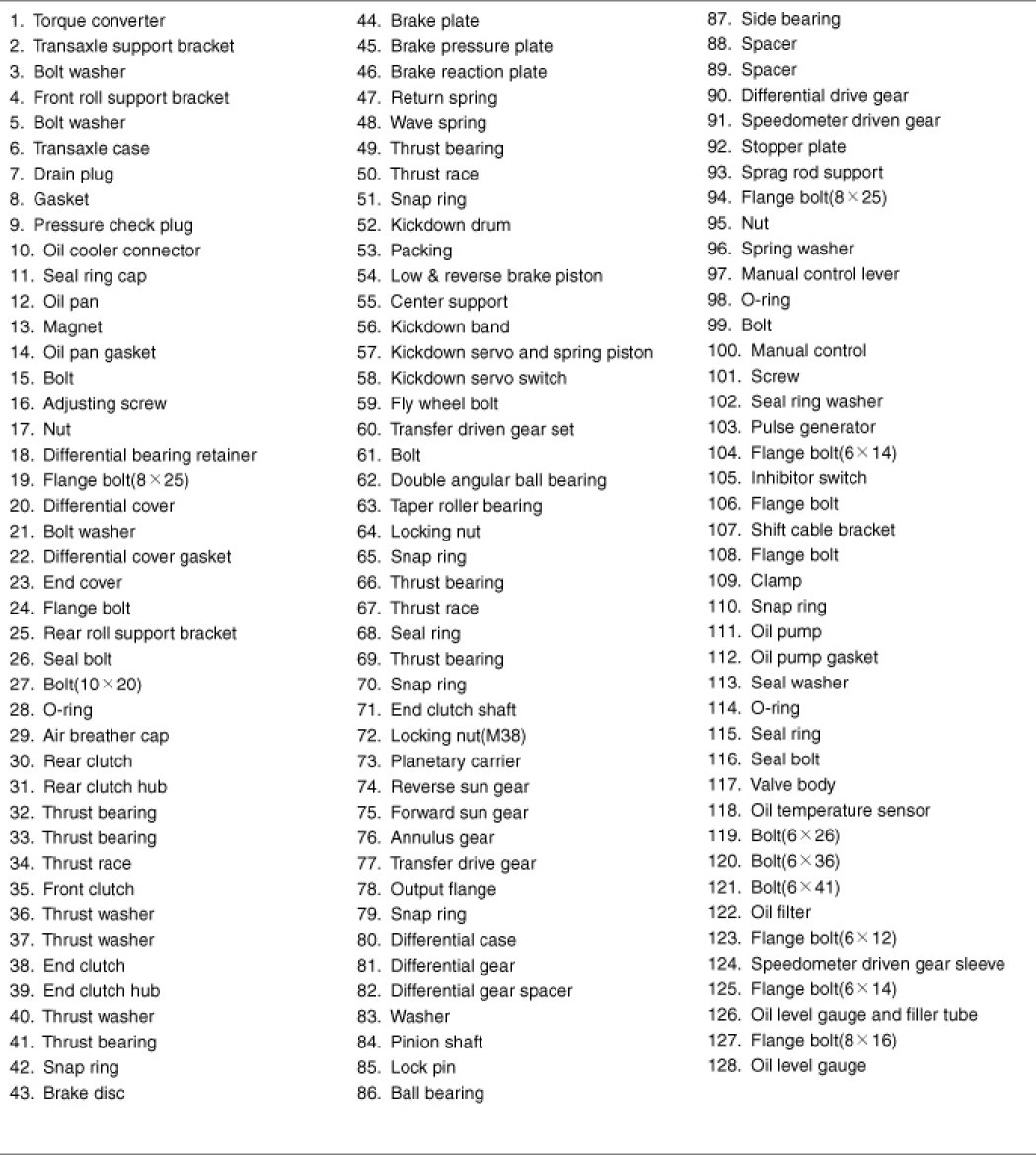

COMPONENT(6)
