Automatic Transmission/Transaxle: Application and ID

Automatic

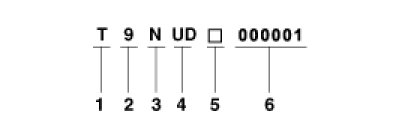

1. Model
- T = A4AF3
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio
- N = 4.041
4. Detailed classification
- UD = 1.4 DOHC
- WD = 1.6 CVVT
5. Spare
6. Transaxle production sequence number
- 000001 - 999999
