Wheel Stud / Lug Nut

WHEEL NUT TIGHTENING

Tightening torque 90 - 110 Nm (9 - 11 Kgf-m, 65 - 79 lb-ft)

CAUTION: When using an impact gun, final tightening torque should be checked using a torque wrench.

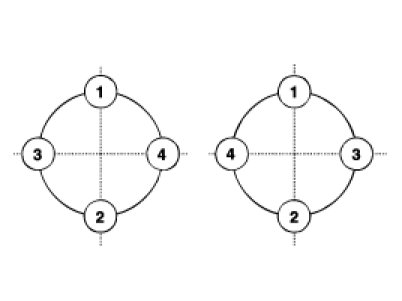

Tightening order.

Check the torque again after tightening the wheel nuts diagonally.
