System Specifications

SPECIFICATIONS

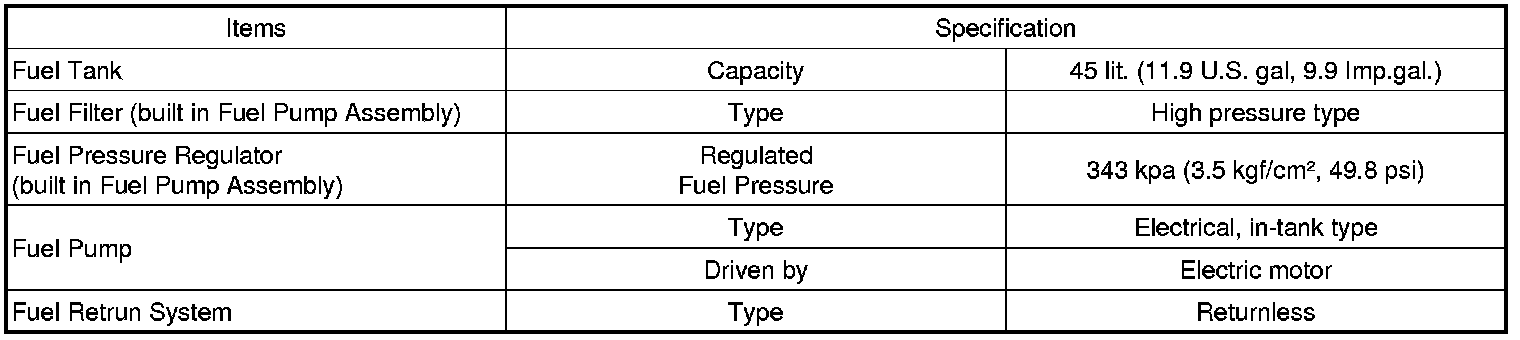

FUEL DELIVERY SYSTEM






INPUT SENSORS

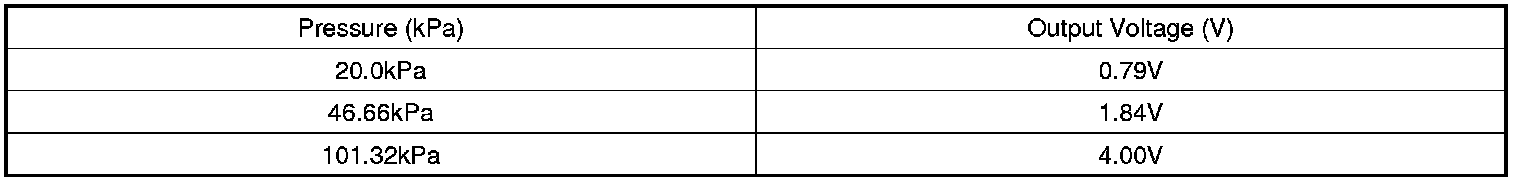

MANIFOLD ABSOLUTE PRESSURE SENSOR (MAPS)
- Type : Piezo-resistive pressure sensor type
- Specification

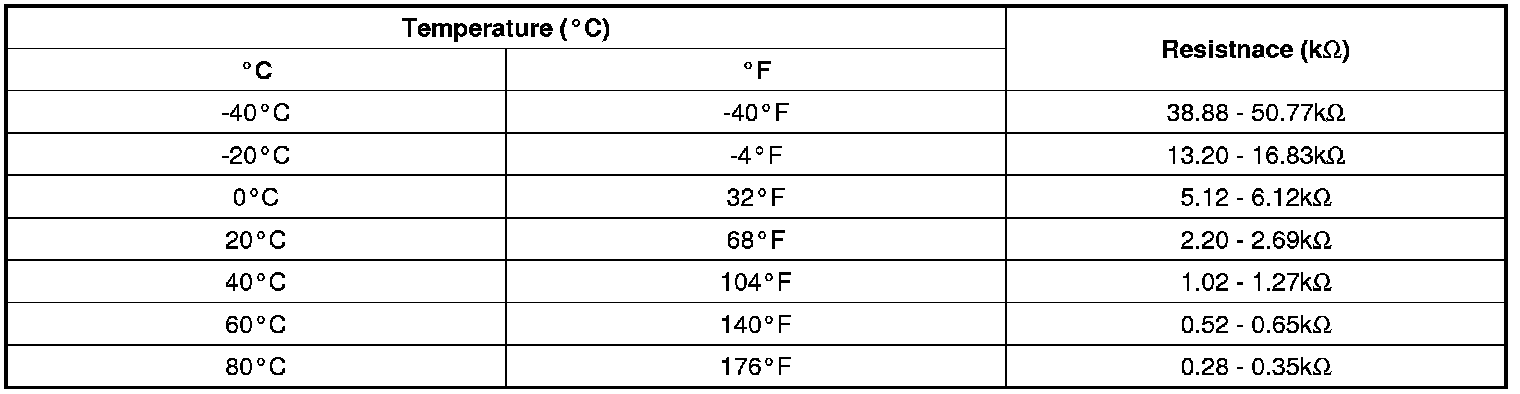

INTAKE AIR TEMPERATURE SENSOR (IATS)
- Type : Thermister type
- Specification

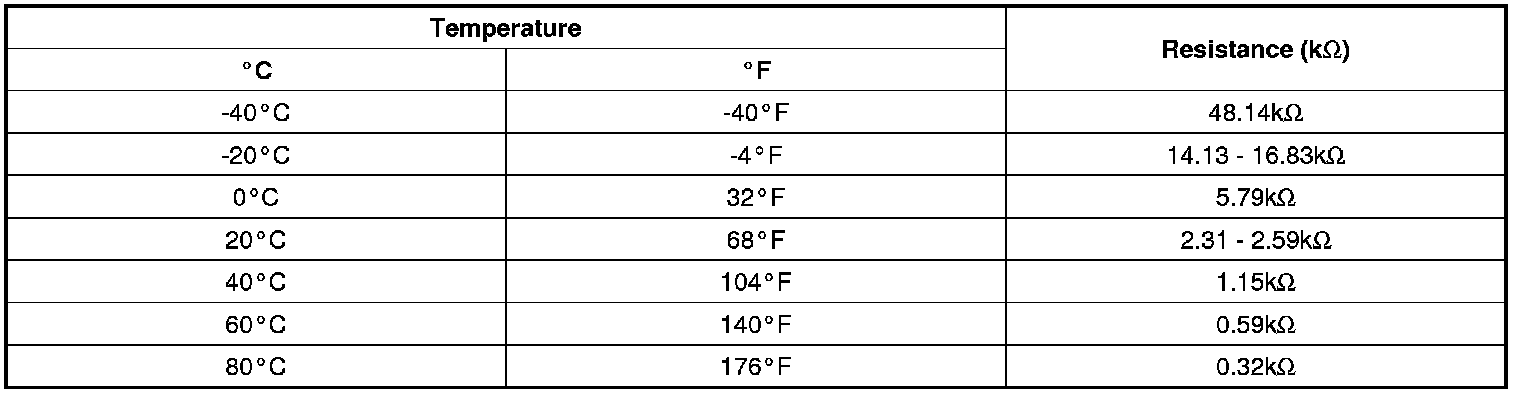

ENGINE COOLANT TEMPERATURE SENSOR (ECTS)
- Type: Thermister type
- Specification

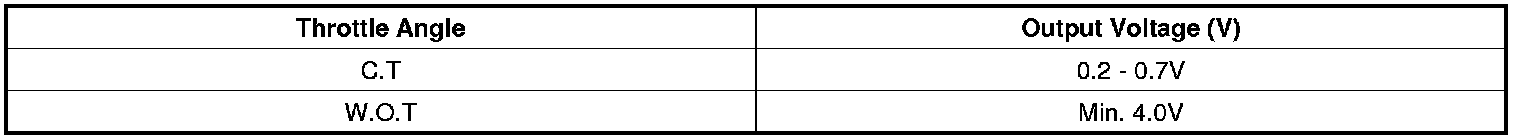

THROTTLE POSITION SENSOR (TPS)
- Type: Variable resistor type
- Specification

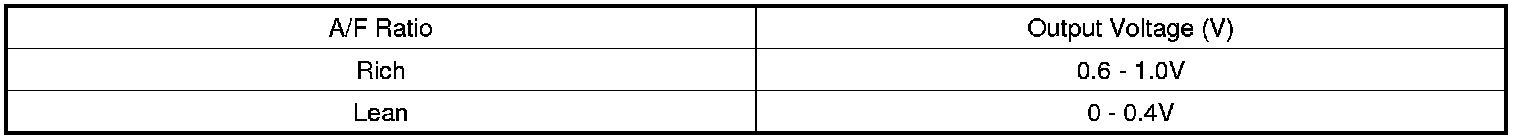

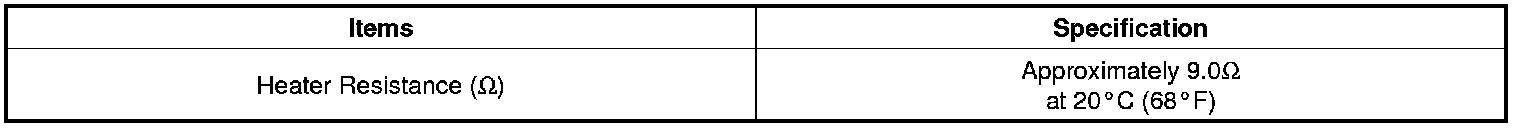

HEATED OXYGEN SENSOR (HO2S)
- Type: Zirconia (ZrO2) Type
- Specification











CAMSHAFT POSITION SENSOR (CMPS)
- Type: Hall effect type

CRANKSHAFT POSITION SENSOR (CKPS)
- Type: Magnetic field sensitive Type

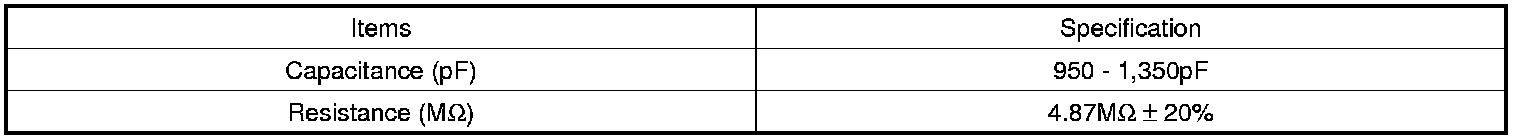

KNOCK SENSOR (KS)
- Type: Piezo-electricity type
- Specification

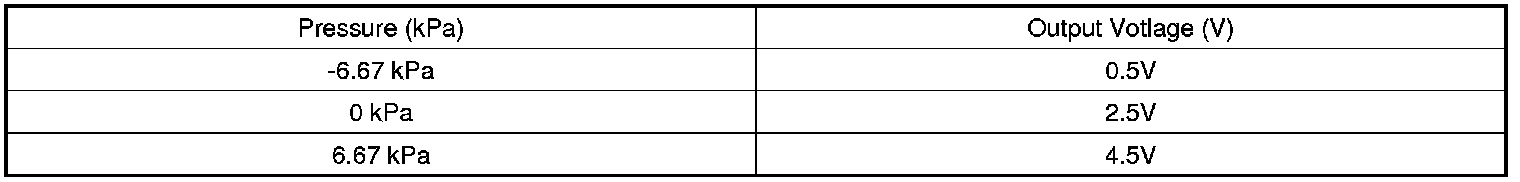

FUEL TANK PRESSURE SENSOR (FTPS)
- Type : Piezo-Resistivity type
- Specification






OUTPUT ACTUATORS

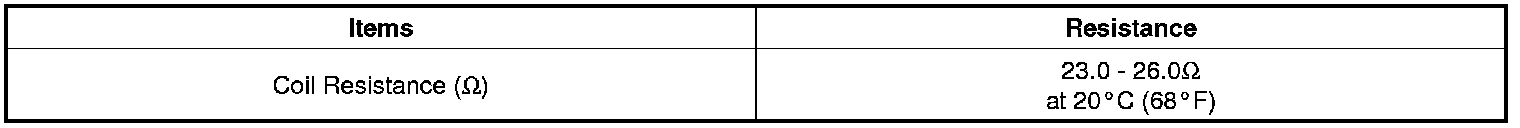

INJECTOR
- Number: 4
- Specification

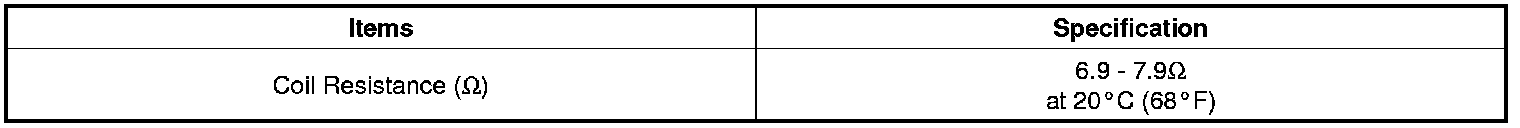

IDLE SPEED CONTROL ACTUATOR (ISCA)
- Type: Double coil type
- Specification






PURGE CONTROL SOLENOID VALVE (PCSV)
- Specification






CVVT OIL CONTROL VALVE (OCV)
- Specification

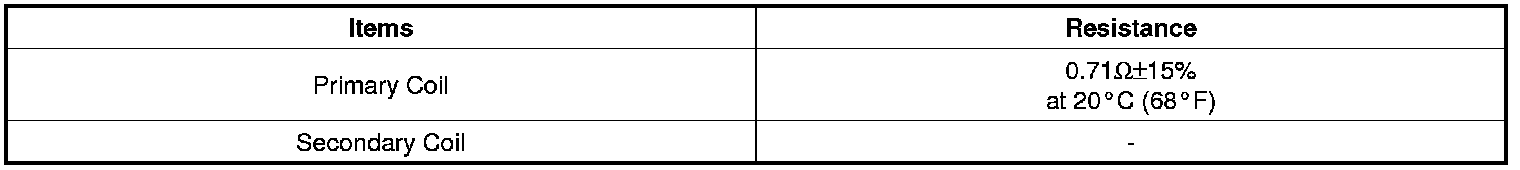

IGNITION COIL
- Type : Stick type
- Specification






CANISTER CLOSE VALVE (CCV)
- Type: ON/OFF control type
- Specification

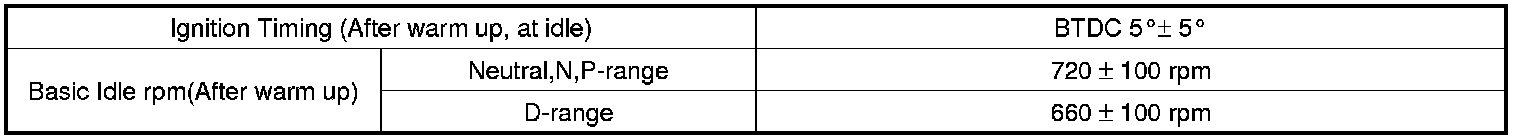

SERVICE STANDARD

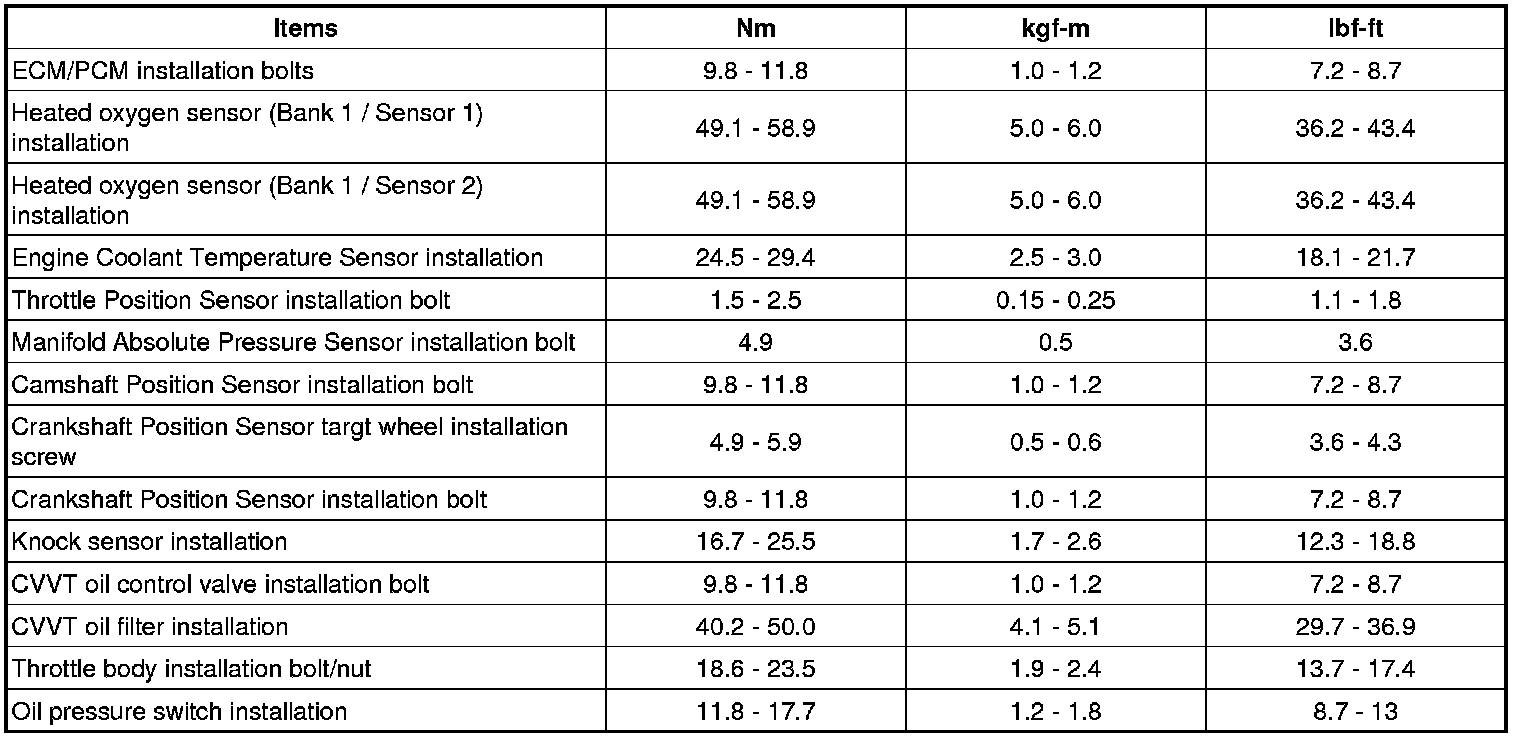

TIGHTENING TORQUES

ENGINE CONTROL SYSTEM





FUEL DELIVERY SYSTEM
