Specifications
>>
Mechanical Specifications
>>
Engine
>>

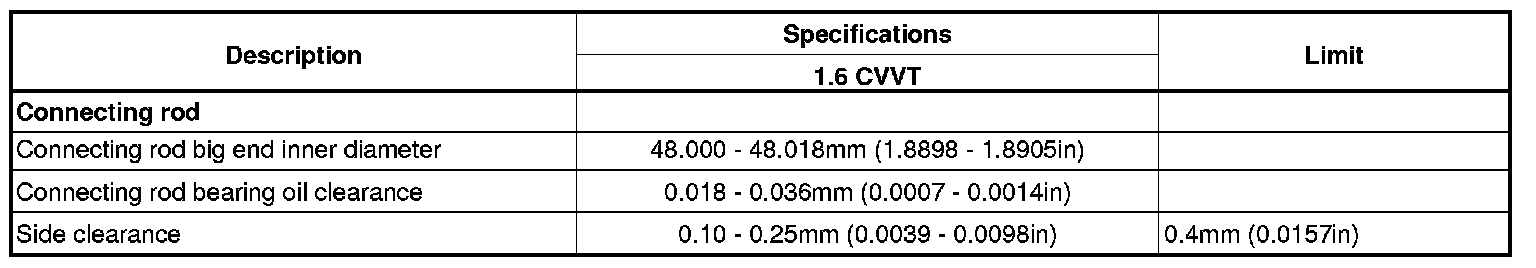

Connecting Rod, Engine
Connecting Rod, Engine
Connecting Rod
Connecting Rod Bearing Cap
Tightening torque
31.4 - 34.3 N.m (3.2 - 3.5 kgf.m, 23.1 - 25.3 lb-ft)
