Repair Procedures

REPLACEMENT

FRONT SEAT BELT REPLACEMENT

CAUTION:
- When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items first.
A. Front seat assembly.
B. Front and rear door scuff trim.
2. After raise the lower anchor cover (A), loosen the lower anchor mounting bolt (B).




3. Remove the center pillar lower trim.
4. Remove the center pillar upper trim.

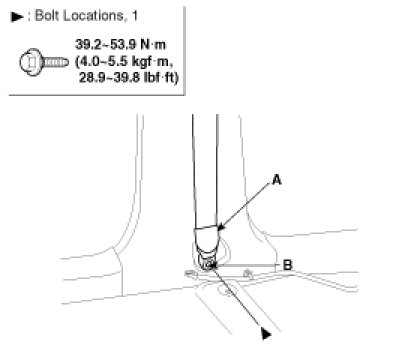

5. Remove the upper anchor (A).
6. After disconnecting the pretensioner connector lock pin, remove the connector(B), Loosen the mounting bolt, then remove the pretensioner (C).





REAR SEAT BELT REPLACEMENT

CAUTION:
- When installing the belt, make sure not to damage the pretensioner.

1. Remove the following items first.
A. Rear seat assembly.
B. Front and rear door scuff trim.
C. Rear pillar trim.
2. Remove the lower anchor (A).
3. Remove the package tray trim.

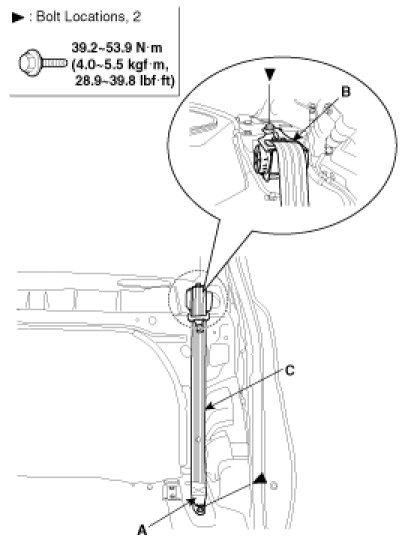

4. After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).





REAR CENTER SEAT BELT REPLACEMENT
1. Remove the following items first.
A. Rear seat assemble.
B. Rear wheel guard and rear door scuff trim.
C. Rear pillar trim.
D. Package tray.

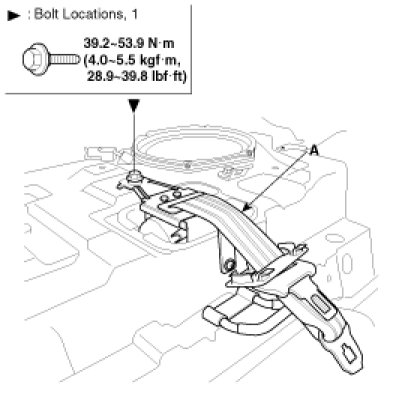

2. Remove the rear center seat belt(A).




3. Installation is the reverse of removal.

FRONT SEAT BELT BUCKLE REPLACEMENT
1. Remove the following items first.
A. Front seat assembly.
2. Remove the recliner cover(C).

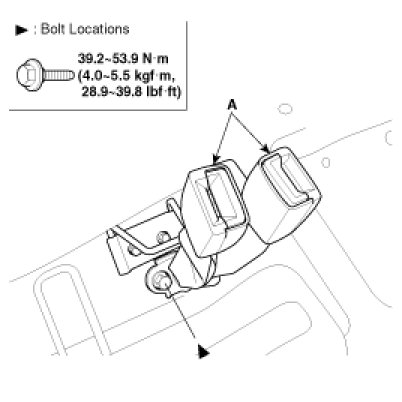

3. Remove the seat belt buckle(A).




4. Installation is the reverse of removal.

REAR SEAT BELT BUCKLE REPLACEMENT
1. After cushion frame hinge mounting bolt, fold the cushion.

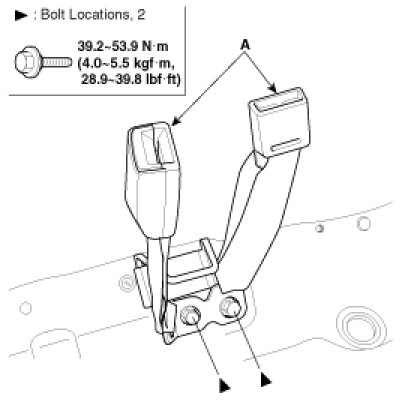

2. Remove the seat belt buckle (A).
3. Installation is the reverse of removal.









HEIGHT ADJUSTER REPLACEMENT
1. Remove the following items first.
A. Front assembly.
B. Front and rear door scuff trim.
C. Front seat belt upper and lower anchor.
D. Center pillar lower and upper trim.

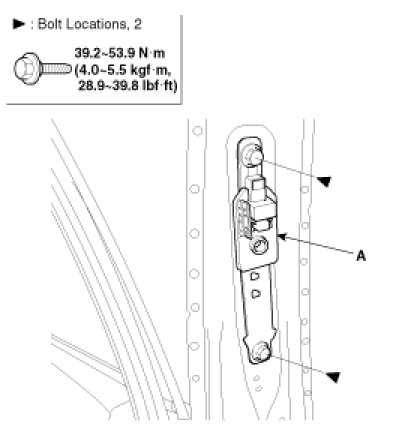

2. Loosen the mounting bolt, then remove the height adjuster (A).




3. Installation is the reverse of removal.
