Campaign SA042 - ECM Update For Improved A/T Shift Logic
GROUP: TRANSMISSIONNUMBER: 032
MODEL: 2010-11 RIO (JB)
DATE: JULY 2010
SUBJECT:
SERVICE ACTION: PCM UPGRADE FOR TRANSMISSION LOGIC TO IMPROVE FUEL EFFICIENCY / CRUISE CONTROL (SA042)
This bulletin provides the procedure to upgrade the Powertrain Control Module (PCM) of some 2010 and 2011 Model Year Rio (JB) vehicles with automatic transaxle produced between August 2009 through May 2010. This reflash has enhanced shift control logic to improve performance,increase fuel efficiency and improve cruise control.
For confirmation that the latest reflash has been performed to a vehicle you are working on, verify ROM ID using the tables in this TSB.
To correct this condition, the PCM should be reprogrammed using the GDS download as described in this bulletin.

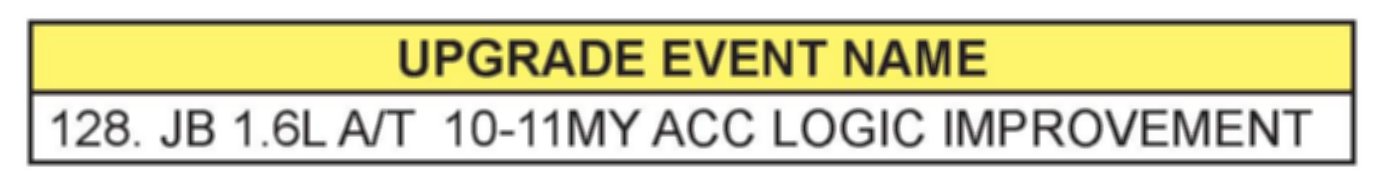

UPGRADE EVENT NAME
NOTICE
A Service Action is a repair program without customer notification that is performed during the warranty period. Any dealer request to perform this repair outside the warranty period will require DPSM approval.
Repair status for a VIN is provided on WebDCS (Service>Warranty Coverage> Warranty Coverage Inquiry>Campaign Information). Not Completed Recall/Service Action reports are available on WebDCS (Consumer Affairs>Not Completed Recall Recall VIN>Select Report).
The issue number is SA042.
NOTICE
^ A fully charged battery is necessary before PCM upgrade can take place. DO NOT connect a battery charger to the vehicle during PCM upgrade. Make sure the blower motor is "OFF" during PCM upgrade.
^ All PCM upgrades must be done with the ignition key in the "ON" position.
^ Be careful not to disconnect any cables connected to the vehicle or GDS during the PCM upgrade procedure.
^ DO NOT start the engine during PCM upgrade.
^ DO NOT turn the ignition key "OFF" or interrupt the power supply during PCM upgrade.
^ When the PCM upgrade is completed, turn the ignition key "OFF" and wait 20 seconds before starting the engine.
^ ONLY use approved PCM upgrade software designated for the correct model, year and engine size. Failure to do so may create other driveability issues due to the use of the incorrect PCM calibration.

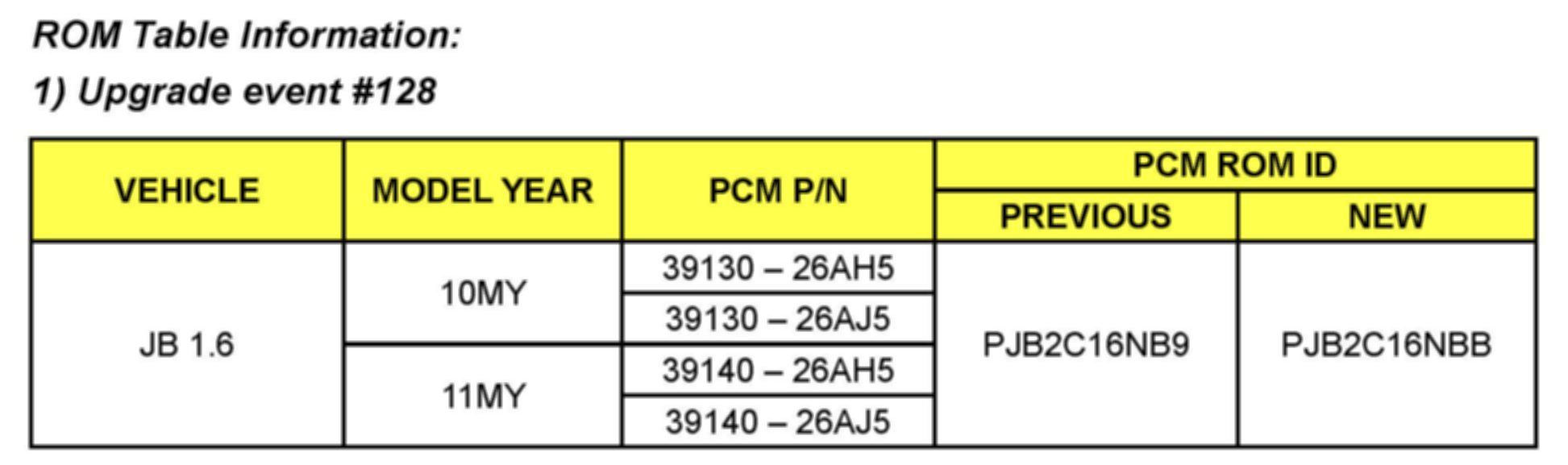

ROM Table Information
To verify the vehicle is affected, be sure to check the Calibration Identification of the vehicle's PCM's ROM ID and reference the Information Table as necessary.

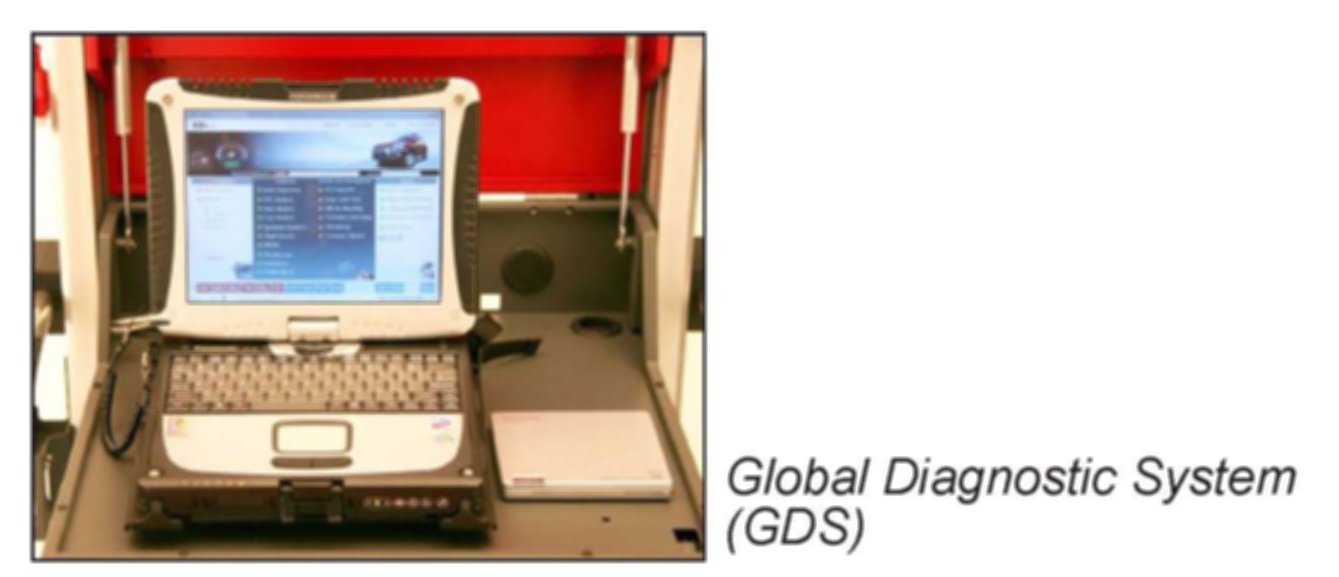

1. Connect the power supply cable to the GDS tool.
NOTICE
If attempting to perform the PCM upgrade with the power supply cable disconnected from the GDS tool, be sure to check that the GDS tool is fully charged before PCM upgrade. If the GDS tool is not fully charged, failure to perform the PCM upgrade may occur. Therefore, it is strongly recommended that the power supply connector be connected to the GDS tool.
2. Connect the USB cable between the VCI and the GDS tool.
NOTICE
When performing the PCM upgrade using the GDS tool, wireless communication between the VCI and GDS tool is not available. Therefore, be sure to connect the USB cable between the VCI and the GDS tool.
3. Connect the Main 16-pin DLC cable (GHDM - 241000) to the VCI.

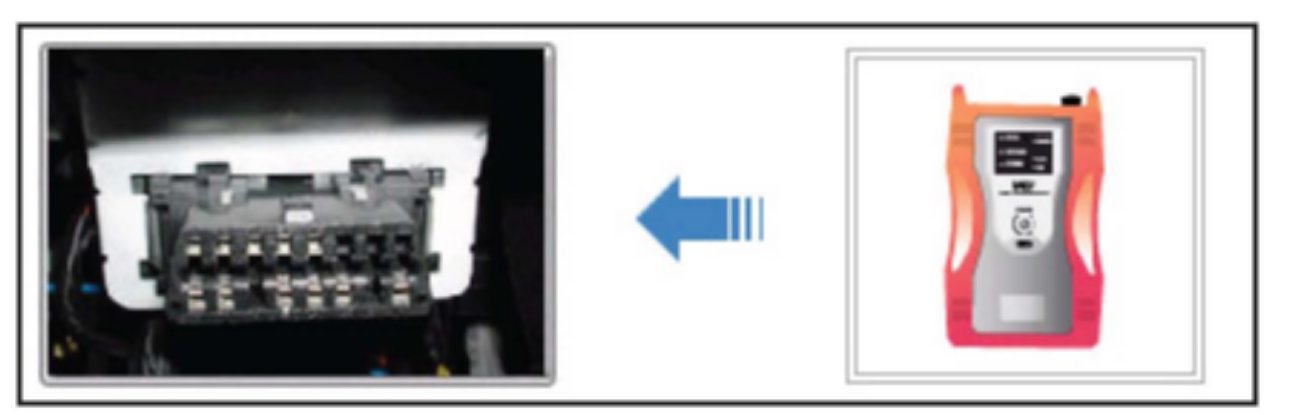

4. Connect the Main 16-pin DLC cable (GHDM - 241000) to the OBD-II connector, located under the driver's side of the instrument panel.

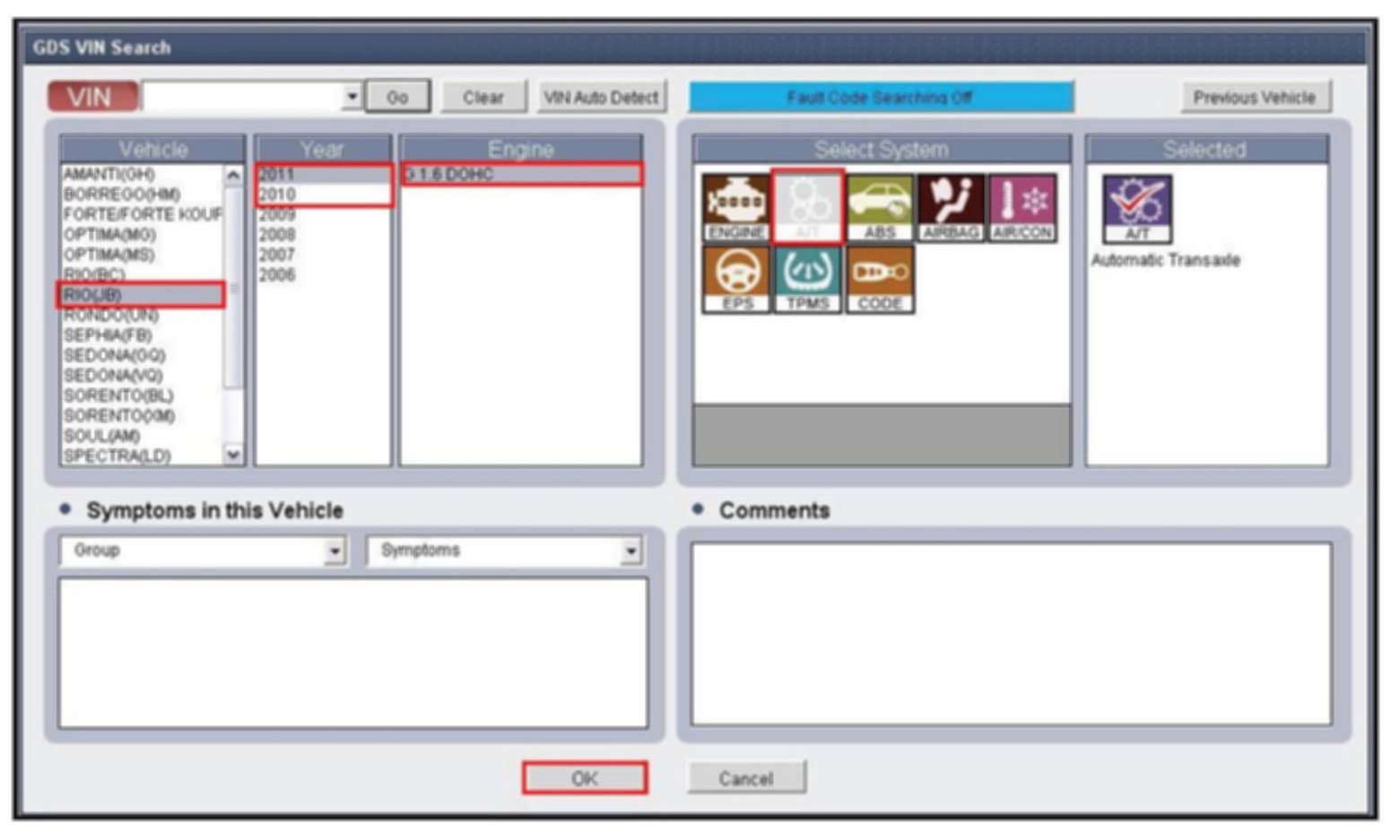

5. With the ignition key ON, turn ON the VCI and GDS tool. Access the GDS vehicle identification number (VIN) screen and configure the vehicle using the VIN AUTO DETECT Function.

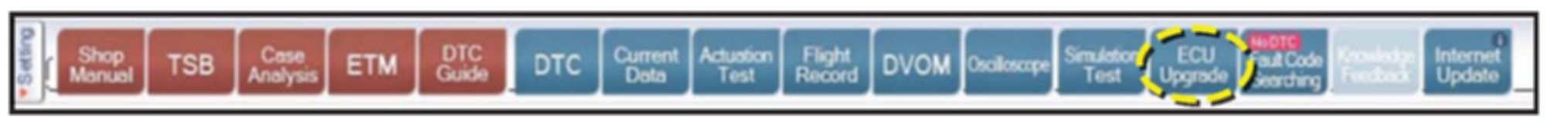

6. Once back at the GDS Main Screen, select "ECU Upgrade" from the bottom right-hand corner. Next select Auto Mode, Engine. Perform the ECU/PCM upgrade in accordance with normal GDS tool ECU/PCM upgrade procedures.
NOTICE
Do NOT attempt to perform a Manual Mode upgrade unless Auto Mode fails. Always follow the instructions given on the GDS tool in either Auto or Manual mode. See table for Manual Mode passwords.

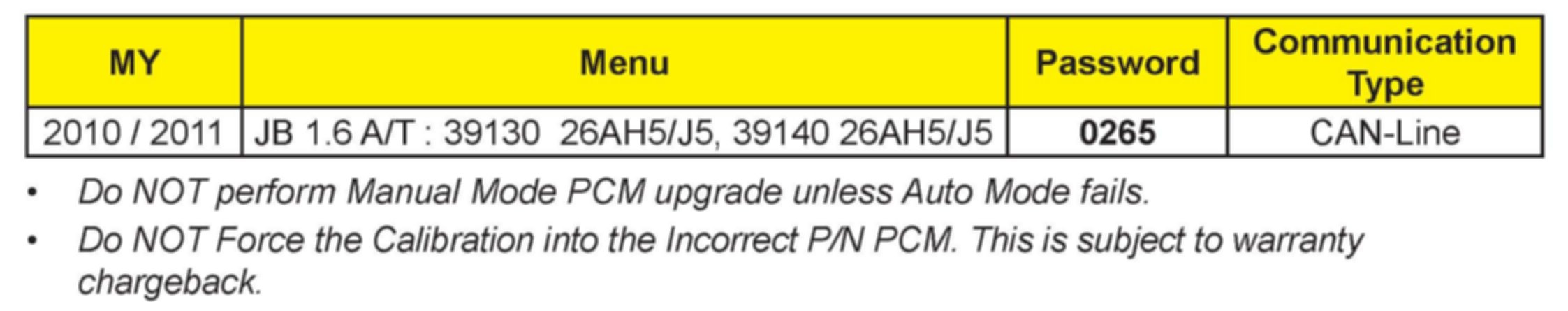

MANUAL MODE PCM UPGRADE PASSWORDS
7. When the GDS tool reports that the PCM upgrade has been successfully completed, click OK, turn OFF the ignition key, and wait at least 10 seconds before attempting to start the engine.
8. Check for Diagnostic Trouble Codes using the GDS and erase any DTCs stored such as EPS, ESC, and TPMS. Due to CAN BUS multiple DTCs maybe set during reprogramming.
9. After upgrade is completed, reset the Transaxle Adaptive Learning Values as required. Refer to TRANS 018 for resetting adaptive learning.
AFFECTED PRODUCTION RANGE
NOTICE
WebDCS must be checked to confirm that SA042 has not been previously done on any vehicle without a campaign completion label. WebDCS > Warranty Coverage > Warranty Coverage Inquiry > Check Open Campaign Status
To improve customer satisfaction remember to check for any additional open campaigns before returning the vehicle to the customer.

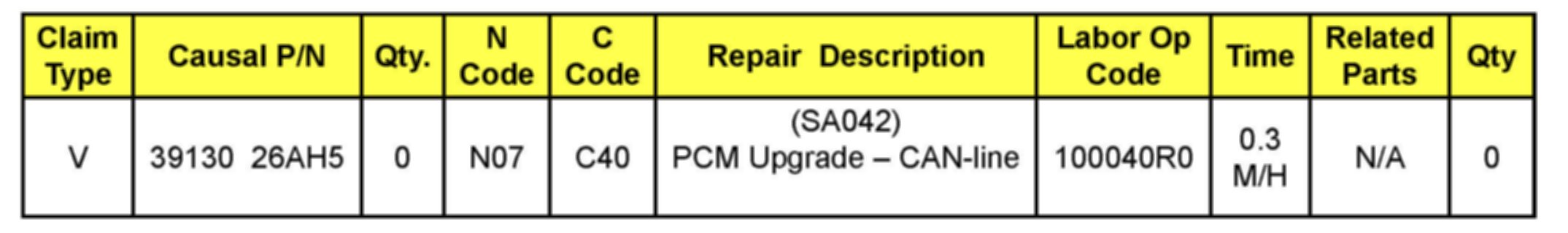

SERVICE ACTION WARRANTY CLAIM INFORMATION
NOTICE
VIN Inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference SA042 when accessing the WebDCS system.
