Component Tests and General Diagnostics

ON-VEHICLE INSPECTION

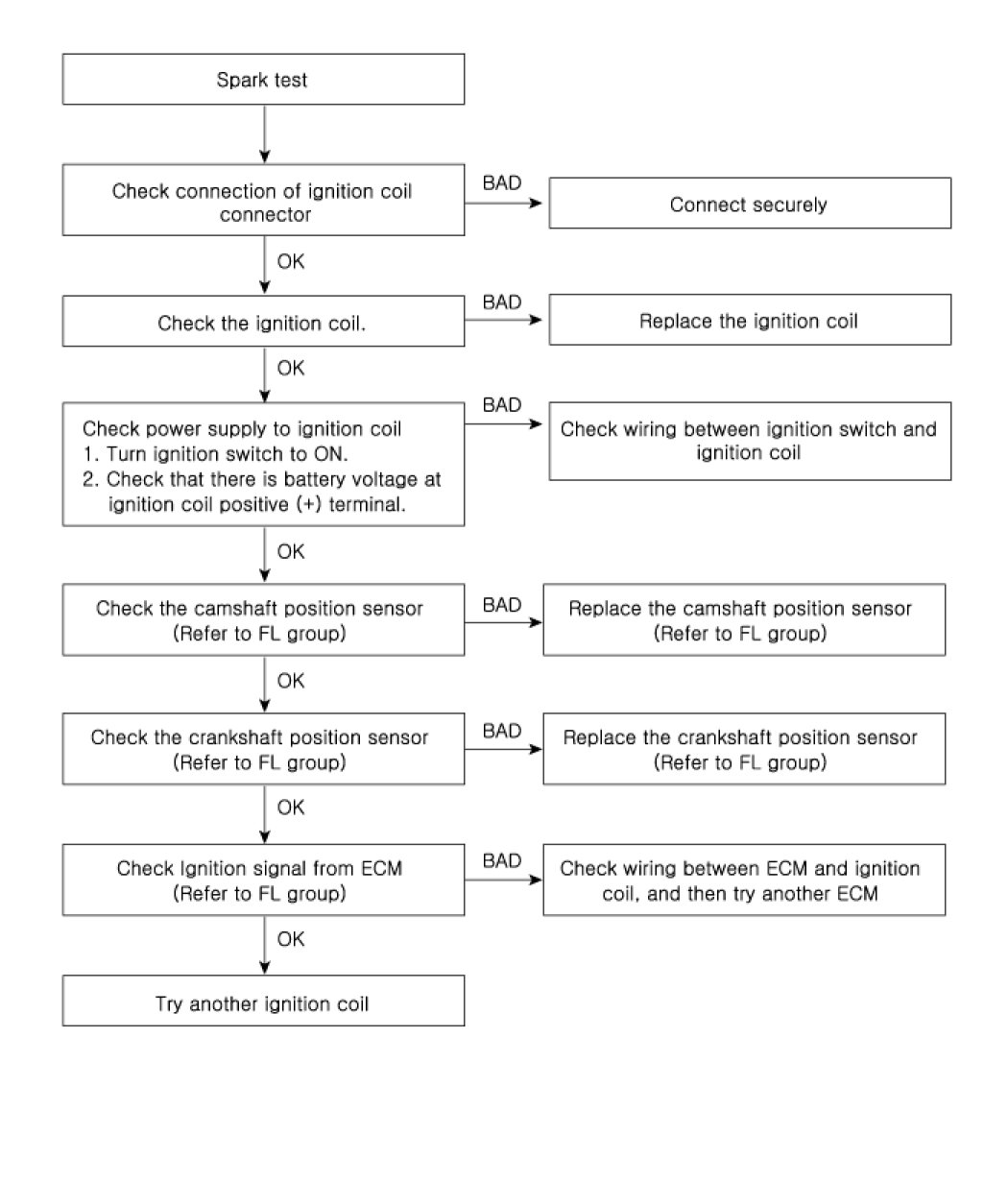

SPARK TEST

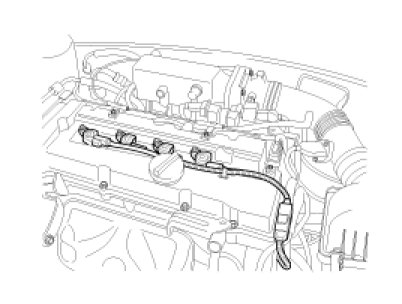

1. Remove the ignition coil.




2. Using a spark plug socket, remove the spark plug.
3. Install the spark plug to the ignition coil.
4. Ground the spark plug to the engine.




5. Check if spark occurs while engine is being cranked.

NOTE:

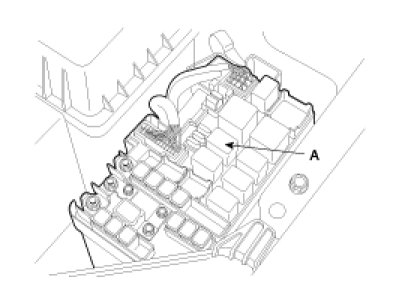

To prevent fuel being injected from injectors while the engine is being cranked, remove the fuel pump relay(A) from the fuse box.
Crank the engine for no more than 5 - 10 seconds.




6. Inspect all the spark plugs.
7. Using a spark plug socket, install the spark plug.
8. Install the ignition coil.





INSPECT SPARK PLUG
1. Remove the ignition coil with bolt.





NOTE:

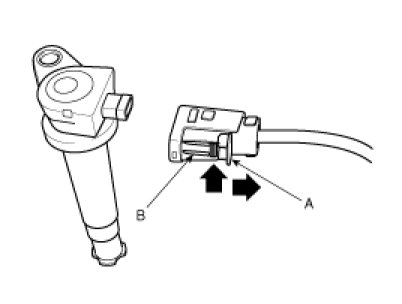

When removing the ignition coil connector, pull the lock pin(A) and push the clip(B).




2. Using a spark plug socket, remove the spark plug.

CAUTION:
Be careful that no contaminates enter through the spark plug holes.

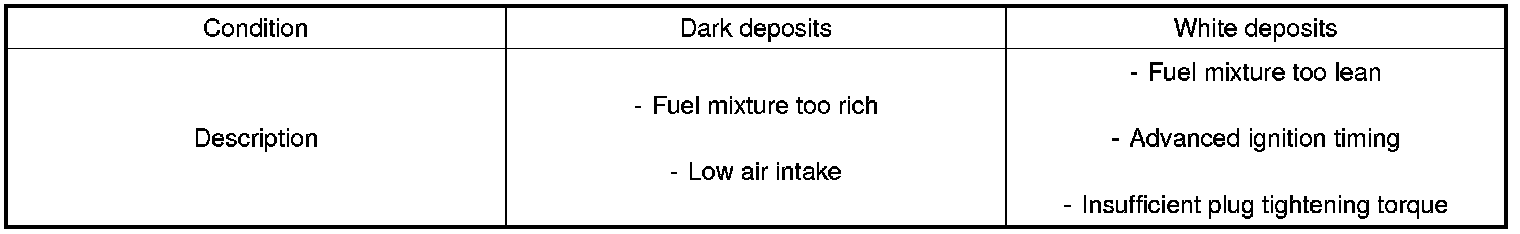

3. Inspect the electrodes (A) and ceramic insulator (B).




INSPECTION OF ELECTRODES

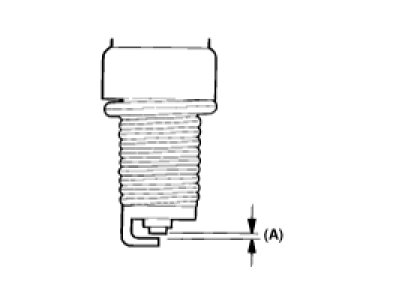

4. Check the electrode gap (A).

Standard
1.0 - 1.1 mm (0.0394 - 0.0433 in.)





INSPECT IGNITION COIL

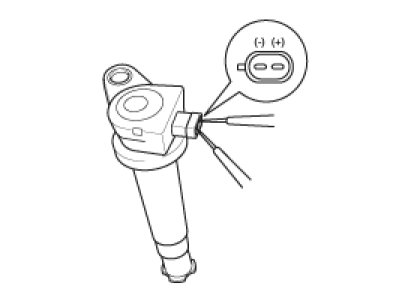

1. Measure the primary coil resistance between terminals (+) and (-).





Standard value: 0.7Ohms ± 15%

REPLACEMENT

IGNITION COIL
1. Remove the engine cover.

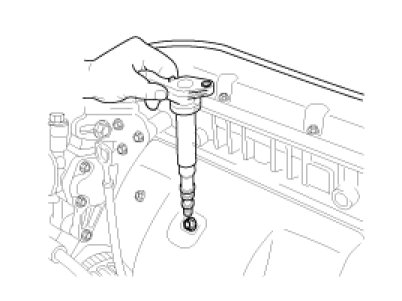

2. Remove the ignition coil with bolt.

Tightening torque :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)





NOTE:
When removing the ignition coil connector, pull the lock pin(A) and push the clip(B).




3. Installation is the reverse of removal.
