Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

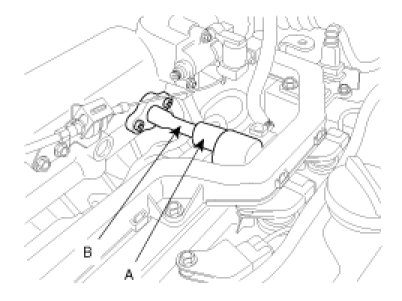

1. Remove the valve pad (A) and disconnect the vacuum hose (B).




2. Remove the PCV Valve.

INSTALLATION

1. Install the PCV valve according to the reverse order of the "REMOVAL" procedure.

PCV Valve Installation : 7.8 - 11.8 Nm (0.8 - 1.2 kgf-m, 5.8 - 8.7 lbf-ft)

INSPECTION

1. Remove the PCV valve.

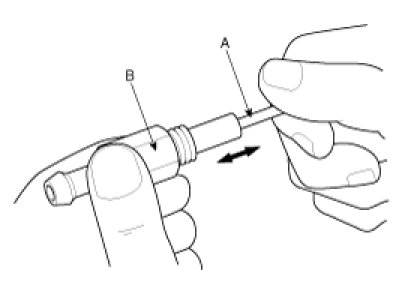

2. Insert a thin stick(A) into the PCV valve(B) from the threaded side to check that the plunger moves.
3. If the plunger does not move, the PCV valve is clogged. Clean it or replace.
