Repair Procedures

INSPECTION

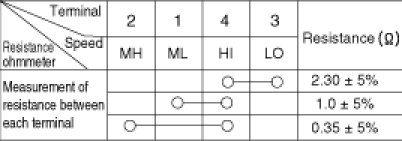

1. Measure terminal-to-terminal resistance of the blower resistor.
2. If measured resistance is not within specification, the blower resistor must be replaced. (After removing the resistor)










REPLACEMENT

1. Disconnect the negative (-) battery terminal.

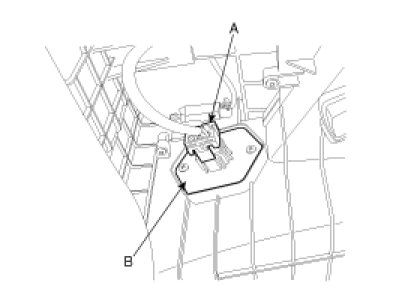

2. Disconnect the blower resistor connector (A) at the connecting part blower unit.
3. Remove the blower resistor after loosening the mounting screws.




4. Installation is the reverse order of removal.
