Home >> Kia >> 2011 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Harness >> Floor Harness

Floor Harness

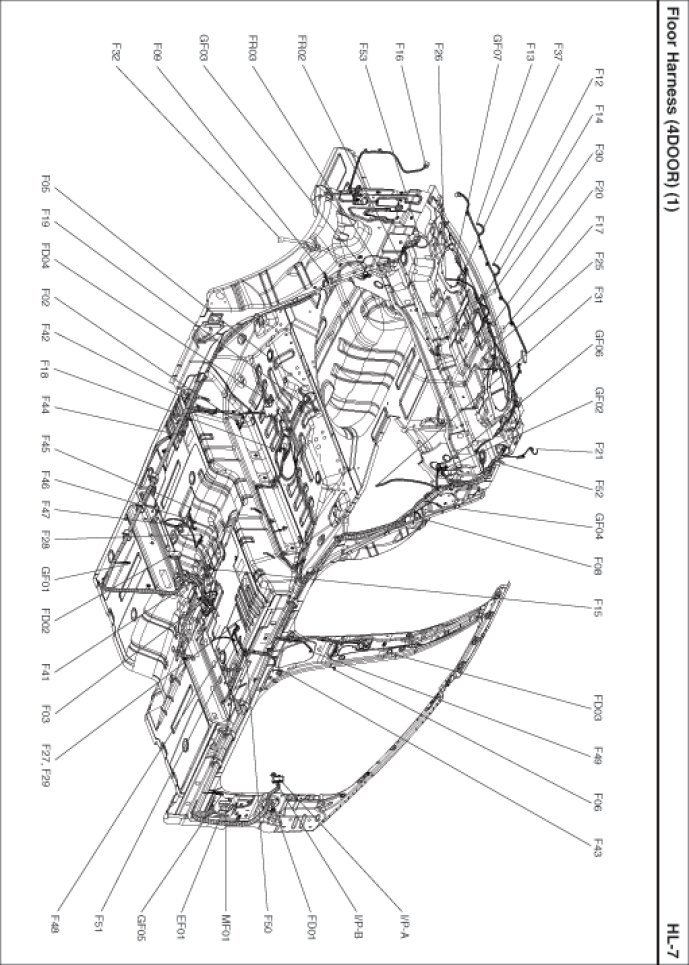

Floor Harness (4DOOR) View:

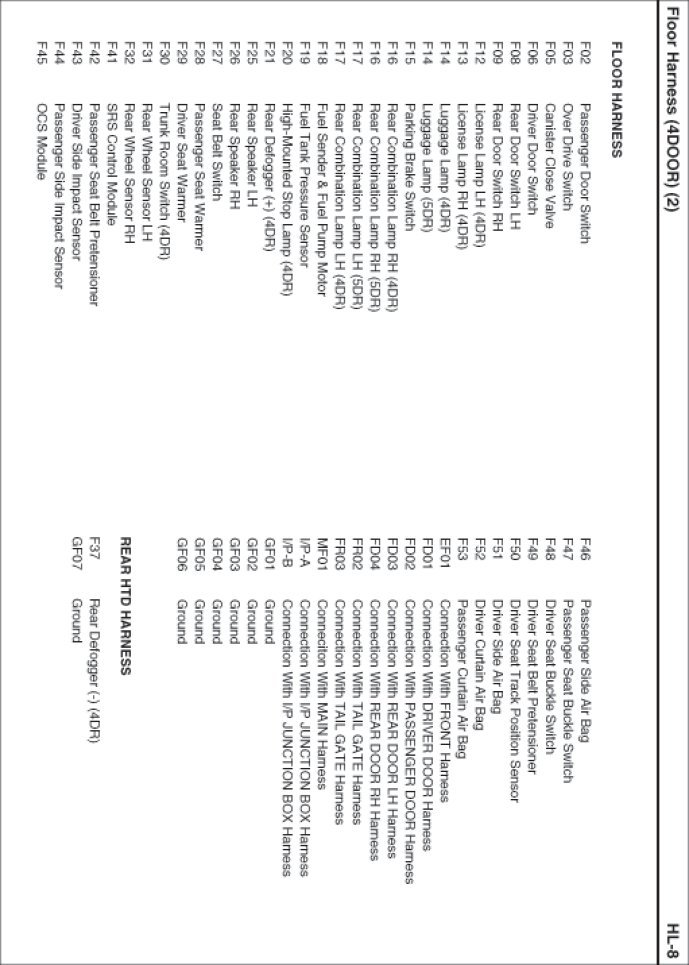

Floor Harness (4DOOR) Index:

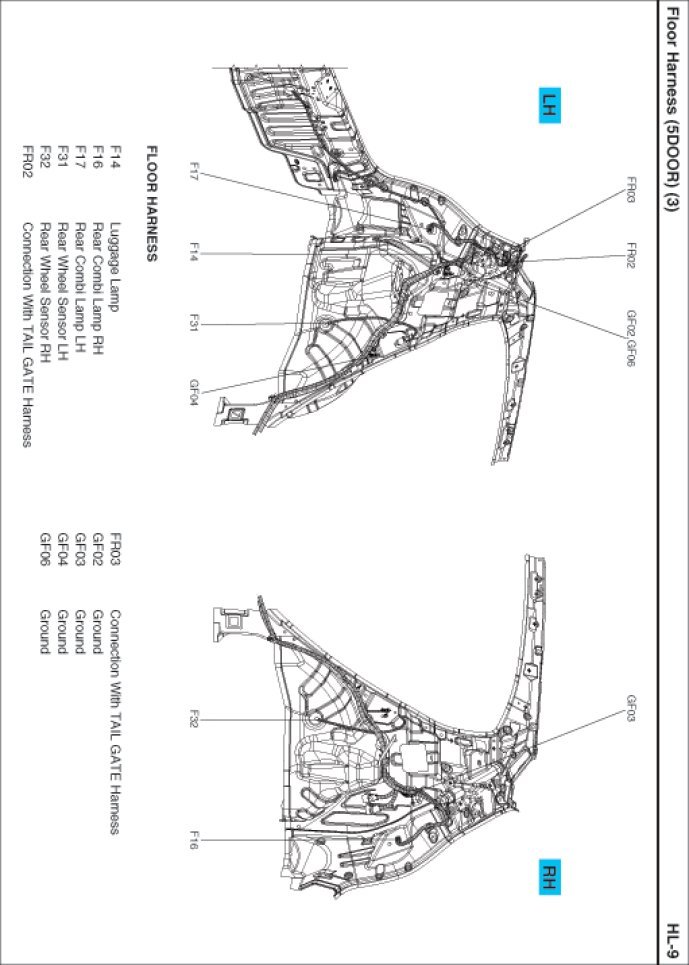

Floor Harness (5DOOR):
