System Diagram

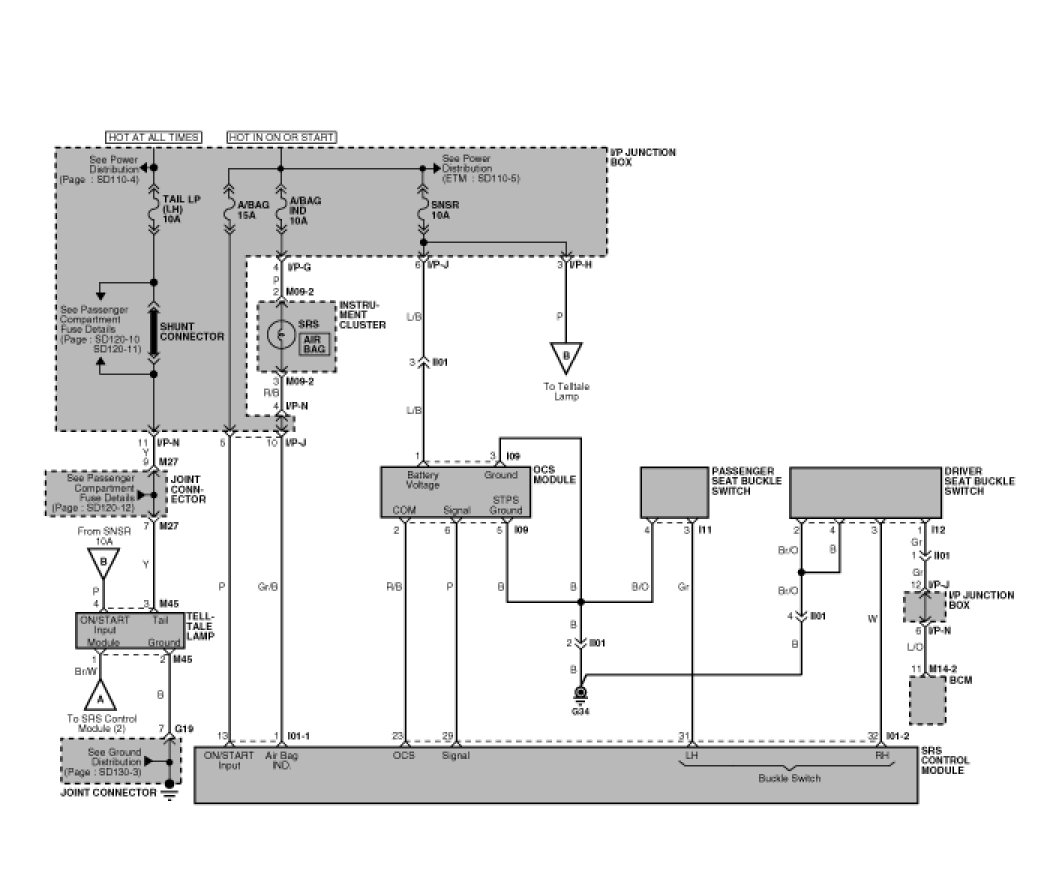

CIRCUIT DIAGRAM(1)

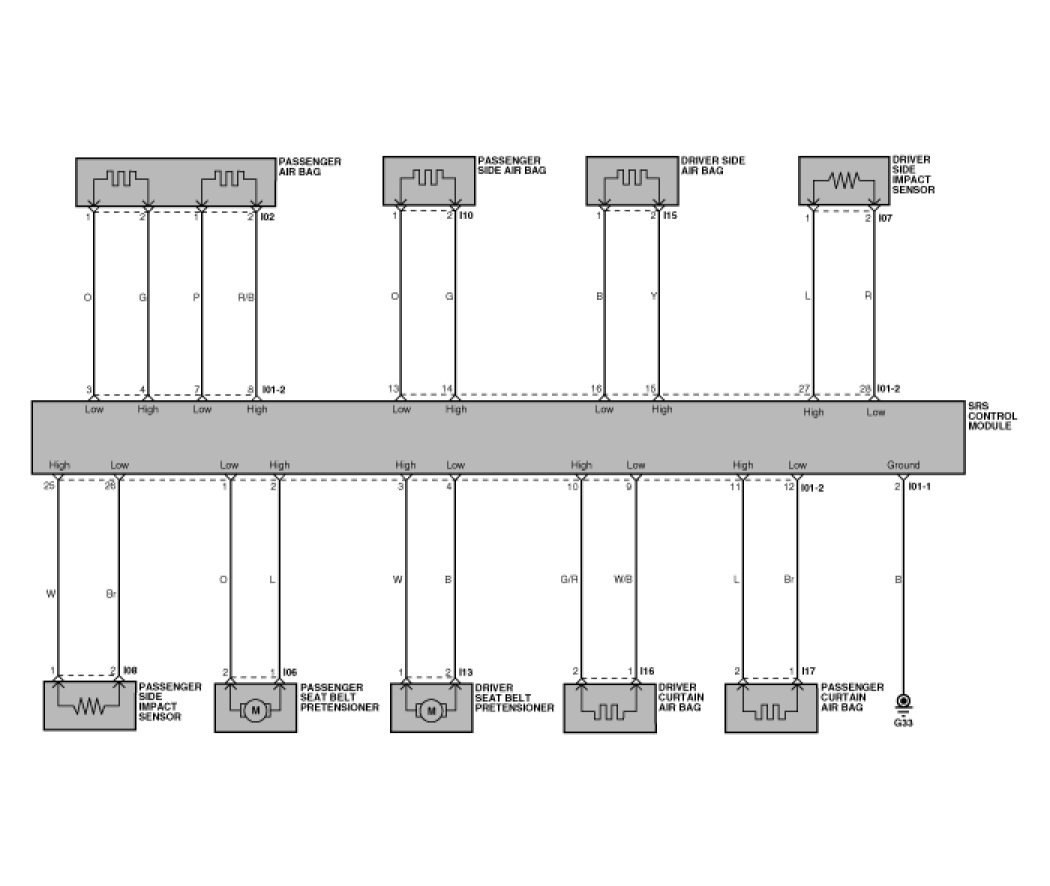

CIRCUIT DIAGRAM(2)

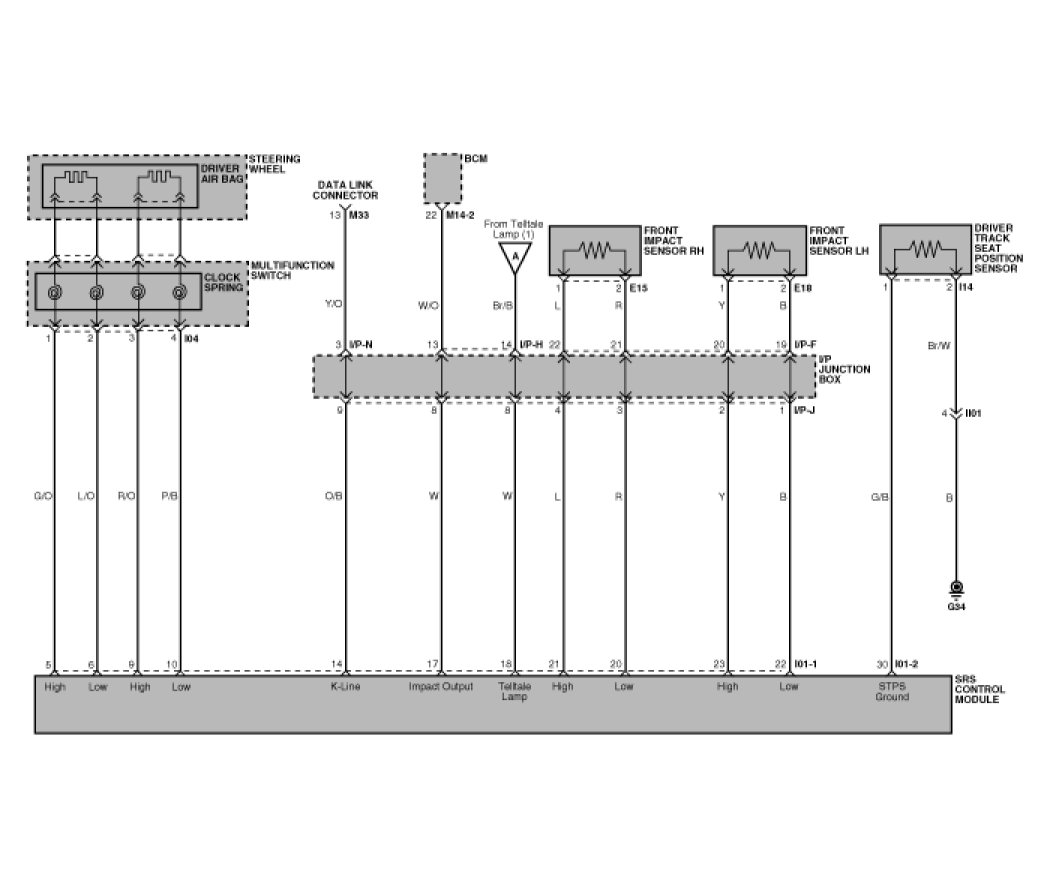

CIRCUIT DIAGRAM(3)

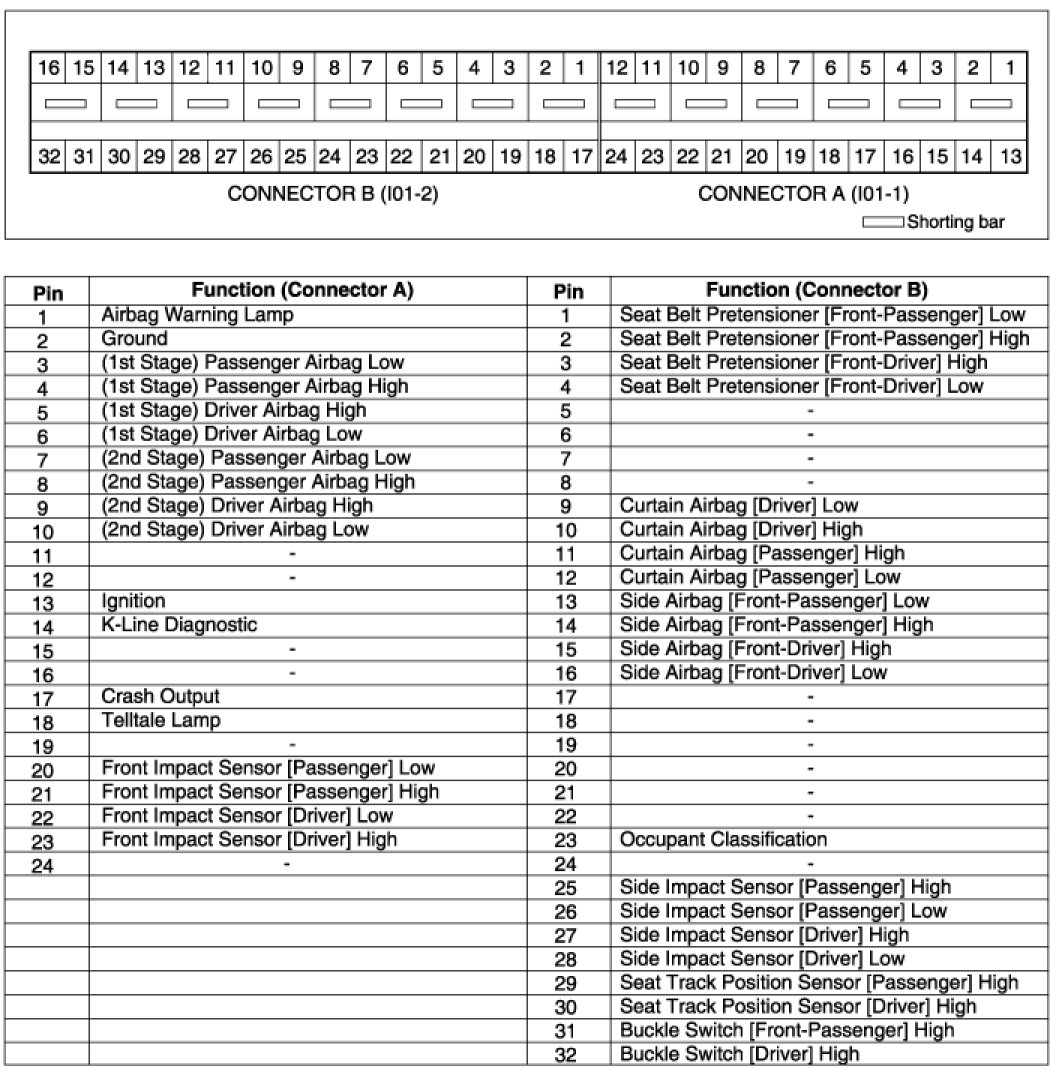

SRSCM CONNECTOR TERMINAL

SRSCM HARNESS CONNECTOR
