Diagram Set SD971 (Blower & A/C Control System)
Diagram Set SD971 (Blower & A/C Control System)

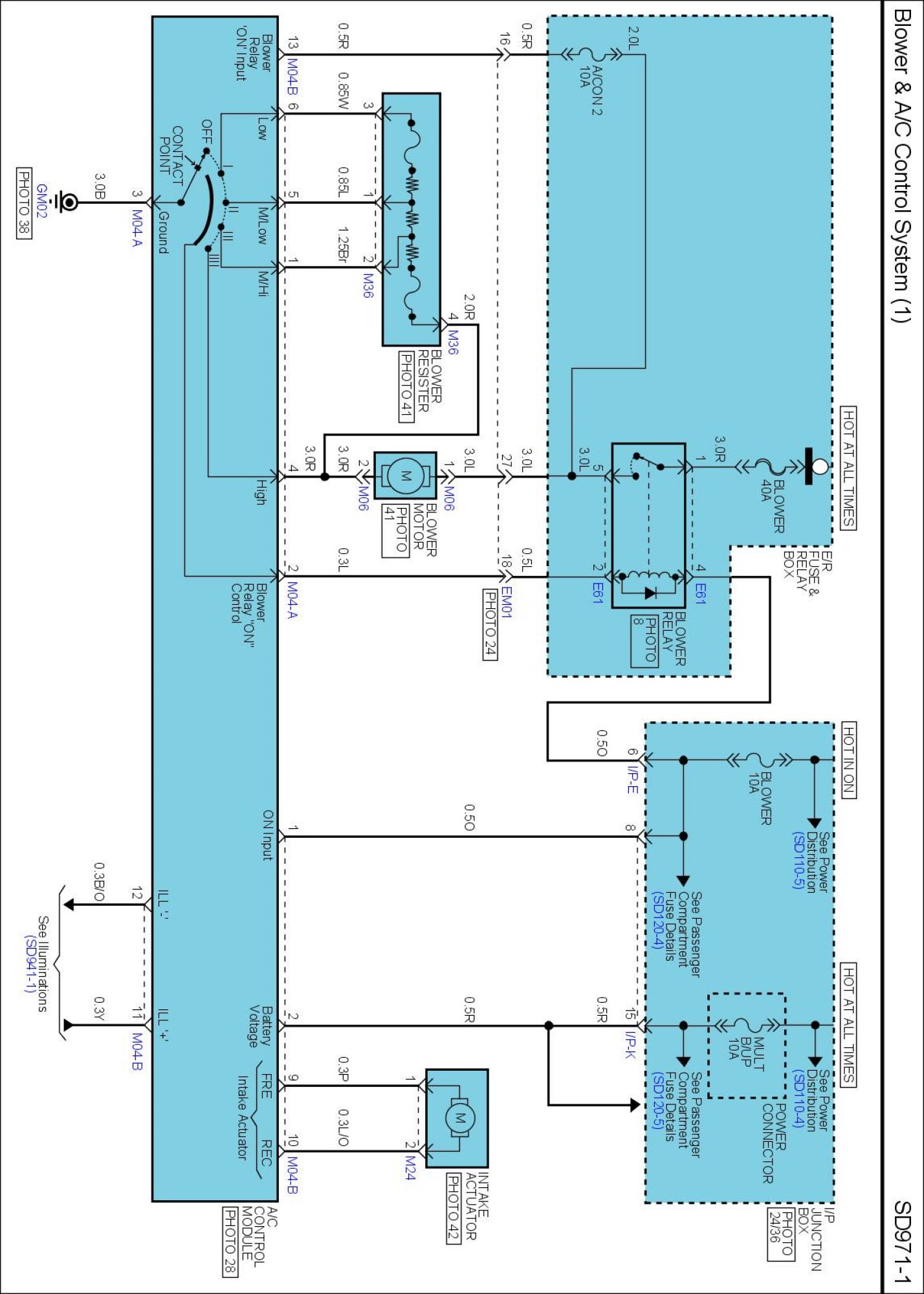

SD971-1 Blower And A/C Control System (1):

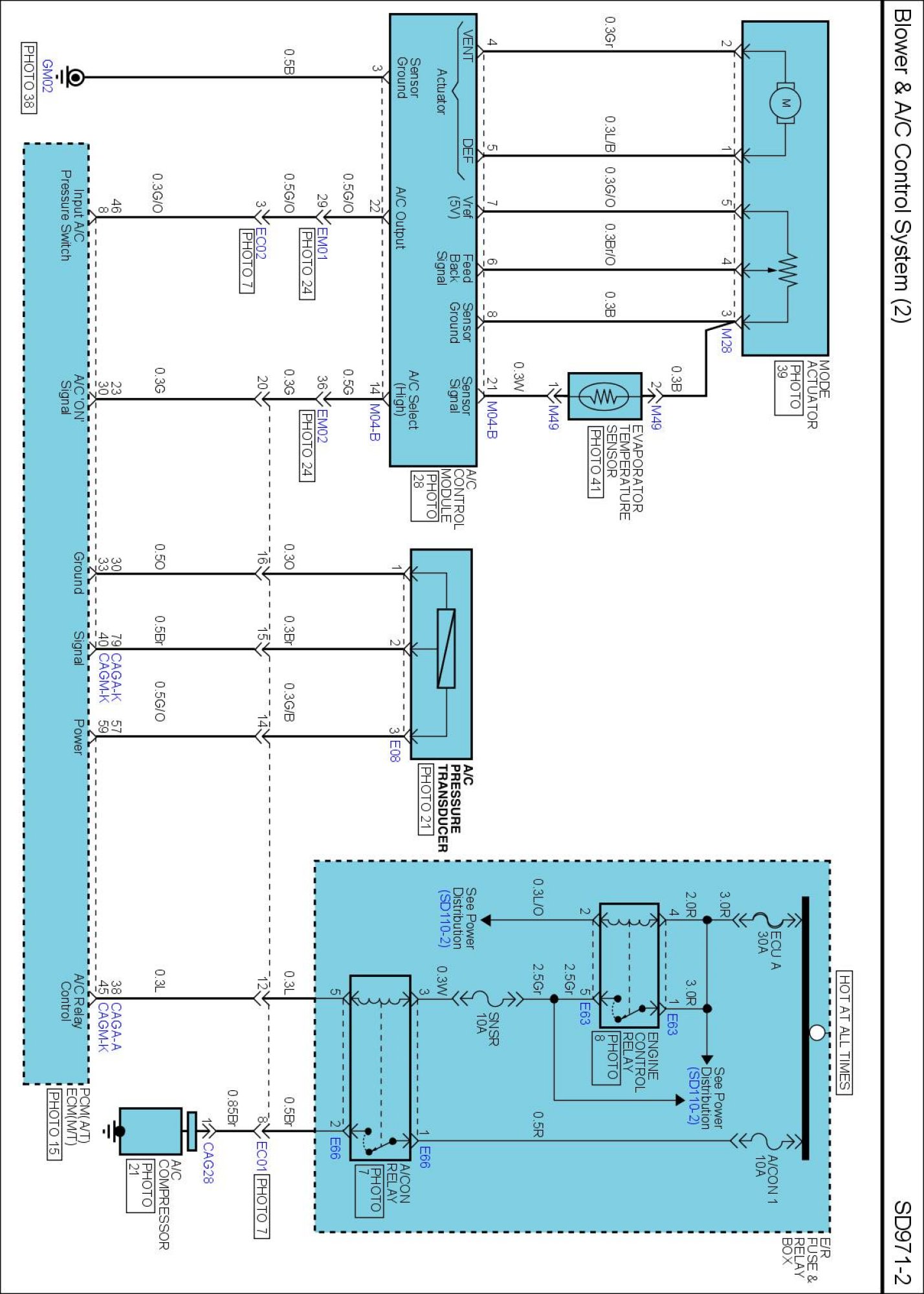

SD971-2 Blower And A/C Control System (2):
