Component Tests and General Diagnostics

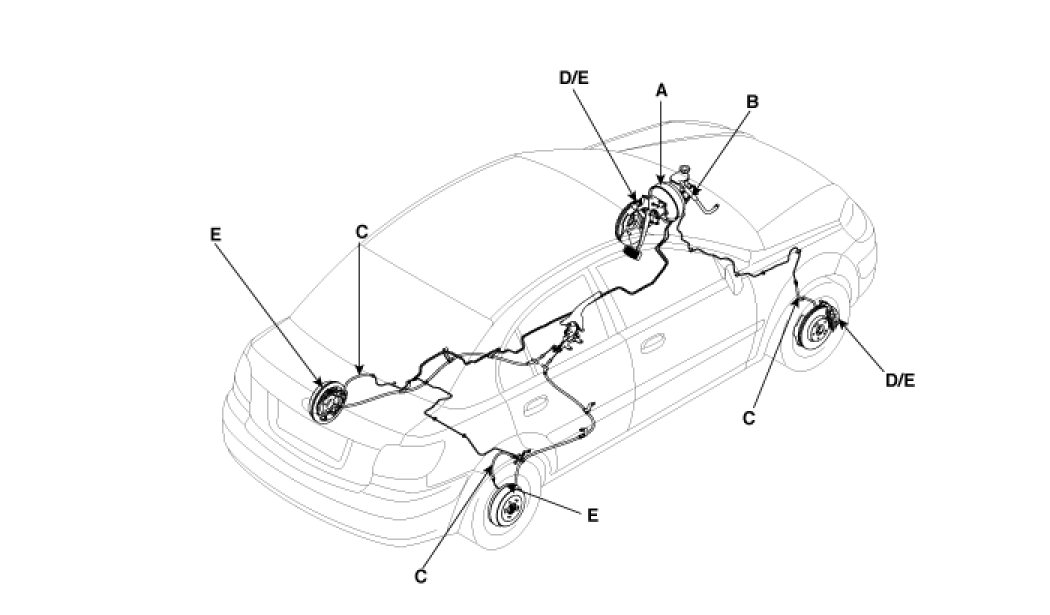

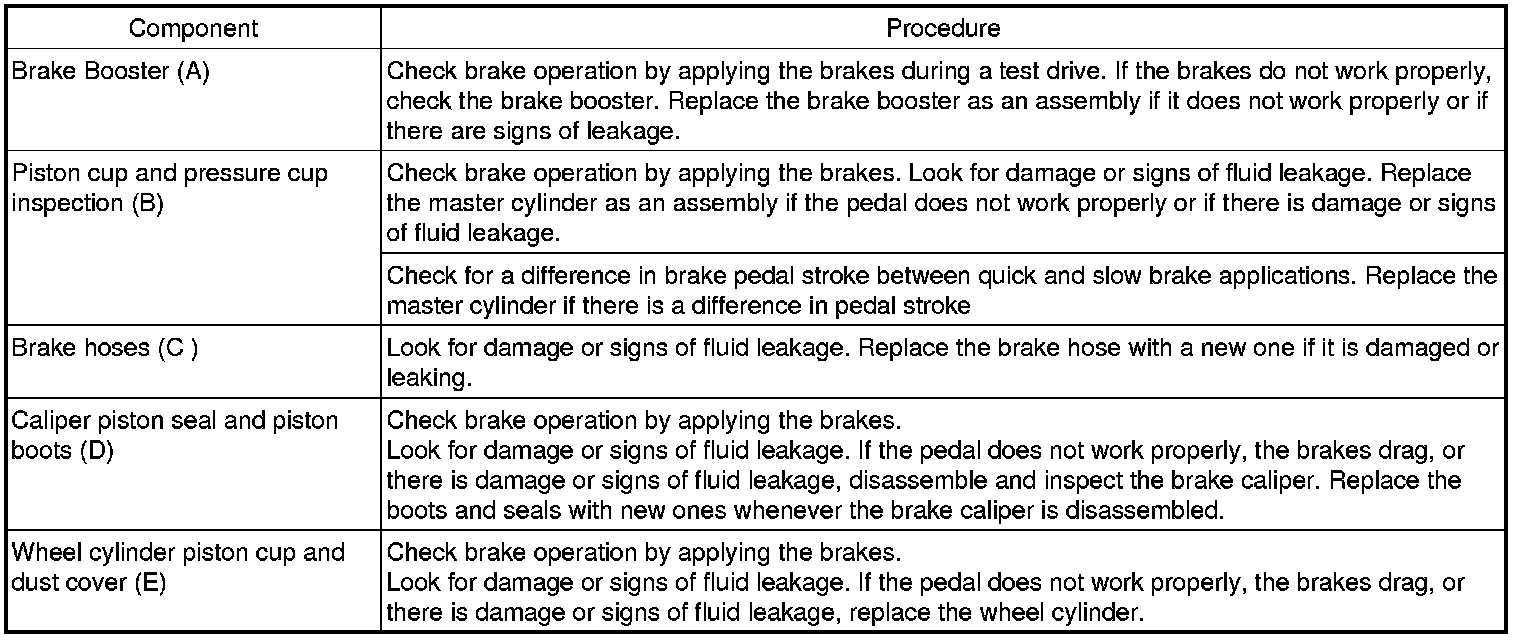

Operation and Leakage Check
Check all of the following items:
BRAKE BOOSTER OPERATING TEST
For simple checking of the brake booster operation, carry out the following tests :

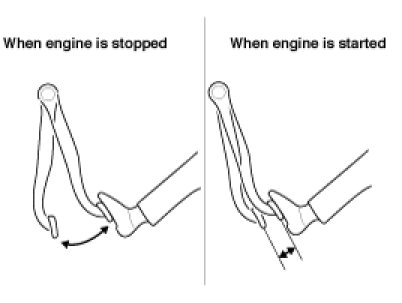

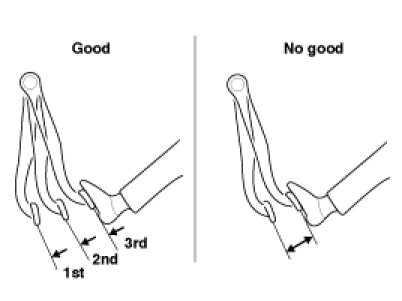

1. Run the engine for one or two minutes, and then stop it. If the pedal depresses fully the first time but gradually becomes higher when depressed succeeding times, the booster is operating properly, if the pedal height remains unchanged, the booster is defective.

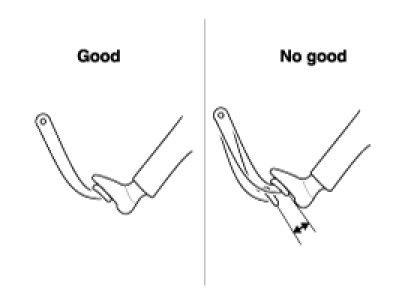

2. With the engine stopped, step on the brake pedal several times. Then step on the brake pedal and start the engine. If the pedal moves downward slightly, the booster is in good condition. If there is no change, the booster is defective.
3. With the engine running, step on the brake pedal and then stop the engine. Hold the pedal depressed for 30 seconds. If the pedal height does not change, the booster is in good condition, if the pedal rises, the booster is defective. If the above three tests are okay, the booster performance can be determined as good. Even if one of the above three tests is not okay, check the check valve, vacuum hose and booster for defect.
VACUUM HOSE (CHECK VALVE)
INSPECTION

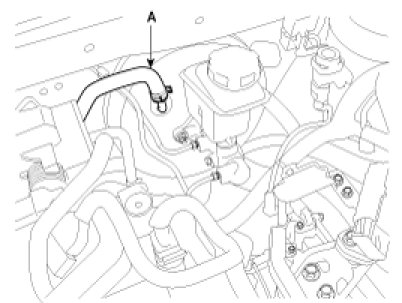

1. Disconnect the brake booster vacuum hose (check valve built in) (A) at the booster.
2. Start the engine and let it idle. There should be vacuum available. If no vacuum is available, the check valve is not working properly. Replace the brake booster vacuum hose and check valve and retest.
BRAKE PEDAL BRAKE SWITCH ADJUSTMENT
PEDAL HEIGHT
1. Disconnect the brake switch connector, loosen the brake switch locknut (A), and brake off the brake switch (B) until it is no longer touching the brake pedal.

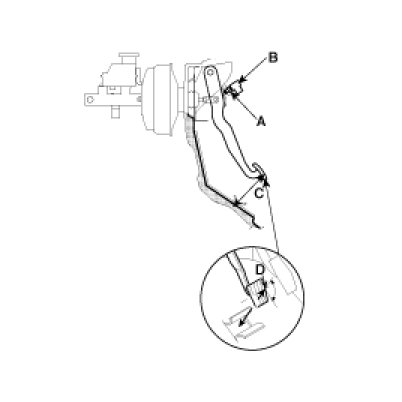

2. Lift up the carpet. At the insulator cutout, measure the pedal height (C) from the middle of the left-side center of the pedal pad (D).
Standard pedal height (with carpet removed) :
164.8 mm (6.49 in)

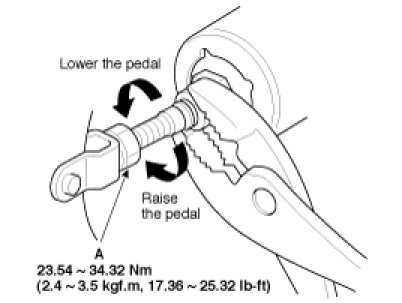

3. Loosen the pushrod locknut (A), and screw the pushrod in or out with pliers until the standard pedal height from the floor is reached. After adjustment, tighten the locknut firmly. Do not adjust the pedal height with the pushrod depressed.
BRAKE SWITCH CLEARANCE

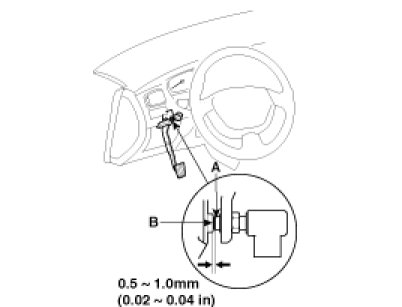

Screw in the brake switch until its plunger is fully depressed (threaded end (A) touching the pad (B) on the pedal arm) then brake off the switch 3/4 turn to make 0.5 - 1.0 mm (0.02 - 0.04 in.) of clearance between the brake switch connector. Make sure that the brake lights go off when the pedal is released.
PEDAL FREE PLAY

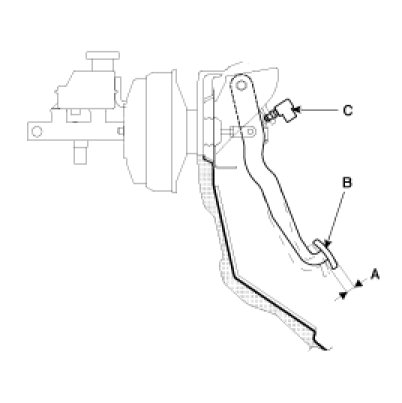

1. With the engine stopped, depress the brake pedal two or three times. After eliminating the vacuum in the power brake booster, press the pedal (B) down by hand, and confirm that the amount of movement (A) before resistance is met (the free play) is within the standard value.
Standard value : 3 - 8 mm (0.117 - 0.312 in.)
2. If free play does not reach the standard value, check that clearance between the outer case of stop light switch (C) and brake pedal is within the standard value. If free play exceeds the standard value, it is probably due to excessive clearance between the clevis pin and brake pedal arm. Check for excessive clearance and replace faulty parts as required.
3. Start the engine, depress the brake pedal with approximately 1176.8N (120kg, 264.5 lb) of force, and check for oil leakage in the master cylinder, brake line and each connecting part. Repair the faulty parts as required.
INSPECTION OF FRONT DISC BRAKE PAD

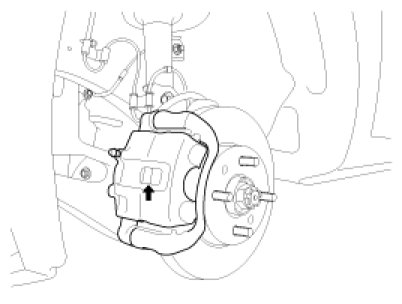

1. Check the brake pad thickness through the caliper body inspection hole.
Pad thickness
Standard value : 11.0 mm (0.43 in.)
Service limit : 2.0 mm (0.0787 in.)
CAUTION:
- If the pad lining thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
INSPECTION OF REAR DISC BRAKE PAD

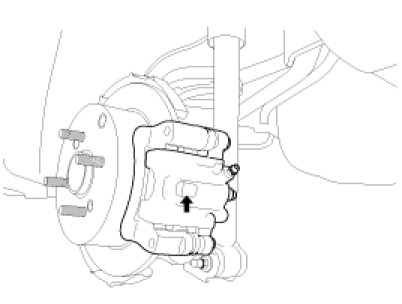

1. Check the brake pad thickness through the caliper body inspection hole.
Pad thickness
Standard value : 10.0 mm (0.39 in.)
Service limit : 2.0 mm (0.0787 in.)
CAUTION:
- If the pad thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
