Repair Procedures

REMOVAL

1. Remove the lower crash pad.

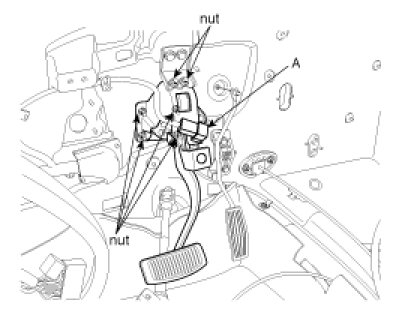

2. Loosen the brake member assembly bracket 2 upper nuts and 4 lower nuts.
3. Remove the stop lamp switch connector (A).

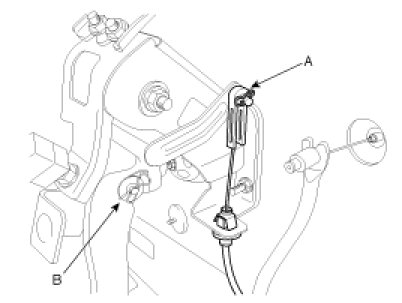

4. Remove the shift lock cable(A) (A/T).




5. Remove the clevis pin and snap pin(B).
6. Remove the brake pedal member assembly mounting nuts and then remove the brake pedal assembly.

INSTALLATION

1. Installation is the reverse of removal.

CAUTION:
Coat the inner surface of the bushings with the specified grease.

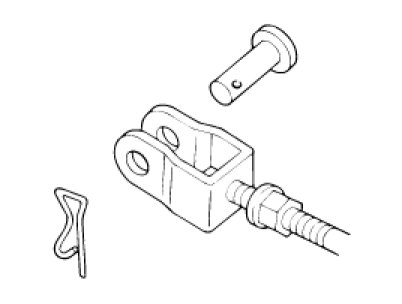

2. Before inserting the pin, apply the chassis grease to the joint pin.




3. Adjust the brake pedal height and free play.
4. Install the stop lamp switch.

INSPECTION

1. Check the bushing for wear.
2. Check the brake pedal for bending or twisting
3. Check all parts for crack and wear.
4. Check the stop lamp switch.

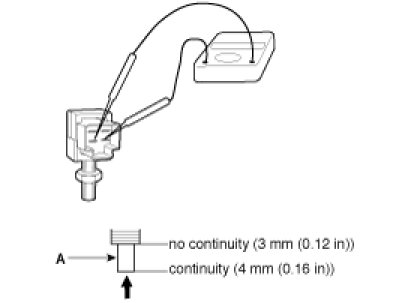

(1) Connect a circuit tester to the connector (1-2 terminals) of stop lamp switch, and check whether or not there is continuity when the plunger of the stop lamp switch is pushed in and when it is released.
(2) The stop lamp switch is in good condition if there is no continuity when the plunger(A) is pushed.
