Repair Procedures

REPLACEMENT

SEAT ASSEMBLY REPLACEMENT

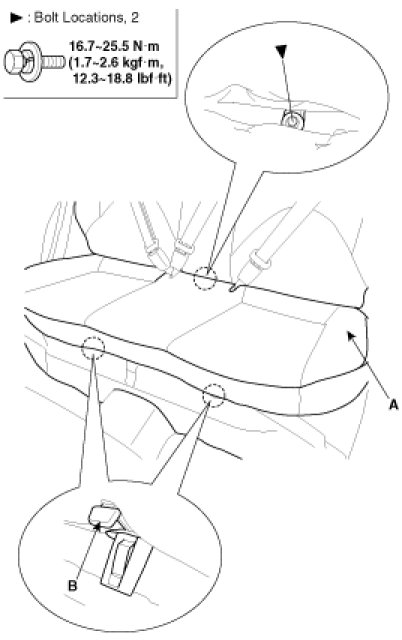

1. Loosen the rear seat cushion mounting bolts, then remove the rear seat cushion(A) after pull the stopper(B).

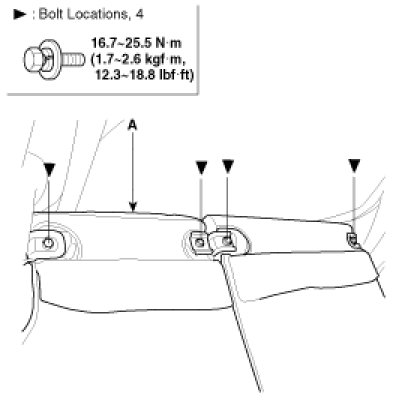

2. Loosening the seat belt mounting bolt, remove the seat back(A).




3. Installation is the reverse of removal.

ARM REST REPLACEMENT
1. Remove the rear rear seat.
2. Remove the arm rest cover(A).




3. Loosening the arm rest mounting bolt, remove the arm rest(A).




4. Installation is the reverse of removal.
