Repair Procedures

REPLACEMENT

SEAT ASSEMBLY REPLACEMENT
1. Remove the seat assembly mounting cover.
2. After loosening the seat assembly mounting bolt and nut, remove the seat assembly (A).

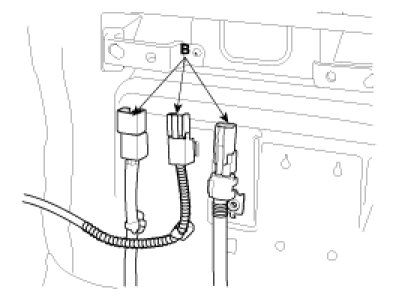

3. Disconnect the connector (B), and remove the seat assembly.




4. Installation is the reverse of removal.

CAUTION:
- Set the into the most rearward position. Check then each slide is locked, and then Tighten the front mounting bolt temporarily.
- Set the seat into most forward position.Check that each slide is locked, and then Tighten the rear mounting bolt completely.
- Set the seat into the most rearward position. Check the front mounting bolt completely.
- Check that the seat operates to and fro smoothly and the locking portion locks properly.

RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT

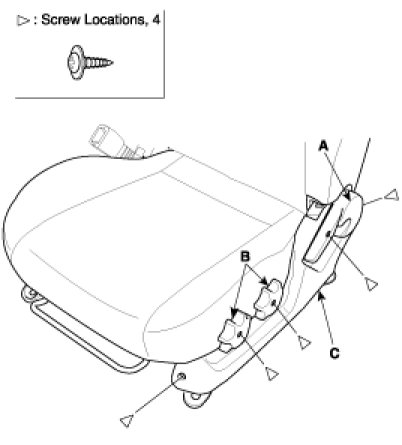

1. Remove the height adjuster knob (A) and recliner knob(B).

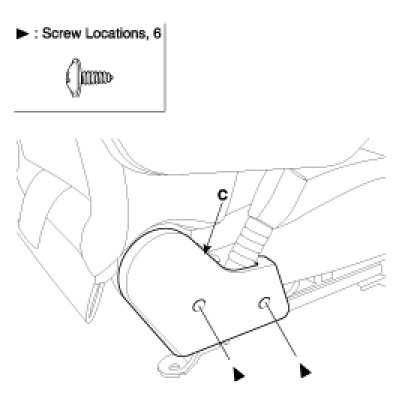

2. Loosen the recliner mounting screw and clip, then remove the recliner cover(C).









SEAT BACK COVER REPLACEMENT
1. Remove the recliner cover, knob and height knob.
2. Disconnect the airbag connector(A).

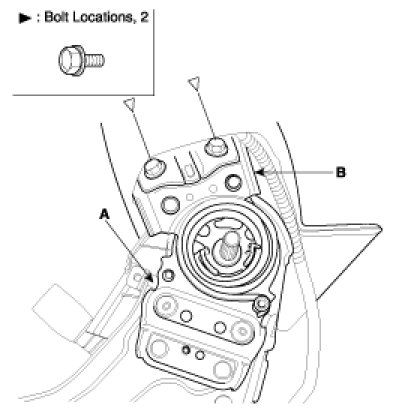

3. Disconnect the seat back frame(B), from seat track assemble(A).

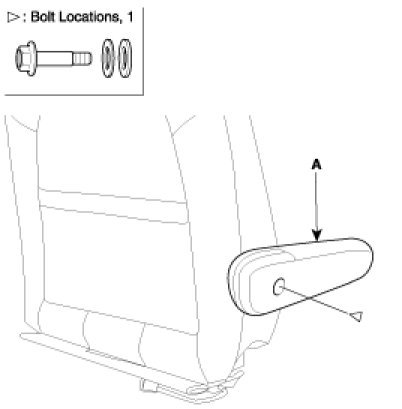

4. After loosening the mounting screw, remove the front seat armrest(A).

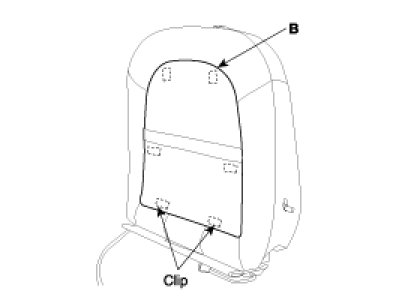

5. Using a screw driver, remove the seat back panel(B).

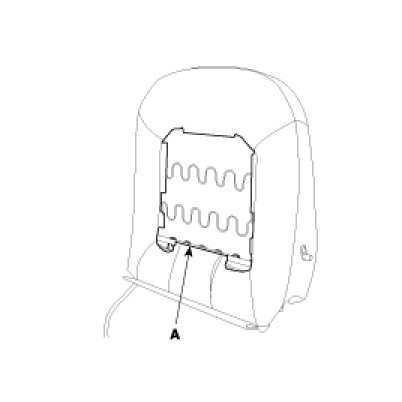

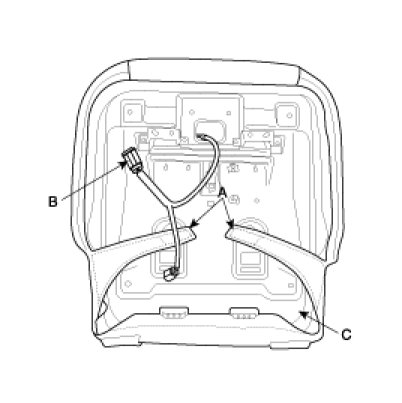

6. Disconnect the protector(A) from seat back frame.




7. Disconnect the band(B).

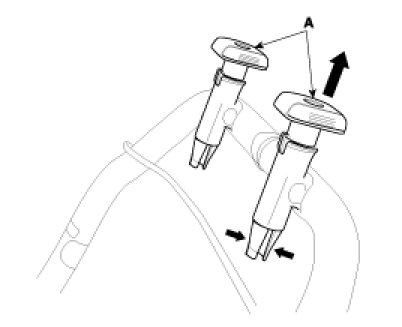

8. Remove the headrest and headrest guide(A).

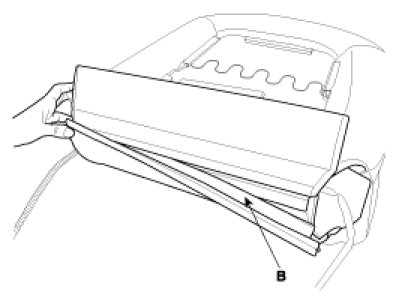

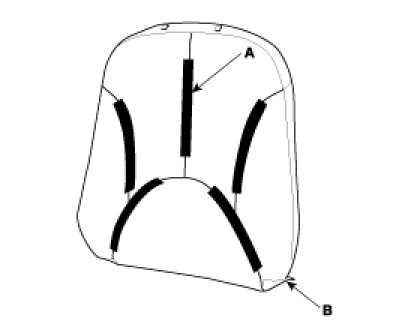

9. After removing the apex(A) on the front of seat cover and remove the seat cover(B).




10. Installation is the reverse of removal.

NOTE:

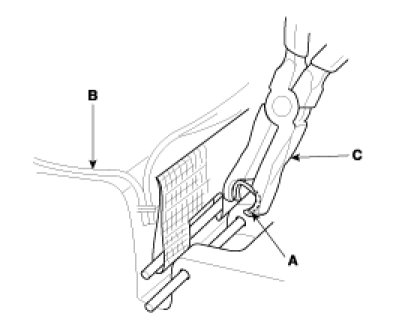

- To prevent wrinkles, make sure the material is stretched evenly over the over (A) before securing the hog ring clips (B).
- Replace the hog ring clips with new ones using special tool (C).

SEAT CUSHION COVER REPLACEMENT
1. Remove the front seat assemble.

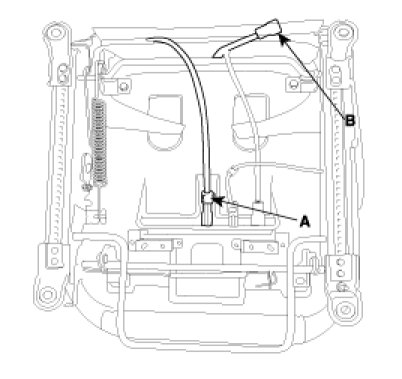

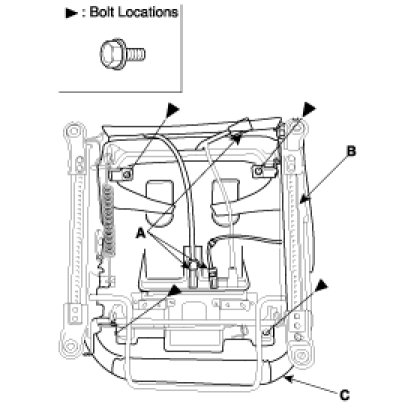

2. Disconnect the connector(A) then remove the track assemble(B) from cushion frame(C).




3. Remove the scuff band(A).
4. Remove the connector(B) then disconnect the protector from cushion frame(C).

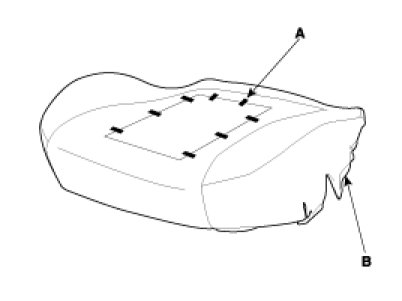

5. After removing the hog ring clips(A) on the front of seat cushion and remove the seat cushion(B).




6. Installation is the reverse of removal.

NOTE:
- To prevent wrinkles, make sure the material is stretched evenly over the over (B) before securing the hog ring clips (A).
- Replace the hog ring clips with new ones using special tool (C).






SEAT BACK FRAME REPLACEMENT
1. Remove the recliner cover, knob and height knob.
2. Disconnect the airbag connect(A), heater connect(B).




3. Disconnect the seat back frame(B) from seat track assembly(A).




4. Remove the seat back cover.
5. Remove the head rest and head rest guide.
6. Remove the seat back cover and sponge, from frame.

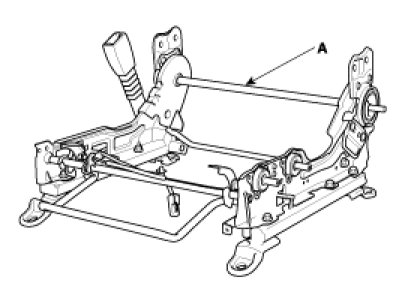

7. After loosening seat back frame mounting bolts, remove the seat back frame(A).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precaution and service procedure relevant to air bag.




8. Installation is the reverse of removal.

SEAT TRACK REPLACEMENT
1. Remove the seat back panel.
2. Remove the recliner cover, knob and height knob.
3. Remove the seat back assembly.
4. Remove the seat cushion.
5. Remove the seat assembly (A).




6. Installation is the reverse of removal.
