Interior Moulding / Trim: Service and Repair

REPLACEMENT

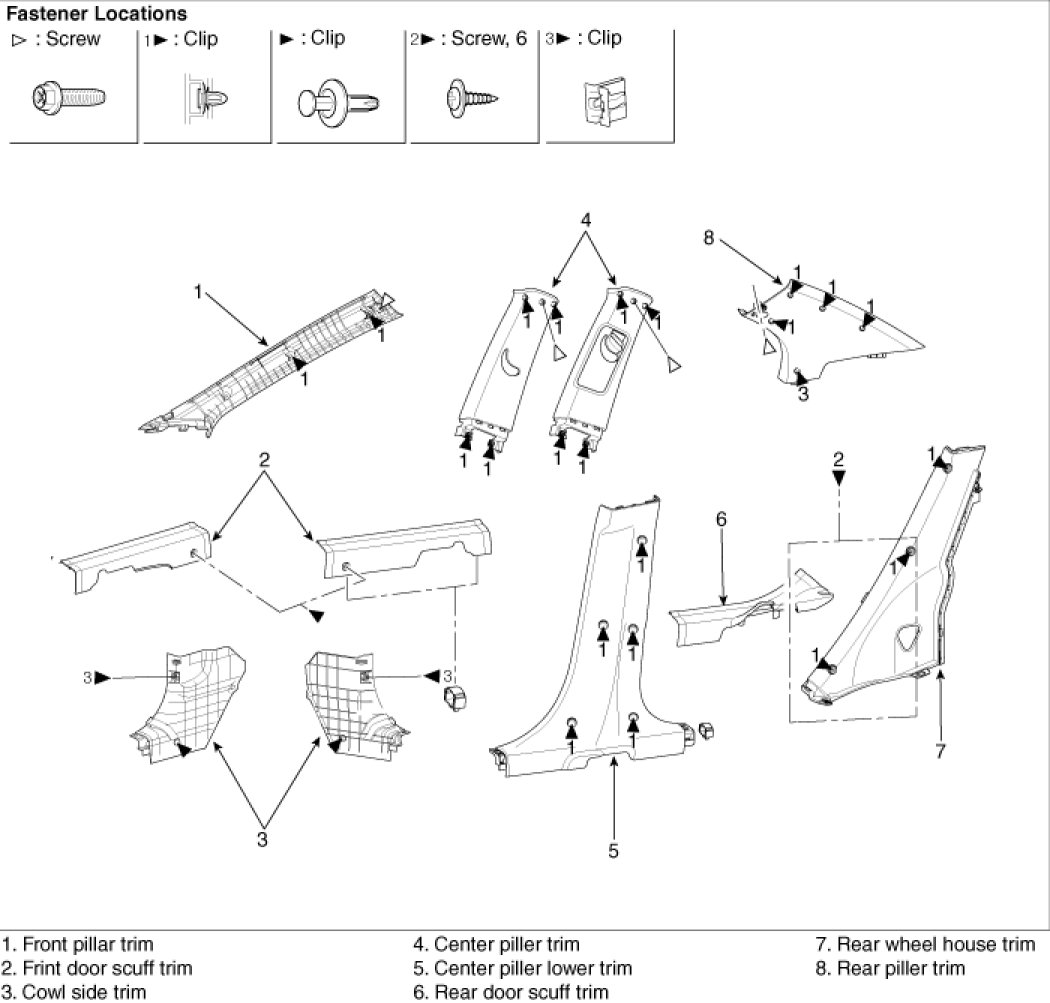

FLOOR AND SIDE TRIM
1. Remove the trim.

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

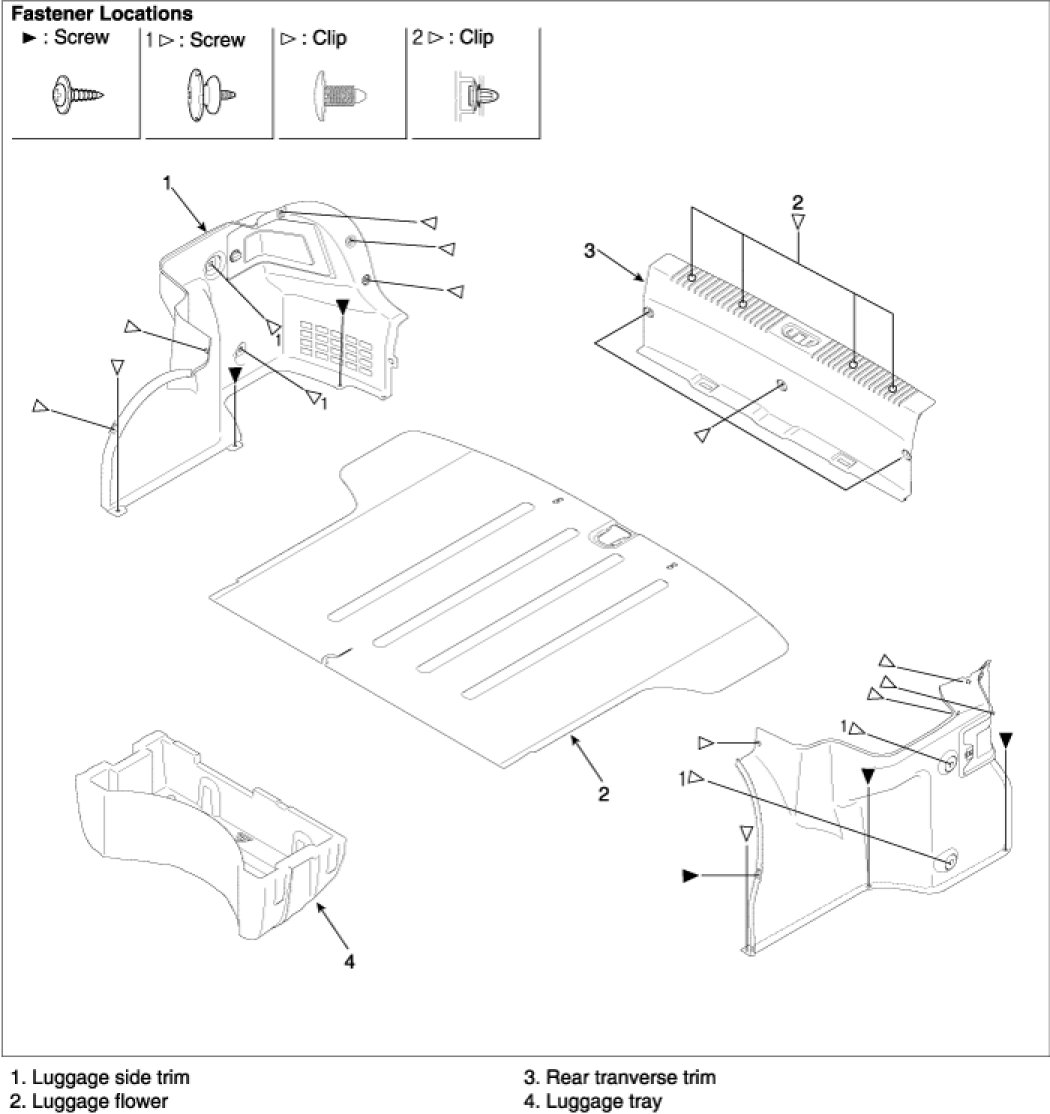

TRUNK TRIM
1. Remove the trunk trim.

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips

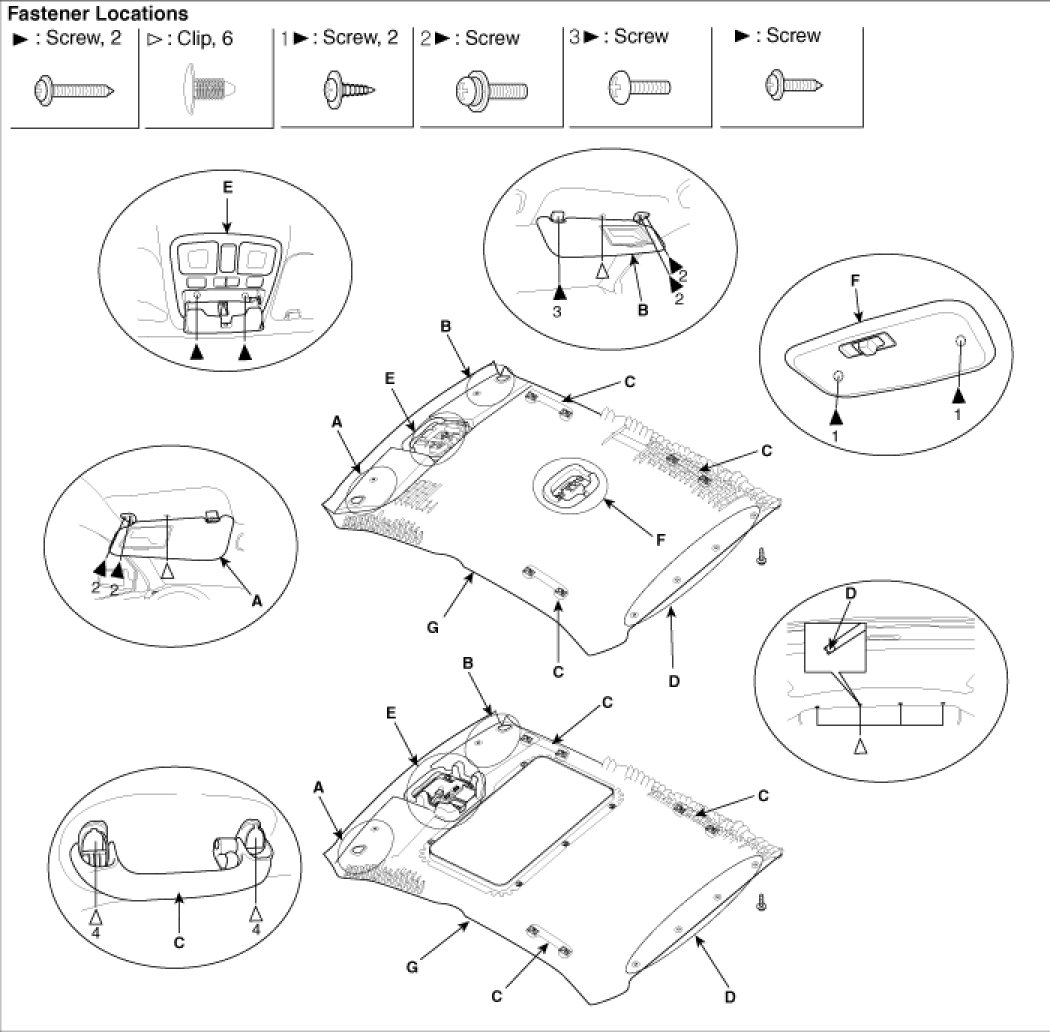

ROOF TRIM
1. Remove the following items.
A. Sunvisor(A),(B).
B. Over head console(E).
C. Room lamp(F).
D. Assist handle(C).
2. Remove the roof trim.

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

3. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.





PACKAGE TRAY
1. Remove the package trim.

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
