Repair Procedures

REPLACEMENT

CLUSTER FACIA PANEL REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.
2. Disconnect the trip sensor connector(A) then remove the cluster facia panel(B).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

CENTER FACIA PANEL REPLACEMENT

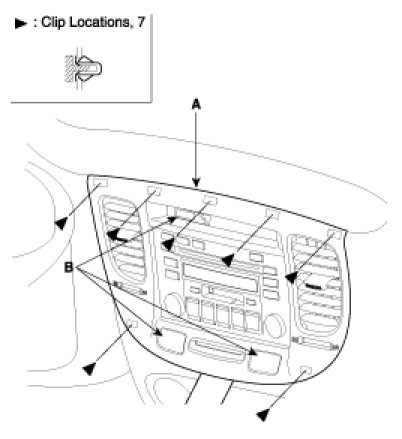

1. After disconnecting the connector (A), remove the center facia panel (B).

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.




2. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

LOWER CRASH PAD PANEL REPLACEMENT

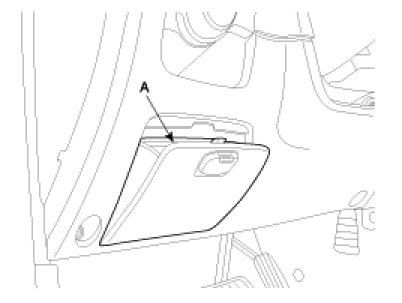

1. Remove the fuse box cover(A).

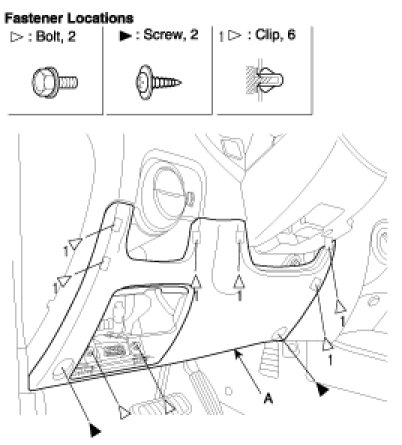

2. Loosening the crash pad lower panel mounting screw. Remove the lower crash pad panel(A).




3. Installation is the reverse of removal.

HEATER CONTROL UNIT REPLACEMENT

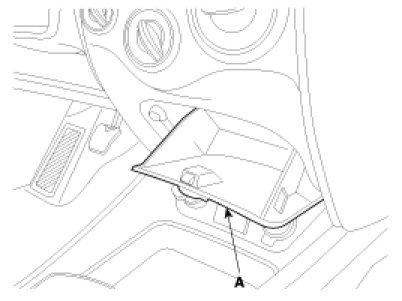

1. Remove the center lower tray(A).

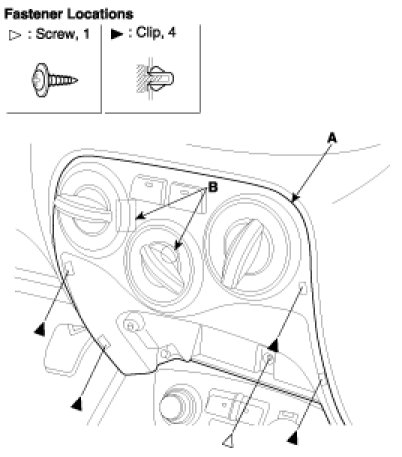

2. After loosen the center facia lower panel mounting screw, remove the center facia lower panel(A). Disconnect the heater control unit connector(B).

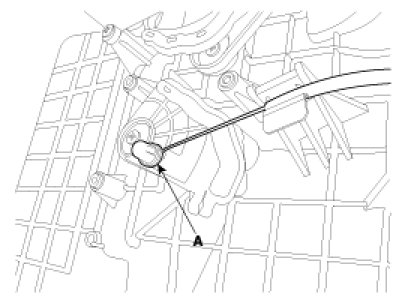

3. Disconnect the heater control cable(A).

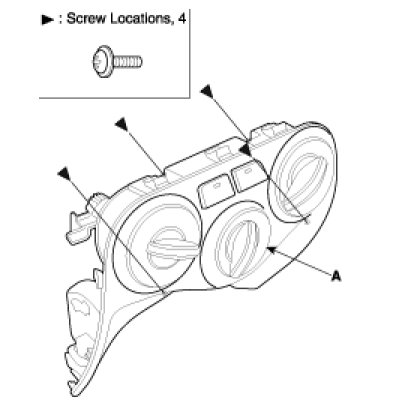

4. Loosen the heater control unit mounting screw. Remove the heater control unit(A).




5. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

CLUSTER REPLACEMENT
1. Remove the cluster facia panel.

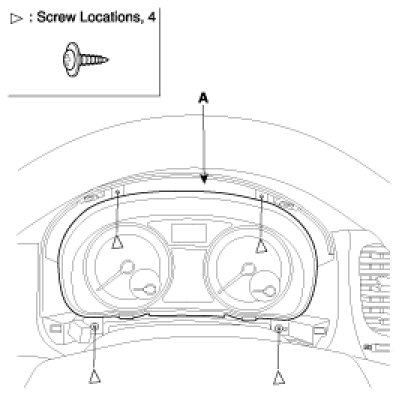

2. Loosen the mounting screws.

CAUTION:
- Take care not to drop the glass scratch the glass surface.




3. Disconnect the cluster connector (A), then remove the cluster.





NOTE:
- Make sure the connector is plugged in properly.

AUDIO ASSEMBLE REPLACEMENT
1. Remove the center facia panel.

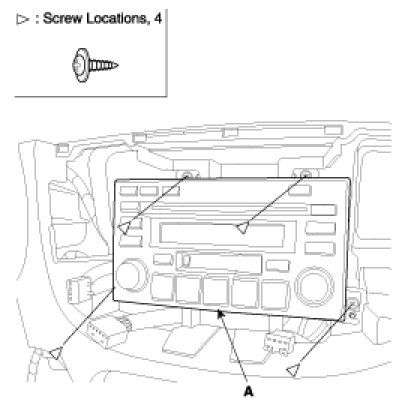

2. Loosen the screws.
3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).




4. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.

GLOVE REPLACEMENT

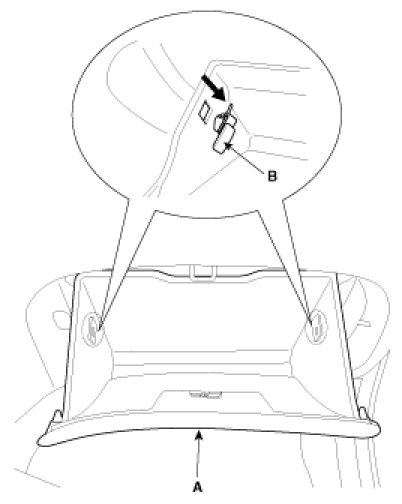

1. Disconnect the damper (B) from the glove box (A).




2. Remove the glove box(A).
3. Installation is the reverse of removal.

COVER REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

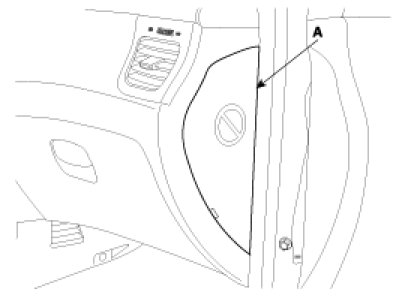

1. Remove the crash pad side cover(A).

Drive's





Passenger's





AIR VENT REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover.

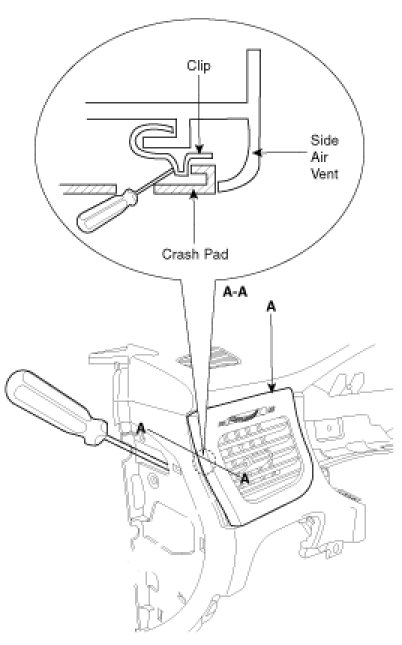

2. Using a screw driver remove the air vent(A).




3. Installation is the reverse of removal.

STEERING COLUMN SHROUD REPLACEMENT

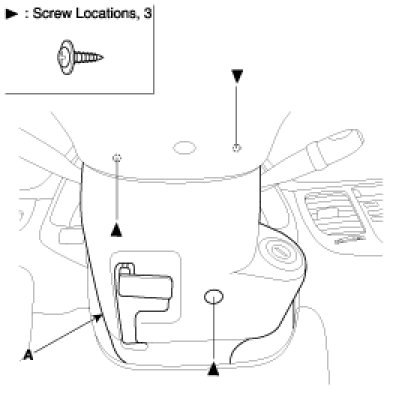

1. After loosening shroud mounting screw, remove the shroud(A).




2. Installation is the refer of removal.

CRASH PAD MAIN REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat assemble.
B. Cluster facia panel, cluster.
C. Lower crash pad.
D. Glove box.
E. Side cover.
F. Front pillar trim.
G. Center facia upper, lower cover.
H. Cowl side trim.

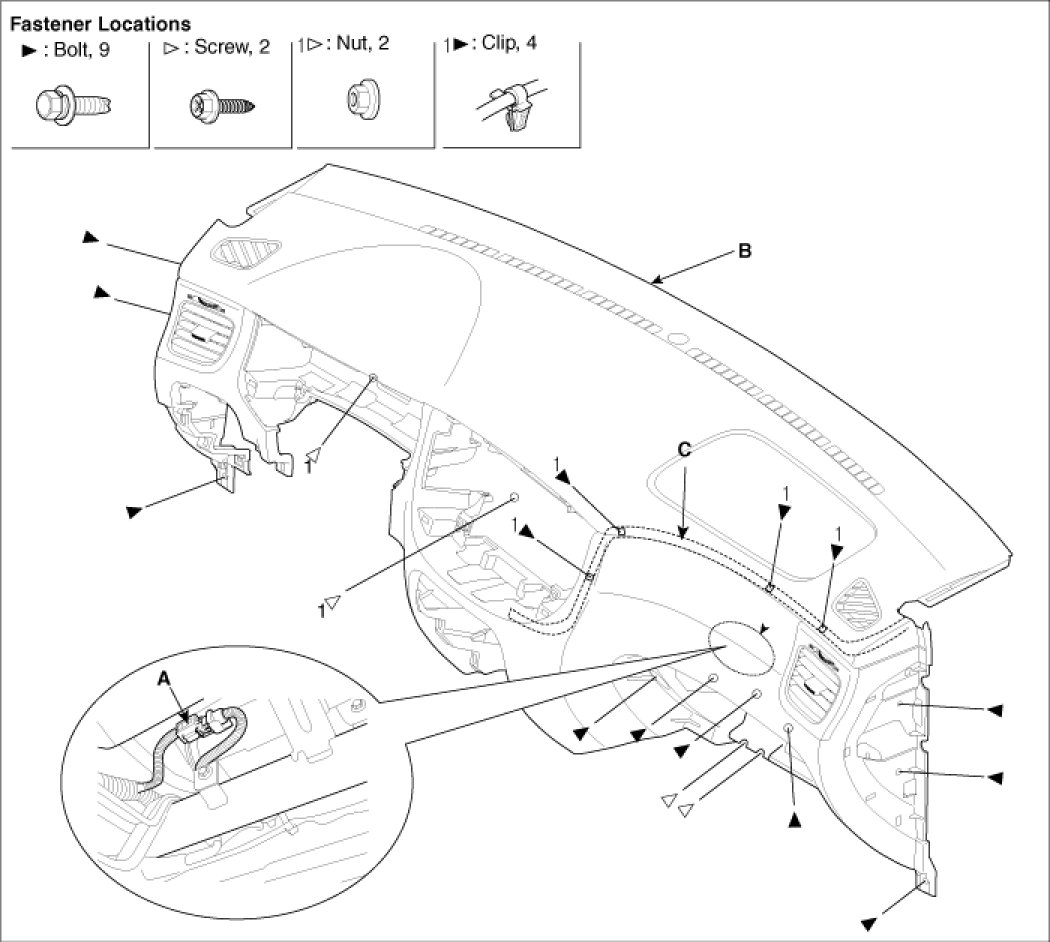

2. Disconnect the passenger's air bag connector(A).
3. Loosen the bolt`s and nuts then remove the main crash pad assemble(B).
4. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits on to the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.





COWL CROSS BAR ASSEMBLE REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad.

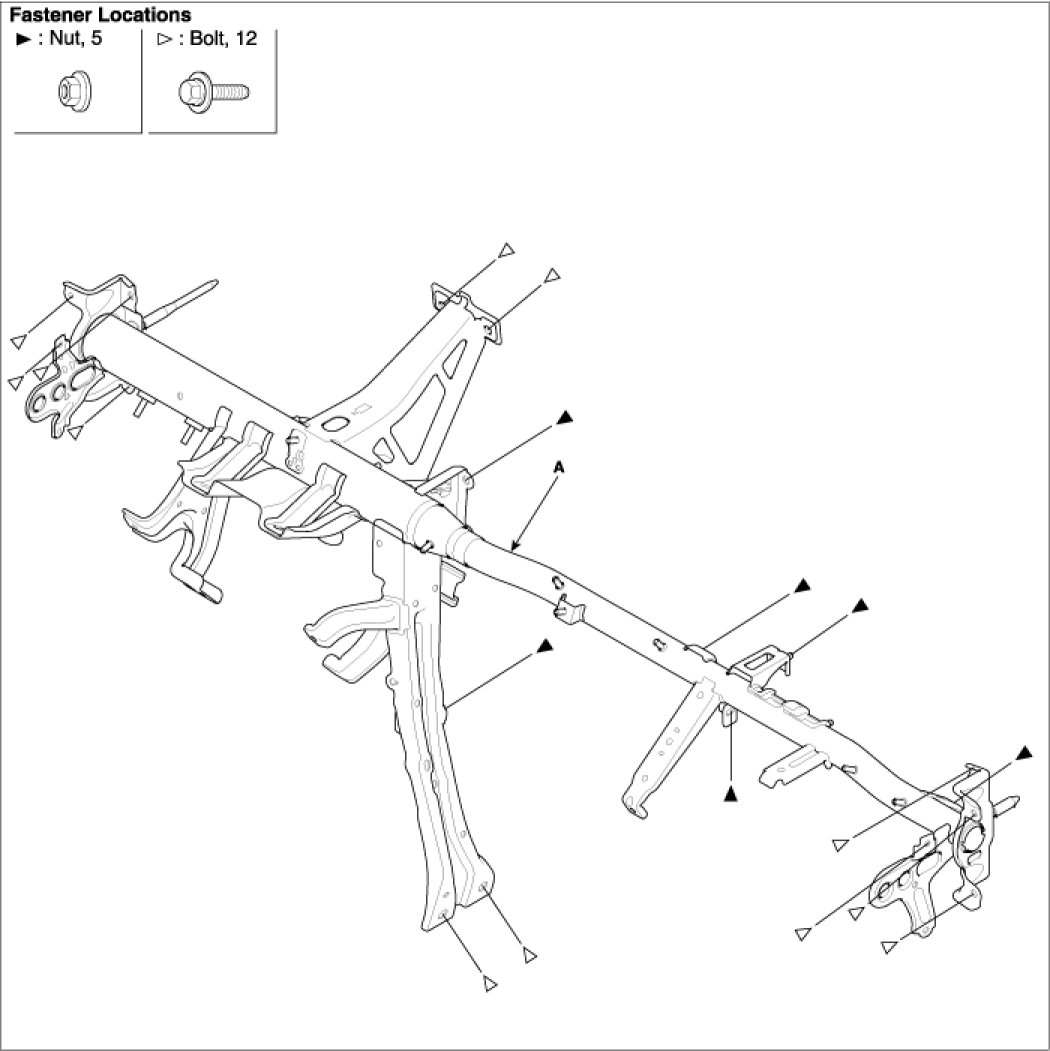

2. Disconnect the connectors, after loosening the mounting bolts and nuts remove the cowl crossbar(A).
3. Installation is the reverse of removal.
