Repair Procedures

Replacement

1. Disconnect the negative(-) battery terminal.

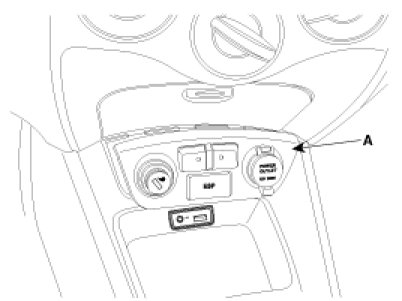

2. After removing the console switch assembly(A), disconnect the connector.




3. Remove the console upper cover(A).




4. Remove the multimedia jack from the console upper cover after disconnecting the jack connector and loosening 2 screws.
5. Installation is the reverse of removal.
