General Information

P2226 Barometric Pressure Circuit

General Information

General Description

A barometric pressure sensor is installed within the ECM to permit altitude corrections to be applied to fuel injection quantity calculations.

DTC Description

If the change of ambient pressure value is over 50 hPa during 20 sec or more, PCU sets DTC P2226.

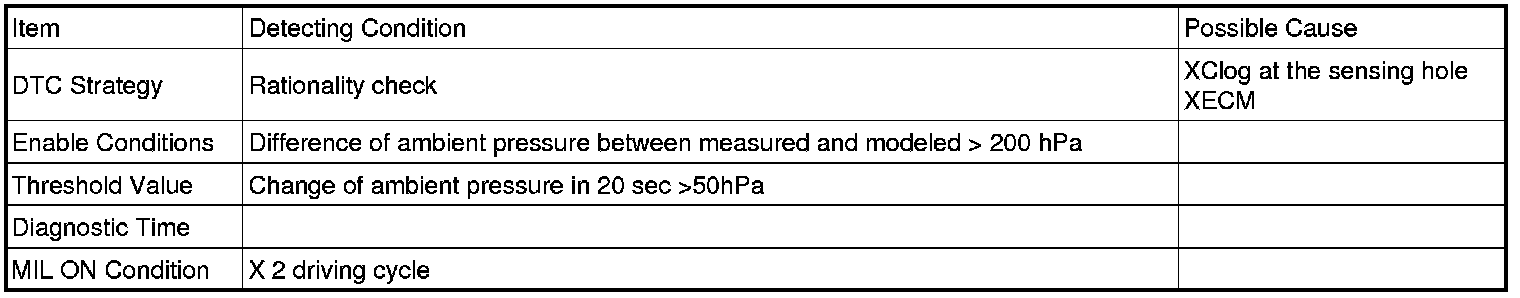

DTC Detecting Condition
