General Information

P2178 System Too Rich Off Idle

General Information

General Description

The catalyst's efficiency is demonstrated by its ability to oxidize CO and hydrocarbon emissions. The Powertrain Control Module (PCM) compares the output signals of the front and rear oxygen sensors to determine whether the output of the rear sensor is beginning to match the output of the front oxygen sensor. Air/fuel mixture compensation keeps the frequency of the front oxygen sensor high due to the changes from rich-to-lean combustion. The catalyst causes the rear oxygen sensor to have a lower frequency. As the catalyst wears, the rear oxygen sensor's signal trace begins to match the front oxygen sensor's signal trace. That is because the catalyst becomes saturated with oxygen and cannot use the oxygen to convert hydrocarbon and CO into H2O and CO2 with the same efficiency as when it was new. A completely worn catalyst shows a 100% match between the frequency of the front and rear sensors.

DTC Description

ECM detects system too rich under part load, PCM sets DTC P2178.
(This code may occur with P0172 together. These two codes are caused by same reason. So, these have same trouble shooting procedures.)

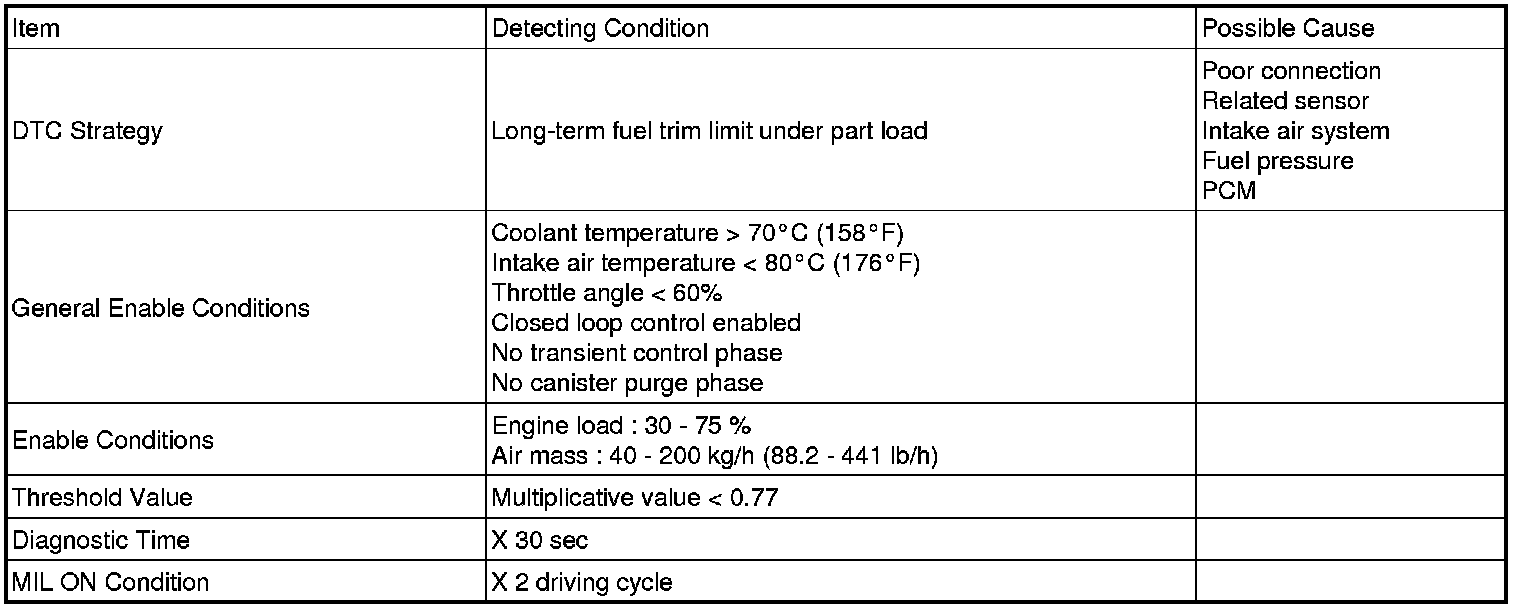

DTC Detecting Condition
